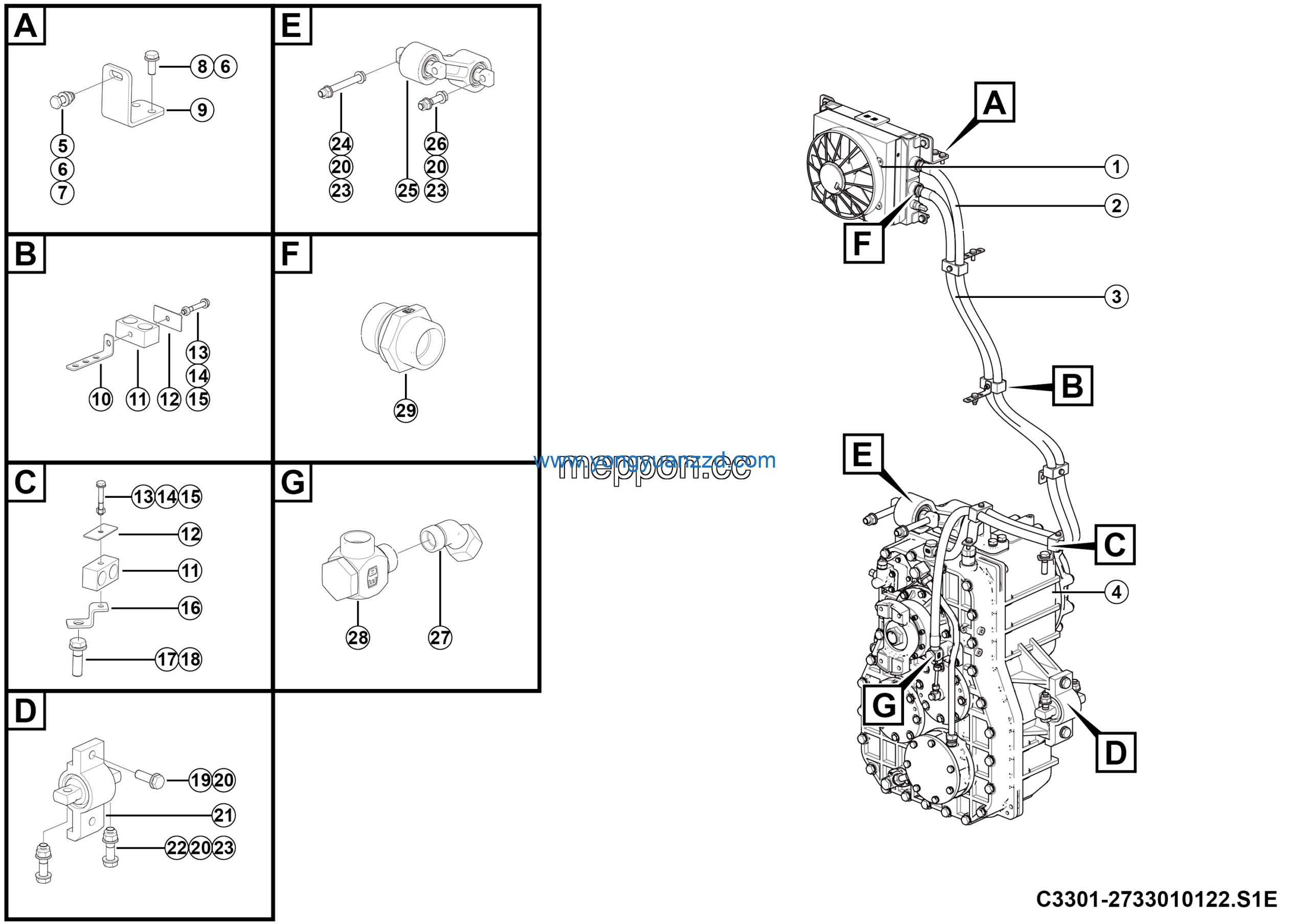

LGMG AT40 2025 – Transfer case assy – C3301-2733010122.S1E
Category: 2025 > AT40 > A0400W3M0A112
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Holder | 27200147051 | 2 |
| 2 | Double-pipe clamp TTPG-325.4 | 4120704036 | 4 |
| 3 | Pipe clamp cover plate 64*30*2 | 27090108151 | 4 |
| 4 | Bolt GB5782-M8*55flZnyc-8.8-480 | 4011010919 | 4 |
| 5 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 4 |
| 6 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 4 |
| 7 | Oil hose bracket 70*34*30 | 27330101231 | 2 |
| 8 | Bolt GB5783-M16*55flZnyc-10.9-480 | 4011010865 | 1 |
| 9 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 1 |
| 10 | Bolt GB5786-M18*1.5*55-12.9 | 4011010739 | 4 |
| 11 | Radiator m9117269 | 4110707662 | 1 |
| 12 | Washer GB97.1-18flZnyc-300HV-480 | 4015010333 | 20 |
| 13 | Transfer box side damping block | 4110706282 | 2 |
| 14 | Bolt GB5785-M18*1.5*75flZnyc-12.9-480 | 4011010571 | 4 |
| 15 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 8 |
| 16 | Bolt gb5785-m18*1.5*160flznyc-12.9-480 | 4011011712 | 2 |
| 17 | Upr shock absorber l213.7b124h102 | 4110707564 | 1 |
| 18 | Bolt GB5785-M18*1.5*85flZnyc-12.9-480 | 4011010505 | 2 |
| 19 | Combination joint LGB143-12616 | 4041001417 | 1 |
| 20 | Joint wh18lmomdcf | 4110707159 | 2 |
| 21 | Joint ge18lr3/4edomdc | 4120714357 | 2 |
| 22 | Hose f481caca181810-2400 | 4110707657 | 1 |
| 23 | Hose f481caca181810-2500 | 4110707658 | 1 |
| 24 | Transfer case assy hcf2300 | 4110707512 | 1 |
| 25 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 2 |
| 26 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 12 |
| 27 | Nut GB889.1-M10flznyc-8 | 4013010296 | 3 |
| 28 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 8 |
| 29 | Radiator bracket 80*80*50 | 27330101252 | 2 |
