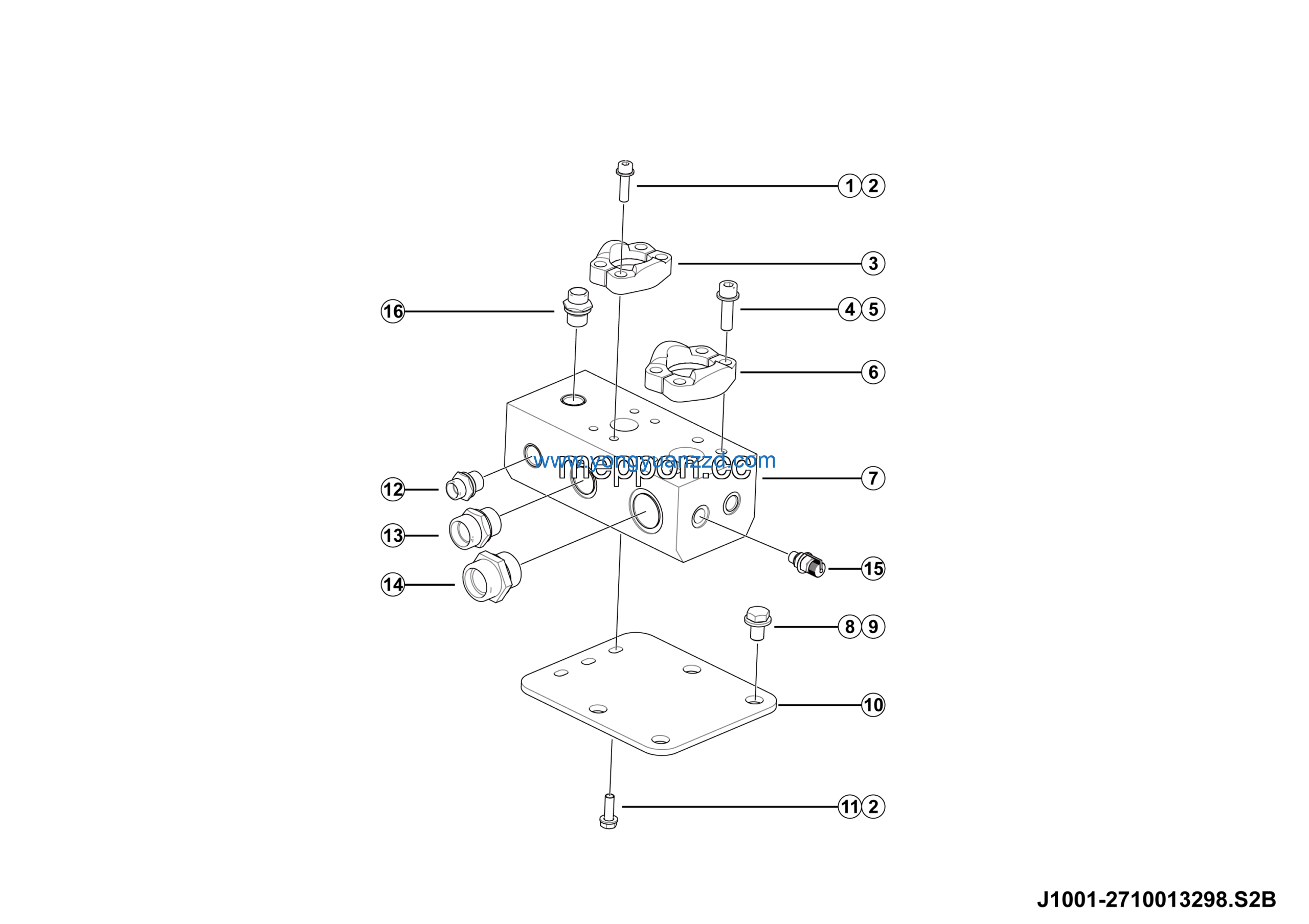

LGMG AT40 2025 – Valve block assy – J1001-2710013298.S2B
Category: 2025 > AT40 > A0400W3M0A110
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate 190*160*6 | 27100138911 | 1 |
| 2 | Bolt GB5783-M8*25flznyc-8.8-480 | 4011010743 | 3 |
| 3 | Joint 1CM-18WD | 4120702886 | 2 |
| 4 | Straight joint GE22LREDOMDCF | 4120705620 | 2 |
| 5 | Straight joint GE28LMEDOMDCF | 4120708936 | 2 |
| 6 | Pressure measuring joint EMA3/1/4ED | 4120001227 | 1 |
| 7 | Straight joint ge10lm18x1.5edomdcf | 4120716273 | 1 |
| 8 | Screw GB70.1-M8*30flZnyc-8.8-480 | 4014010179 | 4 |
| 9 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 7 |
| 10 | Split flange LGB117-310491 | 4041000026 | 1 |
| 11 | Screw GB70.1-M10*35flZnyc-10.9-480 | 4014010288 | 4 |
| 12 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 4 |
| 13 | Split flange LGB117-312551 | 4041000027 | 1 |
| 14 | Valve block | 27100132972 | 1 |
| 15 | Screw GB70.1-M12*30flZnyc-10.9-480 | 4014010475 | 4 |
| 16 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 4 |
