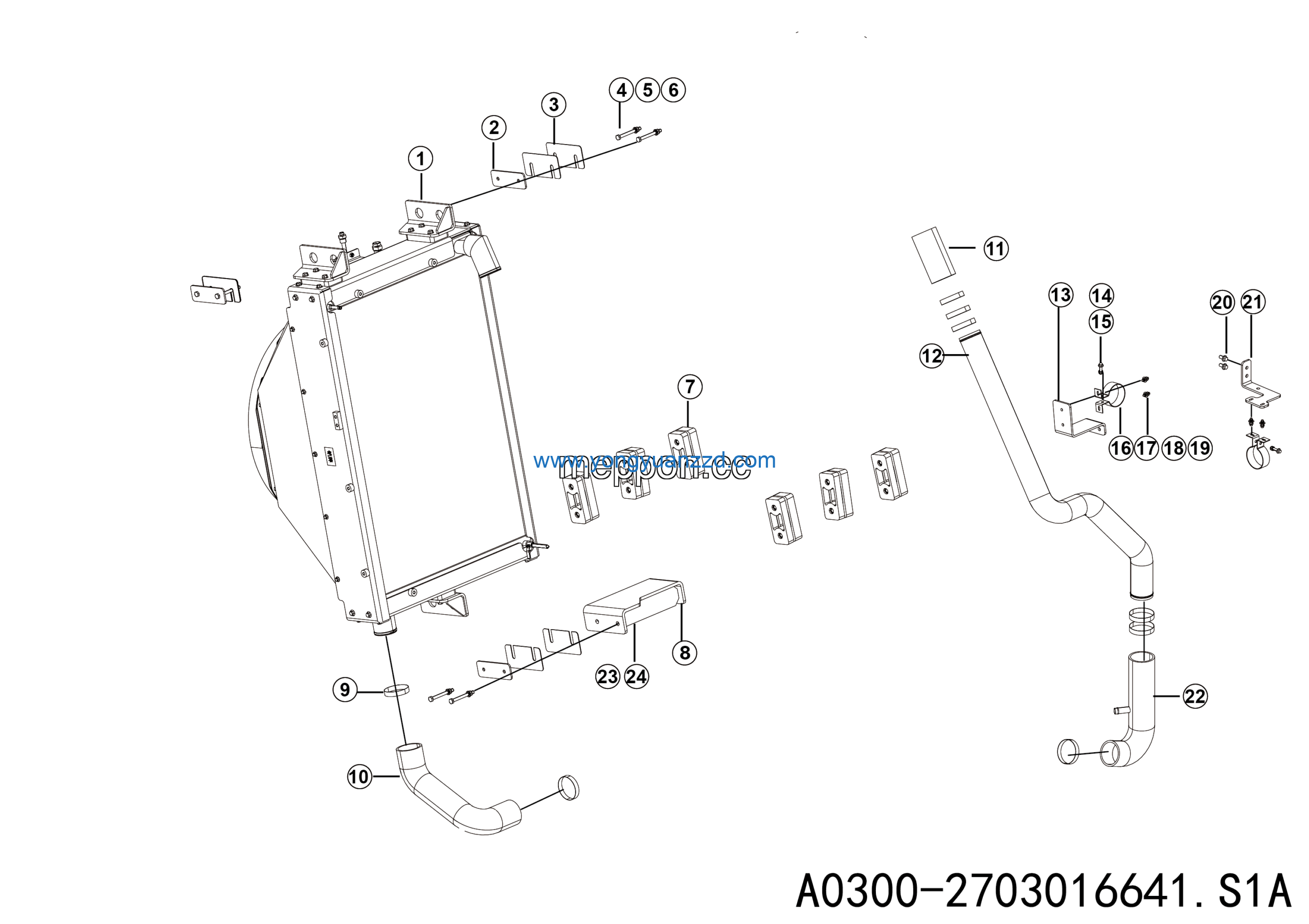

LGMG AT40 2025 – Water radiator assy – A0300-2703016641.S1A
Category: 2025 > AT40 > A0400W3M0A106
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Engine water outlet hose 87*6 | 27030166471 | 1 |
| 2 | Hose 87*6*170 | 27030166421 | 1 |
| 3 | Engine water inlet pipe 75*1.5 | 27030166491 | 1 |
| 4 | Bracket 160*157*80 | 27030166501 | 1 |
| 5 | Bolt GB16674.1-M8*35flZnyc-10.9-480 | 4011011069 | 2 |
| 6 | Nut GB6185.1-M8flZnyc-10-480 | 4013010378 | 2 |
| 7 | Pipe clamp | 27030106201 | 2 |
| 8 | Bolt GB16674-M6*20flznyc-8.8 | 4011010757 | 4 |
| 9 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 10 | Nut GB6185.1-M6flZnyc-8-480 | 4013010414 | 4 |
| 11 | Radiator assembly – m9116446 | 4110707558 | 1 |
| 12 | Bolt GB16674.1-M10*20flZnyc-10.9-480 | 4011011580 | 4 |
| 13 | Bracket 173*115*90 | 27030166511 | 1 |
| 14 | Engine water inlet hose 87*6 | 27030166481 | 1 |
| 15 | Bolt GB5783-M12*25flZnyc-10.9-480 | 4011011440 | 4 |
| 16 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 4 |
| 17 | Plate | 27030109021 | 3 |
| 18 | Shim 170*80*2 | 27030166431 | 6 |
| 19 | Bolt GB5782-M10*100flZnyc-12.9-480 | 4011011722 | 6 |
| 20 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 6 |
| 21 | Nut GB6185.1-M10flZnyc-12-480 | 4013010566 | 6 |
| 22 | Radiator shock absorber assy | 4110001445 | 3 |
| 23 | Radiator bracket wldmt | 27030166442 | 1 |
| 24 | Butterfly spring clamp φ70-φ92 | 4190708164 | 10 |
