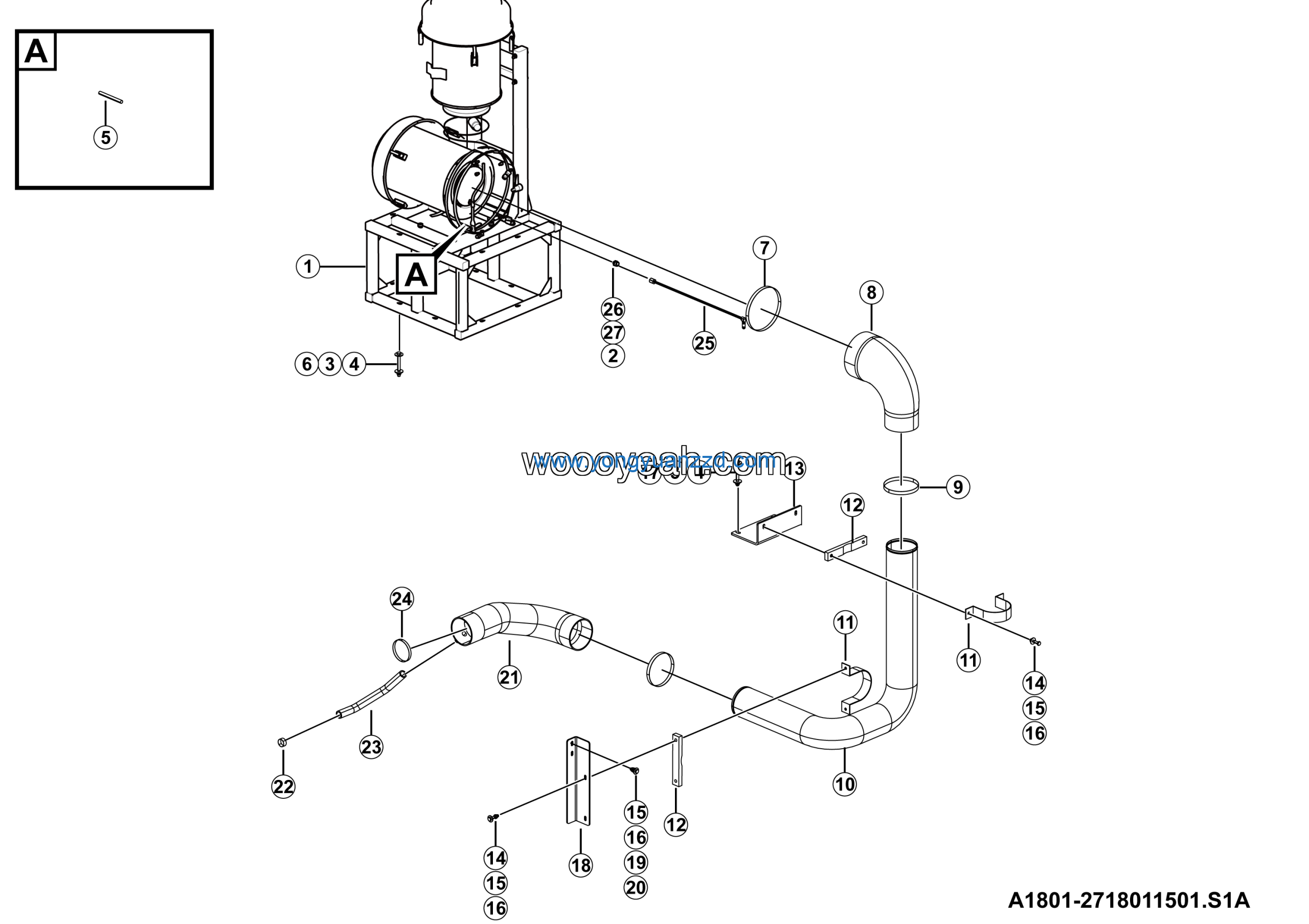

LGMG CMT106 2025 – Air filter installation – A1801-2718011501.S1A
Category: 2025 > CMT106 > C1060W3E0A032
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Air intake pipe 141*1.5 | 27180114621 | 1 |
| 2 | Clamp | 27180102911 | 2 |
| 3 | PLATE | 27180104241 | 2 |
| 4 | Pipe support welding | 27180111361 | 1 |
| 5 | Bolt GB5782-M10*50flZnyc-8.8-480 | 4011010732 | 4 |
| 6 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 6 |
| 7 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 6 |
| 8 | Bolt GB5782-M12*115flZnyc-10.9-480 | 4011011064 | 2 |
| 9 | PLATE | 27180104681 | 1 |
| 10 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 2 |
| 11 | Maintenance-free air filter assy k160112 | 4190713369 | 1 |
| 12 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 2 |
| 13 | Pipe | 27180106921 | 1 |
| 14 | Butterfly spring clamp φ25-φ45 | 4190708159 | 2 |
| 15 | Air compressor air intake hose 35*5 | 27180114221 | 1 |
| 16 | Butterfly spring clamp φ121-φ143 | 4190708168 | 1 |
| 17 | Air filter air hose φ6*1 | 27100142441 | 1 |
| 18 | Nut seat NG8 | 4120000194 | 1 |
| 19 | Clip spring NG8 | 4120000196 | 1 |
| 20 | Elastic element NG8 | 4120000197 | 1 |
| 21 | Washer GB96.1-12flZnyc-300HV-480 | 4015010286 | 16 |
| 22 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 8 |
| 23 | Wire | 27200108491 | 1 |
| 24 | Bolt GB5782-M12*110flZnyc-10.9-480 | 4011011112 | 6 |
| 25 | Butterfly spring clamp φ197-φ219 | 4190708174 | 1 |
| 26 | Air outlet hose 215*6 | 27180114201 | 1 |
| 27 | Butterfly spring clamp φ146-φ168 | 4190708170 | 2 |
