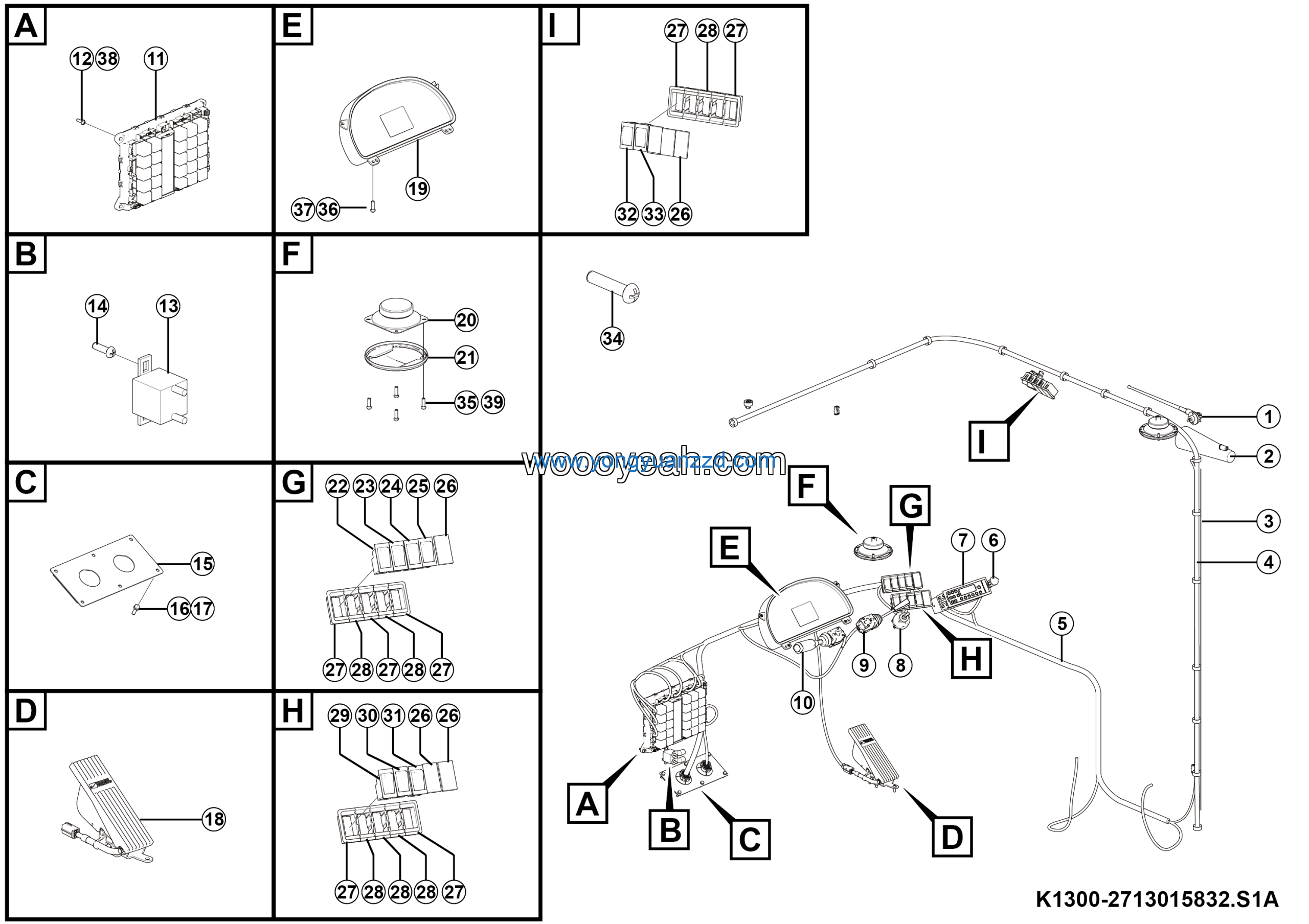

LGMG CMT106 2025 – Cab elec sys – K1300-2713015832.S1A
Category: 2025 > CMT106 > C1060Y3E0A102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Combination switch CS-102621 | 4130001174 | 1 |
| 2 | Elec box KZH-24V-002A | 4130705742 | 1 |
| 3 | Self-assembled standard parts assembly | 27130121631 | 1 |
| 4 | Contactor | 4130701341 | 1 |
| 5 | Screw GB818-M6*20EpZn-4.8 | 4014000040 | 12 |
| 6 | Itt connector harness pass-through plate | 27130153381 | 1 |
| 7 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 6 |
| 8 | Washer GB97.1-6EpZn-300HV | 4015000207 | 6 |
| 9 | ELEK accelerator pedal 403269 | 4130701363 | 1 |
| 10 | LCD instrument panel 4660 | 4130704660 | 1 |
| 11 | Telescopic antenna JS3480 | 4130000826 | 1 |
| 12 | Speaker GS1033 | 4130001111 | 2 |
| 13 | Net cover TH103X0307 | 4130000301 | 2 |
| 14 | Work/position light rocker switch JK939C | 4130000318 | 1 |
| 15 | FR fog lamp rocker switch JK939C | 4130000314 | 1 |
| 16 | Central alarm rocker switch JK939C | 4130000320 | 1 |
| 17 | RR working lamp rocker switch JK939C | 4130000480 | 1 |
| 18 | Cover plate | 4130000328 | 6 |
| 19 | Side single Frame JK931-01CKJ | 4130000463 | 6 |
| 20 | Mid single frame JK931-01ZKJ | 4130000467 | 9 |
| 21 | Rocker switch JK939C（Differential） | 4130000317 | 1 |
| 22 | Dual tone air horn 379803022309 | 4130000386 | 1 |
| 23 | Wiper washing rocker switch JK939C | 4130000819 | 1 |
| 24 | Side window wiper rocker switch JK939C | 4130000341 | 1 |
| 25 | Wiper washing rocker switch JK939C | 4130001238 | 1 |
| 26 | Warning ceiling lamp rocker switchJK939C | 4130000667 | 1 |
| 27 | Screw GB818-M4*20EpZn-4.8 | 4014000022 | 2 |
| 28 | Bolt GB16674.1-M8*16EpZn-8.8 | 4011000461 | 4 |
| 29 | Screw GB846-ST4.8*16-C-H | 4014000071 | 2 |
| 30 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 31 | Washer GB96.1-6EpZn-300HV | 4015000198 | 5 |
| 32 | Washer GB96.1-4EpZn-300HV | 4015000302 | 4 |
| 33 | Pipe | 27110104052 | 1 |
| 34 | Ceiling harness | 27130158351 | 1 |
| 35 | Cab harness | 27130158333 | 1 |
| 36 | Socket 125000222 | 4130712756 | 1 |
| 37 | Bluetooth radio SL-630 | 4130705152 | 1 |
| 38 | Lgnition lock CS-108255 | 4130705464 | 1 |
| 39 | Exhaust brake switch | 4130000701 | 1 |
