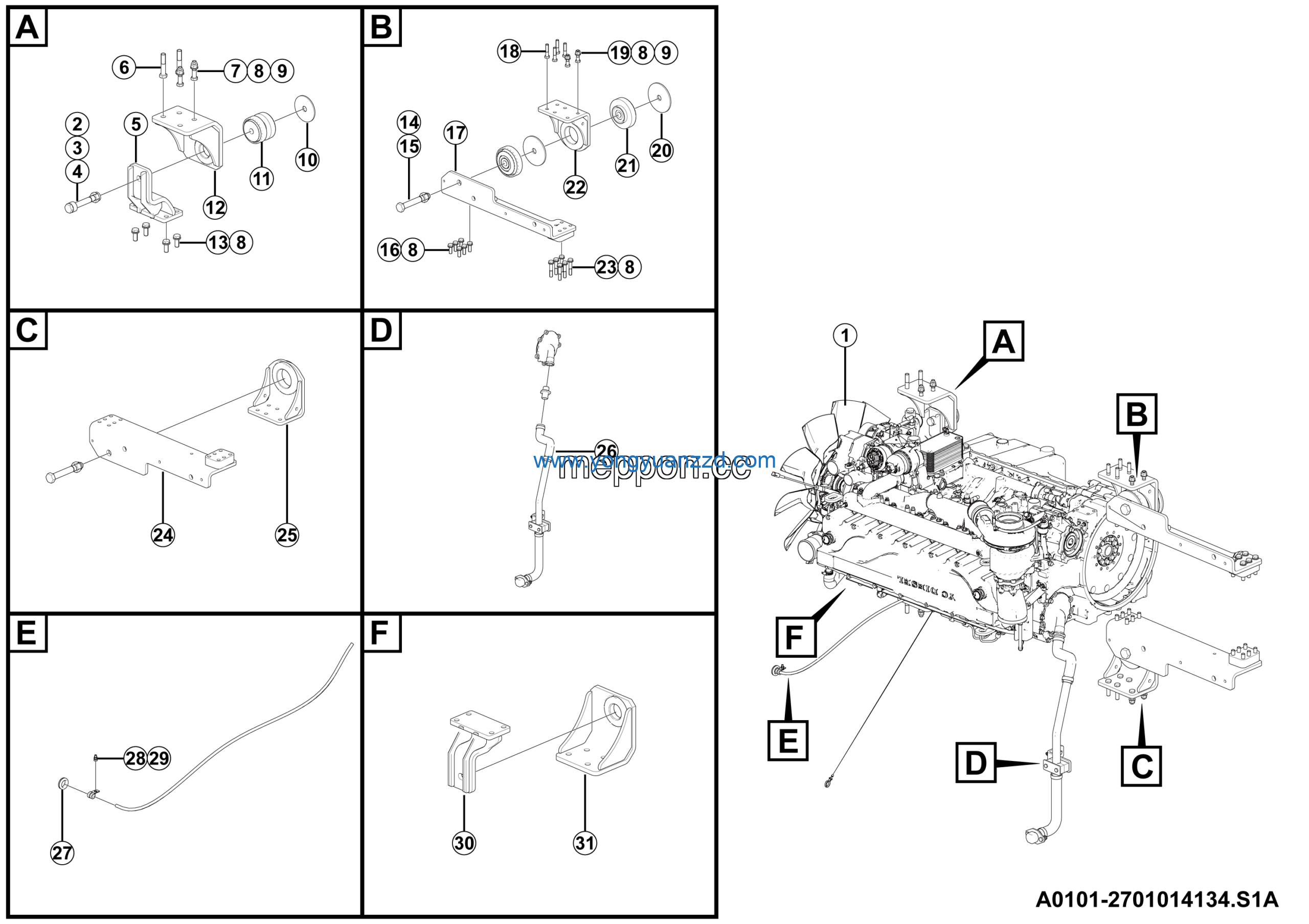

LGMG CMT106 2025 – Engine installation – A0101-2701014134.S1A
Category: 2025 > CMT106 > C1060Y3E0A103
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Front rubber baes plate | 27010115971 | 2 |
| 2 | FR mounted shock absorber | 4110702313 | 4 |
| 3 | Rh fr mounting wldmt | 27010140881 | 1 |
| 4 | Bolt GB5783-M16*40flZnyc-12.9-480 | 4011010676 | 8 |
| 5 | Bolt gb5782-m30*210flznyc-10.9-480 | 4011011602 | 2 |
| 6 | Nut GB889.1-M30flZnyc-10-480 | 4013010373 | 2 |
| 7 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 12 |
| 8 | Rh rear bracket wldmt | 27010141411 | 1 |
| 9 | Bolt GB5782-M16*70EpZn-8.8 | 4011000231 | 8 |
| 10 | Bolt GB5782-M16*60flZnyc-12.9-480 | 4011010623 | 4 |
| 11 | Engine assy yck16765-t300(at-580) | 4110708614 | 1 |
| 12 | Shock absorber 170*8 | 27010138331 | 4 |
| 13 | Shock absorber mds170-55 (10189-01) | 4110707594 | 4 |
| 14 | Rh rear mounting wldmt | 27010141371 | 1 |
| 15 | BOLT GB5782-M16*85flZnyc-12.9-480 | 4011010545 | 12 |
| 16 | Lh rear bracket wldmt | 27010141391 | 1 |
| 17 | Lh rear mounting wldmt | 27010141351 | 1 |
| 18 | Oil filling line installation | 27010141431 | 1 |
| 19 | Sheath LGB313-6*32 | 4043001111 | 1 |
| 20 | Bolt GB5783-M8*20flznyc-8.8-480 | 4011010711 | 1 |
| 21 | Nut GB6185.1-M8flZnyc-8-480 | 4013010314 | 1 |
| 22 | BOLT GB5782-M22*180flZnyc-12.9-480 | 4011011124 | 2 |
| 23 | Left front leg weldment | 27010135532 | 1 |
| 24 | Lh fr mounting wldmt | 27010140861 | 1 |
| 25 | Bomp | 27010111571 | 2 |
| 26 | Nut GB6185.1-M22flZnyc-12-480 | 4013010282 | 2 |
| 27 | Right front leg weldment | 27010135542 | 1 |
| 28 | Bolt GB5785-M18*1.5*90flZnyc-12.9-480 | 4011010496 | 4 |
| 29 | Bolt GB5782-M16*70flZnyc-12.9-480 | 4011010615 | 4 |
| 30 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 40 |
| 31 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 8 |
