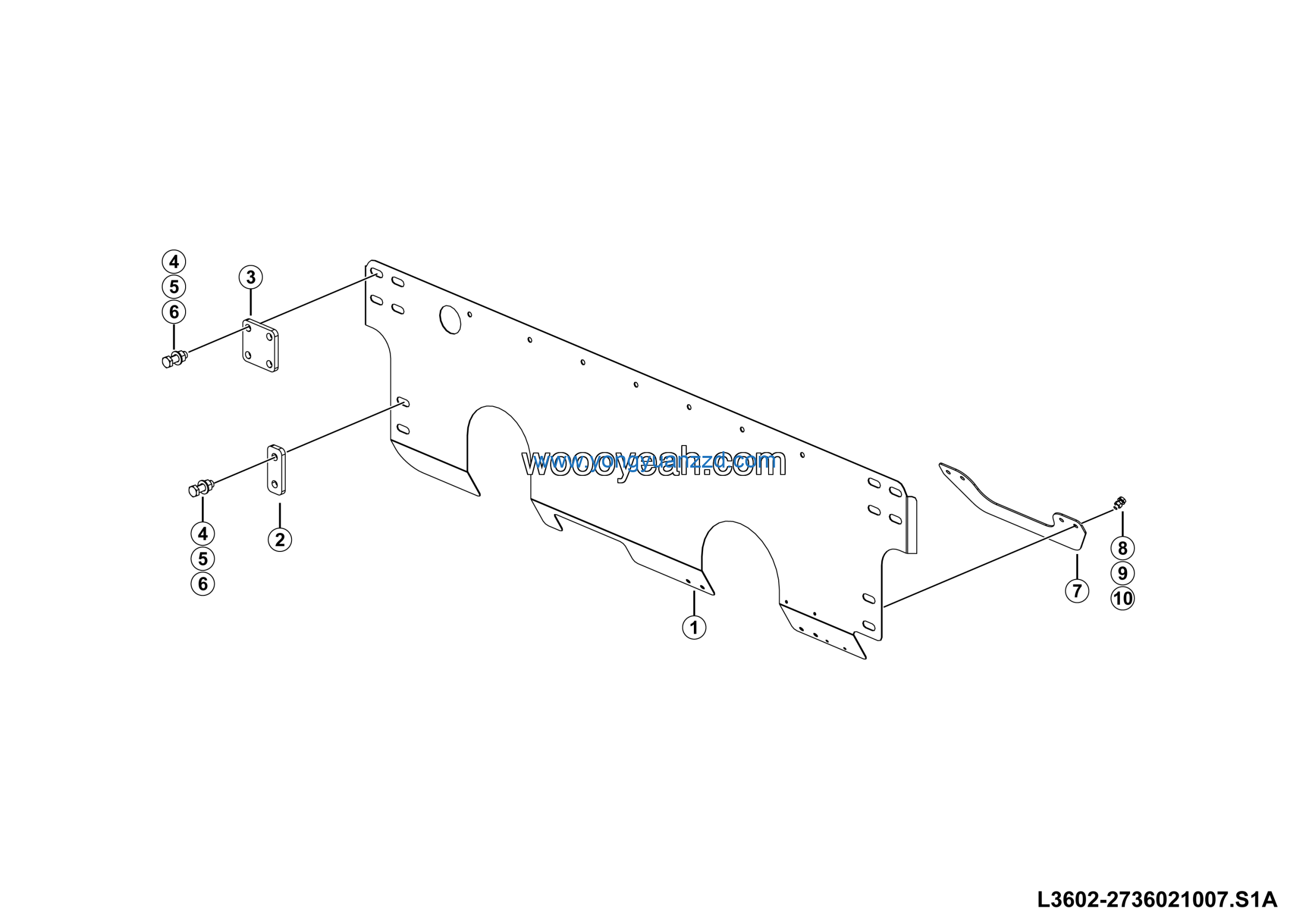

LGMG CMT106 2025 – Engine rr baffle assy (opt) – L3602-2736021007.S1A
Category: 2025 > CMT106 > C1060W3E0A031
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 2 | Rr guard | 27360210261 | 1 |
| 3 | Support plate 100*40*10 | 27360195891 | 2 |
| 4 | Spacer 90*90*10 | 27360191801 | 2 |
| 5 | Bolt GB5783-M14*45EpZn-8.8 | 4011000203 | 12 |
| 6 | Washer GB97.1-14EpZn-300HV | 4015000177 | 12 |
| 7 | Nut GB6170-M14EpZn-8 | 4013000013 | 12 |
| 8 | Stiffening plate 360*80*3 | 27360195881 | 1 |
| 9 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 4 |
| 10 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
