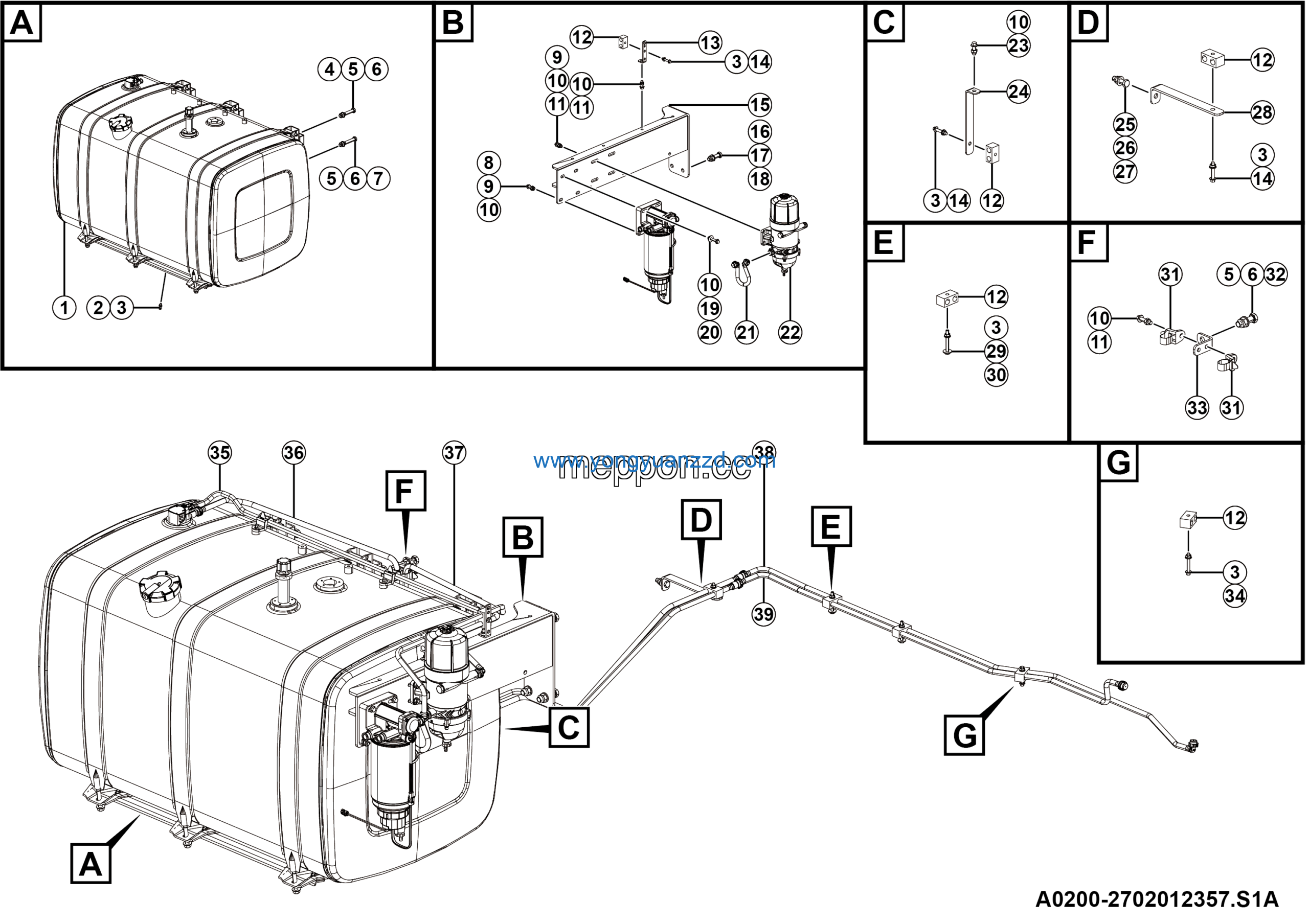

LGMG CMT106 2025 – Fuel tank assy – A0200-2702012357.S1A
Category: 2025 > CMT106 > C1060Y3E0A104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 12 |
| 2 | Bolt GB16674.1-M10*40EpZn-8.8 | 4011000163 | 5 |
| 3 | Double-pipe clamp TTPG16-216 | 4120712564 | 7 |
| 4 | Plate | 27010113352 | 2 |
| 5 | Bolt GB16674.1-M8*45flZnyc-8.8-480 | 4011011058 | 4 |
| 6 | Fuel filter bracket wldmt | 27020123581 | 1 |
| 7 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 4 |
| 8 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 4 |
| 9 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 4 |
| 10 | Bolt GB16674.1-M10*55EpZn-8.8 | 4011000473 | 2 |
| 11 | 630l single-chamber fuel tank assy | 27020121181 | 1 |
| 12 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 13 | Quick connect fuel pipe 16*2*236 | 27020123611 | 1 |
| 14 | Coarse filter 1650d0-1105400-sw2 | 4110710403 | 1 |
| 15 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 3 |
| 16 | Bracket 220*30*30 | 27020117871 | 1 |
| 17 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 1 |
| 18 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 19 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 1 |
| 20 | Bracket 240*50*30 | 27020117861 | 1 |
| 21 | Bolt GB5783-M8*65flZnyc-8.8-480 | 4011010718 | 2 |
| 22 | Bolt GB16674.1-M8*25flZnyc-8.8-480 | 4011010994 | 5 |
| 23 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 2 |
| 24 | Cable tie 14400342 | 4130703098 | 4 |
| 25 | Bolt GB5783-M16*55EpZn-10.9 | 4011000562 | 1 |
| 26 | Plate | 27020110001 | 1 |
| 27 | Bolt GB16674.1-M8*55flZnyc-8.8-480 | 4011011111 | 1 |
| 28 | Quick connect fuel pipe 16*2*1687 | 27020123601 | 1 |
| 29 | Quick-connect fuel pipe 16*2*2836 | 27020118431 | 1 |
| 30 | Quick-connect fuel pipe 16*2*3208 | 27020118421 | 1 |
| 31 | Quick-connect fuel pipe 16*2*1950 | 27020118441 | 1 |
| 32 | Quick-connect fuel pipe 16*2*1661 | 27020118451 | 1 |
| 33 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 10 |
| 34 | Bolt GB5782-M16*100EpZn-10.9 | 4011000577 | 3 |
| 35 | Washer GB97.1-16EpZn-300HV | 4015000181 | 7 |
| 36 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 7 |
| 37 | Bolt GB5782-M16*110EpZn-10.9 | 4011000730 | 3 |
| 38 | Bolt GB16674.1-M10*35EpZn-8.8 | 4011000164 | 2 |
| 39 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
