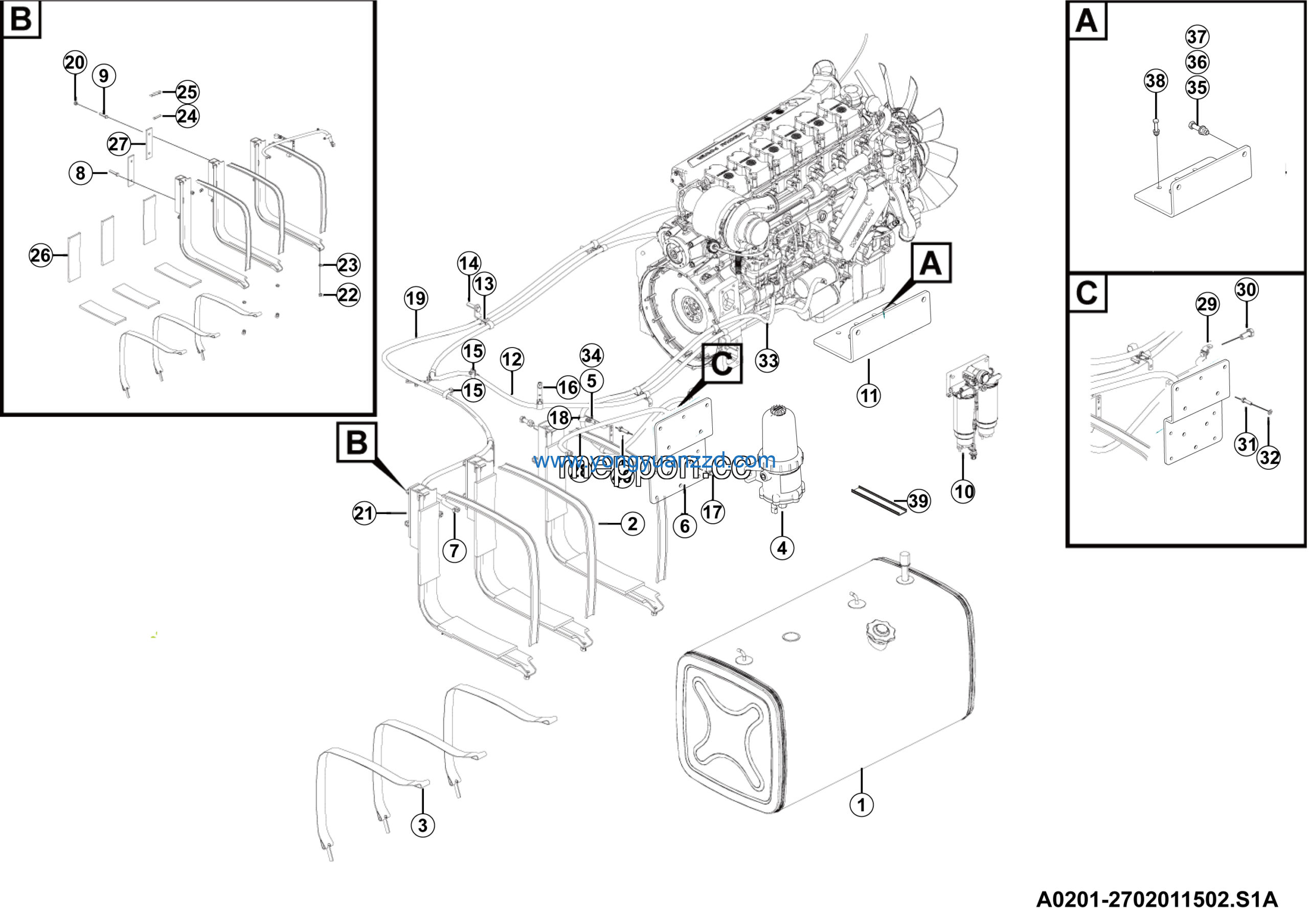

LGMG CMT106 2025 – Fuel tank assy – A0201-2702011502.S1A
Category: 2025 > CMT106 > C1060W3E0A031
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Engine fuel filter | 4110702781 | 1 |
| 2 | Support | 27020104191 | 1 |
| 3 | Tube LZB103-14*5200-P | 4049010225-008 | 1 |
| 4 | Plate | 27020110001 | 3 |
| 5 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 3 |
| 6 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 7 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 23 |
| 8 | Bolt GB5786-M12*1.5*35EpZn-8.8 | 4011010010 | 3 |
| 9 | Cable tie HS-J117 | 4130704969 | 5 |
| 10 | pipe Ⅱ | 2702010484-001 | 1 |
| 11 | Iron fuel tank 530L LG02-RYX-04 | 4190707631 | 1 |
| 12 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
| 13 | Fuel tank bracket assy | 4110000118 | 3 |
| 14 | Nut GB6170-M16EpZn-8 | 4013000016 | 6 |
| 15 | Washer GB97.1-16EpZn-300HV | 4015000181 | 9 |
| 16 | Pin | 4110000120 | 3 |
| 17 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 3 |
| 18 | Flap | 4110000122 | 6 |
| 19 | Backing plate | 27020101971 | 2 |
| 20 | Fuel hose 22*4*1450 | 2702011193-001 | 1 |
| 21 | Cable tie 14400342 | 4130703098 | 10 |
| 22 | Flap | 4110000121 | 3 |
| 23 | Bolt GB5783-M10*35EpZn-10.9 | 4011000569 | 14 |
| 24 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 25 | Washer GB97.1-10EpZn-300HV | 4015000162 | 13 |
| 26 | Fuel hose 22*4*2600 | 2702011194-001 | 1 |
| 27 | Bolt GB16674.1-M10*40EpZn-8.8 | 4011000163 | 1 |
| 28 | Bolt GB5783-M12*55EpZn-8.8 | 4011000254 | 2 |
| 29 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 30 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 31 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 32 | String casing | 27140105021 | 3 |
| 33 | Cable tie assy | 4110000119 | 3 |
| 34 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 1 |
| 35 | Water separator-FH23029 | 4190709085 | 1 |
| 36 | Plate | 27010113352 | 8 |
| 37 | Welding of coarse filter support | 27020111731 | 1 |
| 38 | Hose clamp JB8870-D20 | 4017000010 | 6 |
| 39 | Bolt GB5782-M16*80EpZn-10.9 | 4011000438 | 2 |
| 40 | Bolt GB5782-M16*70EpZn-10.9 | 4011000824 | 4 |
