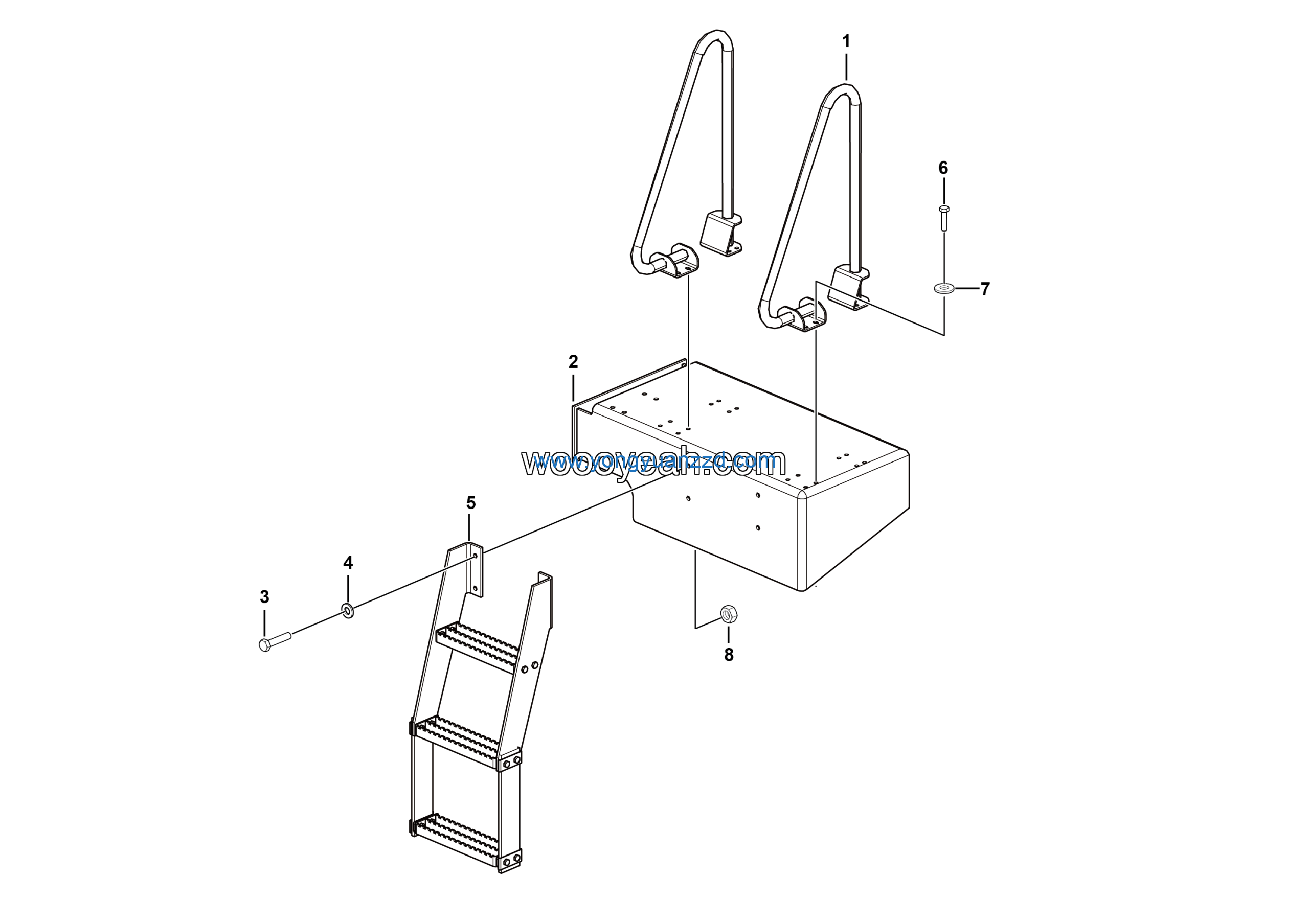

LGMG CMT106 2025 – Left pedal assy – L3600-2736014204
Category: 2025 > CMT106 > C1060W3E0A035
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27360135591 | 2 |
| 2 | Left pedal welding | 27360121571 | 1 |
| 3 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 4 |
| 4 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 5 | Boarding ladder assembly | 27360142031 | 1 |
| 6 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 16 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 8 | Nut GB6170-M10EpZn-8 | 4013000007 | 16 |
