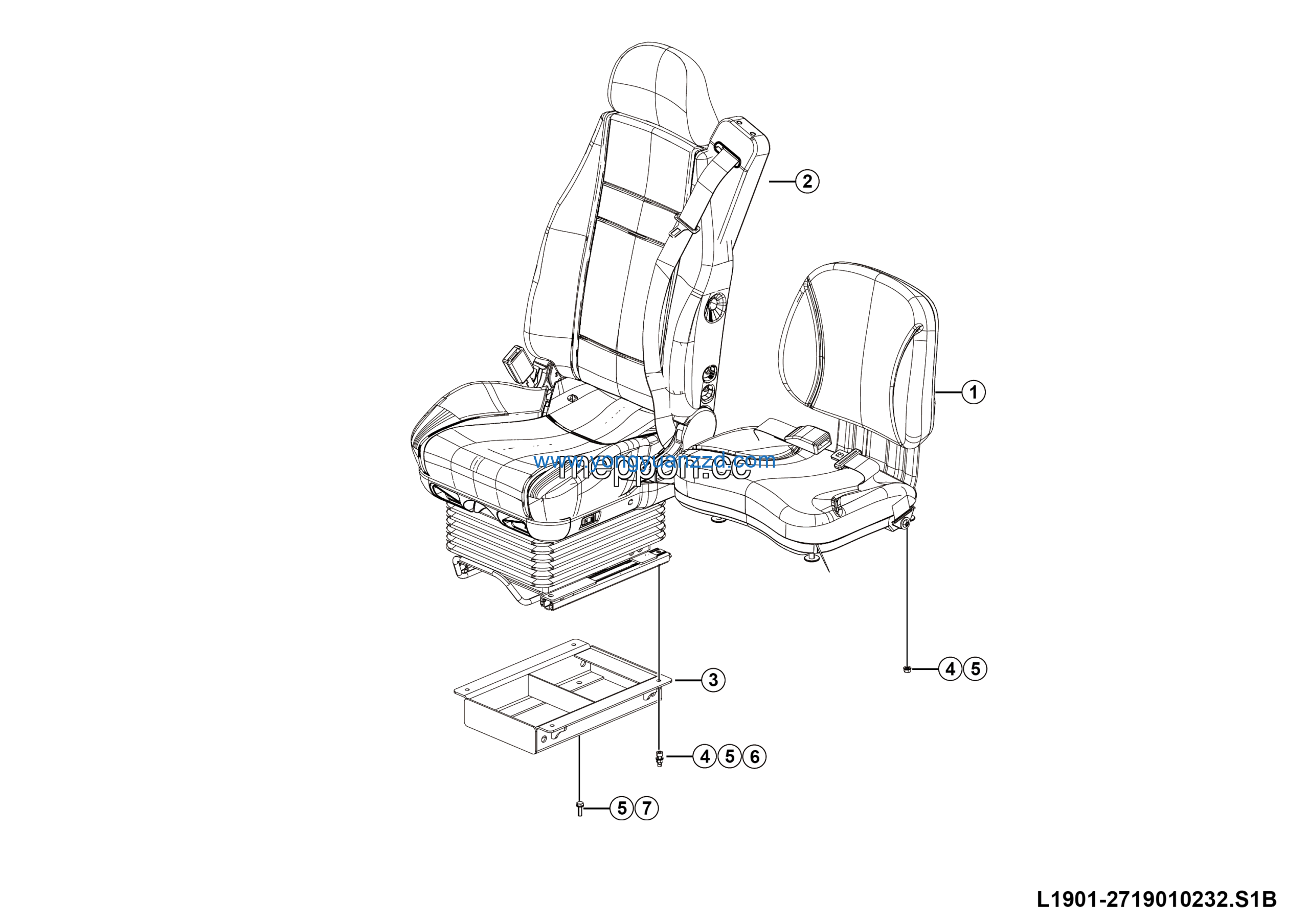

LGMG CMT106 2025 – Seat installation – L1901-2719010232.S1B
Category: 2025 > CMT106 > C1060Y3E0A101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat assembly | 27190101271 | 1 |
| 2 | Seat assy SGA22305 | 4190708195 | 1 |
| 3 | Driver seat bracket assy | 27190102381 | 1 |
| 4 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 8 |
| 5 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 12 |
| 6 | Screw GB70.1-M8*25flznyc-8.8-480 | 4011010908 | 4 |
| 7 | Bolt GB5783-M8*25flznyc-8.8-480 | 4011010743 | 4 |
