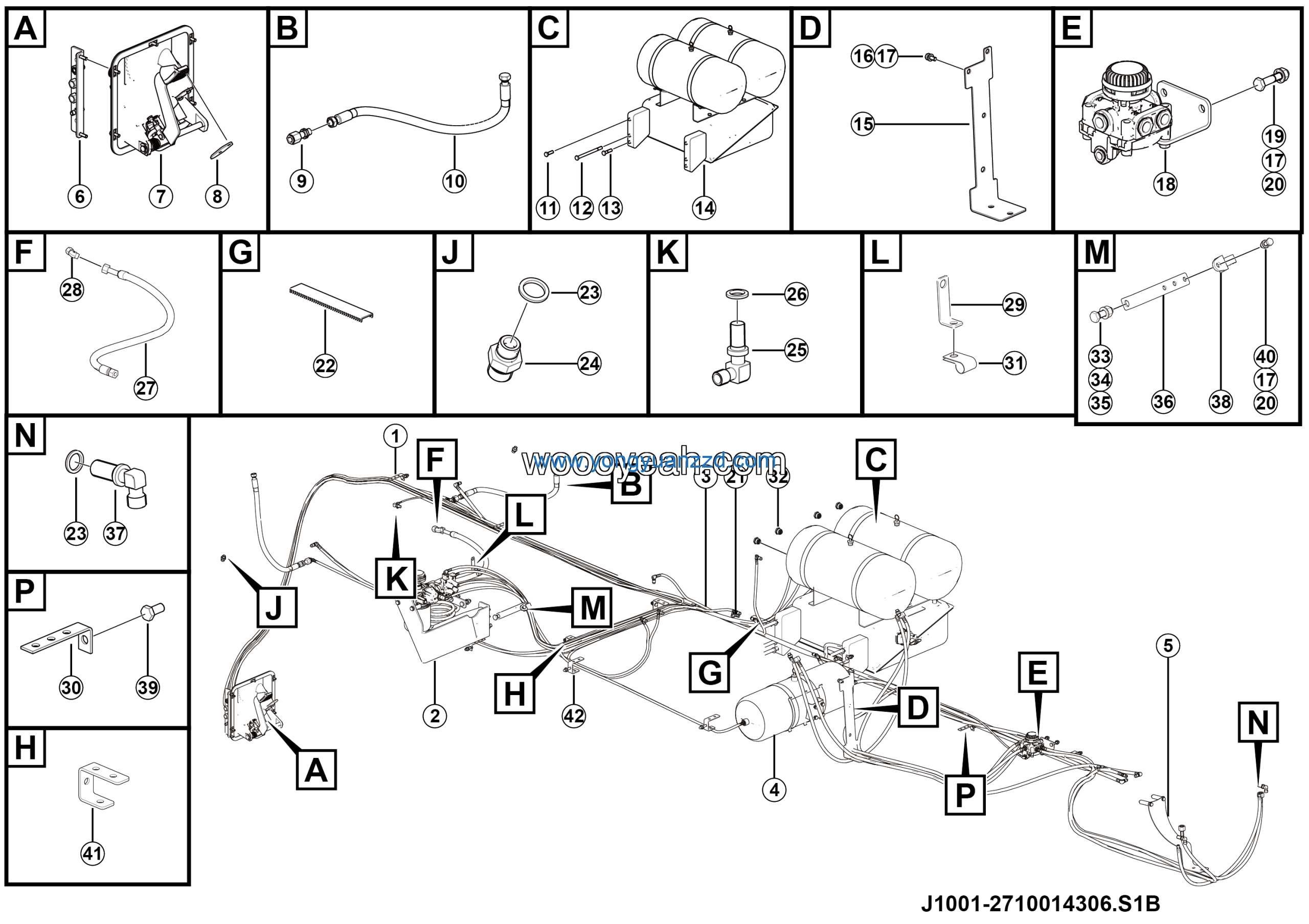

LGMG CMT106 2025 – Service brake assy – J1001-2710014306.S1B
Category: 2025 > CMT106 > C1060Y3E0A102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Relay valve installation assembly | 27100117441 | 1 |
| 2 | Bolt GB5782-M16*50EpZn-10.9 | 4011010149 | 3 |
| 3 | Bolt GB5782-M16*210EpZn-10.9 | 4011010370 | 2 |
| 4 | Bolt GB5782-M16*60EpZn-10.9 | 4011000607 | 1 |
| 5 | Battery box assy | 27100136261 | 1 |
| 6 | Pipe bracket | 27100107393 | 1 |
| 7 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 9 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 10 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 2 |
| 11 | Plate | 27100120611 | 6 |
| 12 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
| 13 | T-connector m14-npt1/8-m14 | 27100106991 | 2 |
| 14 | String casing | 27140105021 | 1 |
| 15 | Washer JB982-16 | 4015000141 | 6 |
| 16 | CONNECTOR | 27100100661 | 4 |
| 17 | Joint m12-m12 | 27100104301 | 1 |
| 18 | Washer JB982-12 | 4015000327 | 1 |
| 19 | Steel braided hose 1250 | 27100142591 | 1 |
| 20 | Combination joint LGB143-12213 | 4041001218 | 1 |
| 21 | L-bracket 70*20*30 | 27100142601 | 1 |
| 22 | Dryer & spiral pipe assy | 27100142541 | 1 |
| 23 | Bracket 1 | 27100103561 | 1 |
| 24 | Clamp R-D16-M10 | 4190707967 | 1 |
| 25 | Nut seat | 27110107601 | 4 |
| 26 | Bolt GB5782-M16*50EpZn-8.8 | 4011000510 | 1 |
| 27 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 1 |
| 28 | Nut GB6170-M16EpZn-10 | 4013000205 | 1 |
| 29 | Plate | 27100122501 | 1 |
| 30 | M16-M18 rectangular connector | 27100100641 | 2 |
| 31 | Cable tie HS-J117 | 4130704969 | 1 |
| 32 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 33 | Brake air line assy | 27100143071 | 1 |
| 34 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 35 | C-bracket 90*60*30 | 27100143431 | 2 |
| 36 | Bracket assy 02 | 27100144451 | 2 |
| 37 | Installation assembly | 27100120811 | 1 |
| 38 | Plate | 27100120621 | 1 |
| 39 | Sensor | 27100118001 | 1 |
| 40 | Break valve | 27100120781 | 1 |
| 41 | Plate | 27100108061 | 1 |
| 42 | Nipple | 27100118011 | 2 |
