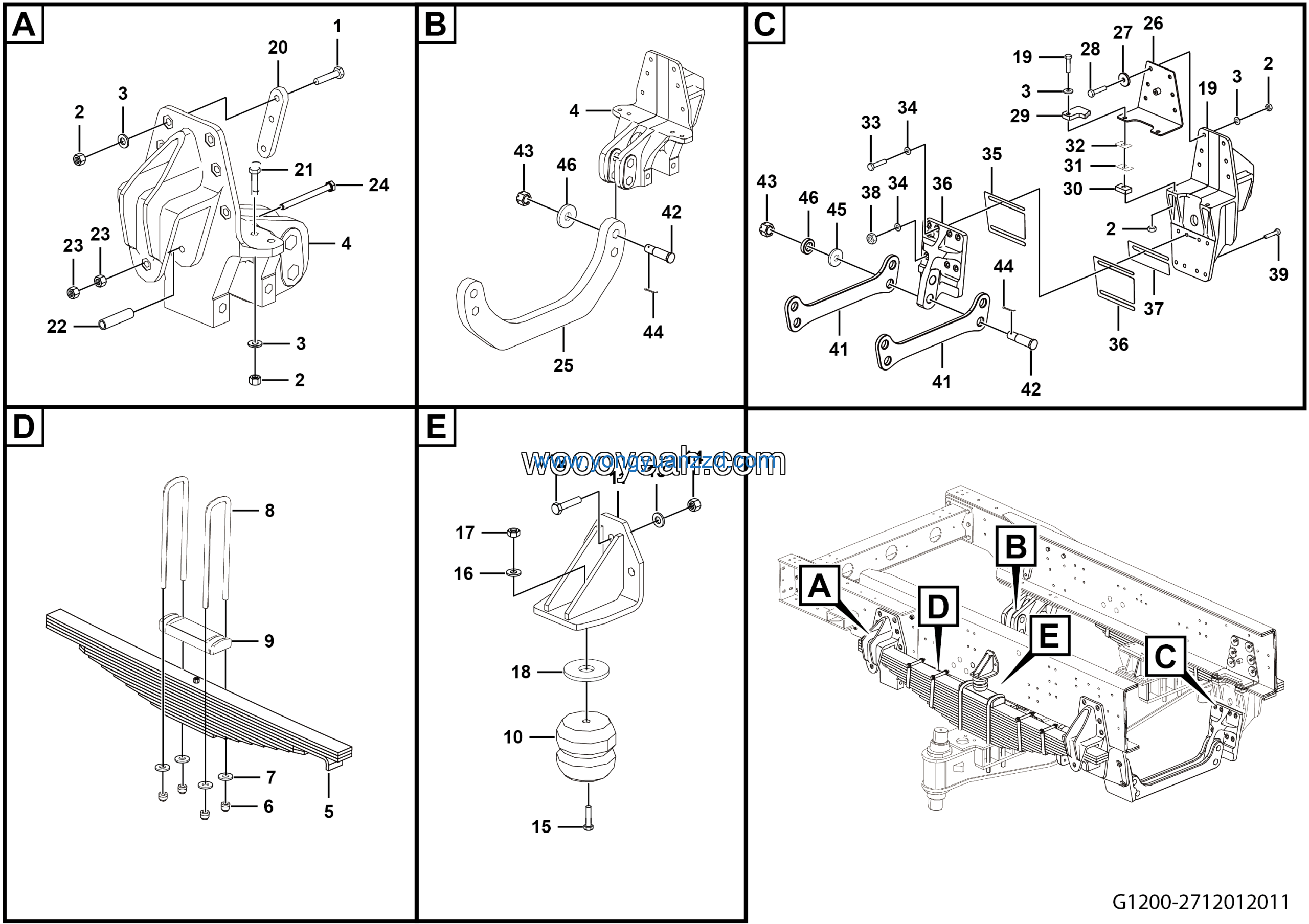

LGMG CMT106 Mine Truck – Front the spring assembly – G1200-2712012011

Category:

LGMG CMT106 Mine Truck – Front the spring assembly – G1200-2712012011

Category: Mine Truck > CMT106 > C1060WA51

Parts List:

No. Part Name Part Number Qty
1 Hollow rubber buffer block 4190000636 2
2 The limiting block bracket 27120115641 2
3 BOLT GB5782-M14*55EpZn-8.8 4011000067 8
4 Washer GB97.1-14EpZn-300HV 4015000177 8
5 Nut GB6185.1-M14EpZn-8 4013010121 8
6 Bolt GB5782-M12*55EpZn-8.8 4011000186 2
7 Washer GB97.1-12EpZn-300HV 4015000168 2
8 Nut GB6185.1-M12EpZn-8 4013010120 2
9 washer 27120112021 2
10 Front leaf sring rear support saddle 27120119591 2
11 Bolt GB5785-M18*1.5*100flZnyc-12.9-480 4011010485 12
12 Plate 27120115481 2
13 Bolt GB5785-M18*1.5*90flZnyc-12.9-480 4011010496 8
14 Bolt protection tube 27120100211 4
15 Nut GB6170-M16flZnyc-12-480 4013010254 8
16 Bolt 27120100221 4
17 First cross beam 27120114551 1
18 Plate 27120120151 2
19 Big washer 27120117501 12
20 Bolt GB5785-M18*1.5*85flZnyc-12.9-480 4011010505 16
21 backing plate 27120118421 2
22 Nut GB6185.2-M18*1.5flZnyc-12-480 4013010239 36
23 front leaf spring support pad 27120118391 4
24 adjusting shim 27120118401 4
25 sdjusting shim 27120118411 4
26 Bolt GB5786-M16*1.5*60flZnyc-12.9-480 4011010585 4
27 Washer GB1230-16-45 4015010101 28
28 Adjusting shim 27120114771 2
29 Adjusting shim 27120114781 2
30 Adjustment gasket 27120117822 2
31 Nut GB6185.1-M16flZnyc-12-480 4013010251 12
32 Bolt GB5782-M16*80flZnyc-12.9-480 4011010614 12
33 Washer 18 27120105412 52
34 Second beam seat 27120113671 2
35 Second pole 27120113961 2
36 Pin 27120113581 8
37 Nut GB6178-M36EpZn-10 4013010114 8
38 Pin GB91-6.3*63EpZn-Q235A 4016000113 8
39 Washer GB97.1-36EpZn-300HV 4015000108 4
40 Sleeve 27120113901 4
41 Front leaf sring front support saddle 27120113621 2
42 FR leaf spring assy 50CrVA 4110001630 2
43 Self-locking nut with the shoulder 27120103611 8
44 Washer 24 27120118761 8
45 Bolt 27120115441 4
46 Front spring clamp 27120103591 2
