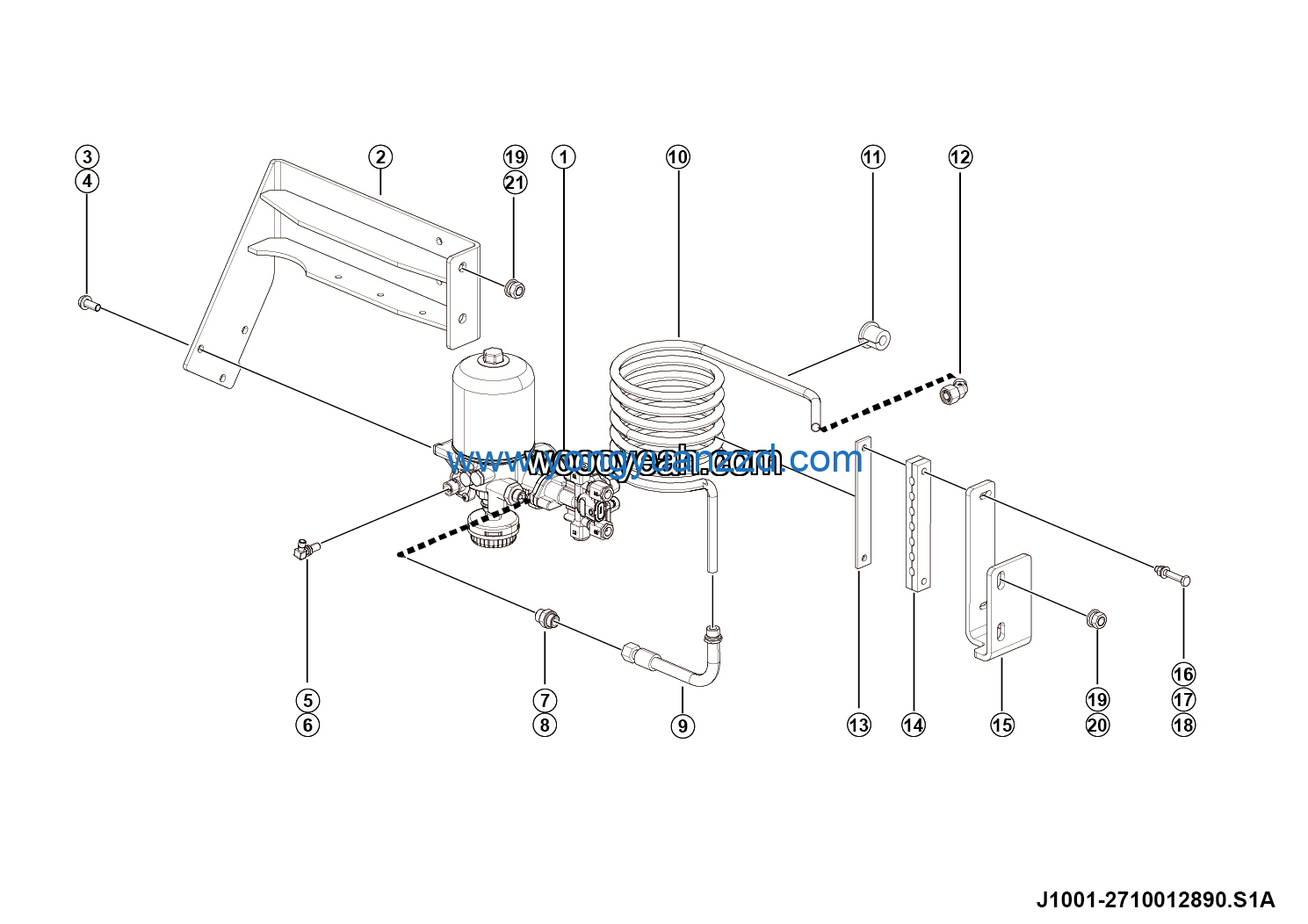

LGMG CMT106H 2025 – Dryer spiral pipe installation – J1001-2710012890.S1A
Category: 2025 > CMT106H > C106HW3E0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Spiral pipe 135° | 27100128891 | 1 |
| 2 | Rubber sleeve | 27100124781 | 1 |
| 3 | Combination joint LGB143-12213 | 4041001218 | 1 |
| 4 | Plate | 27100108872 | 1 |
| 5 | Rubber clip | 27100108841 | 2 |
| 6 | Plate | 27100120931 | 1 |
| 7 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 9 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 10 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 11 | Air Handling unit | 4120001482 | 1 |
| 12 | Nut GB6170-M16EpZn-8 | 4013000016 | 2 |
| 13 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 2 |
| 14 | Plate | 27100120971 | 1 |
| 15 | Bolt GB5786-M12*1.5*30EpZn-8.8 | 4011000317 | 3 |
| 16 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 17 | Joint m12-m12 | 27100104301 | 1 |
| 18 | Washer JB982-12 | 4015000327 | 1 |
| 19 | M22-m22 rectangular connector | 27100100691 | 1 |
| 20 | Washer JB982-22 | 4015000092 | 1 |
| 21 | Wired hose | 27100107941 | 1 |
