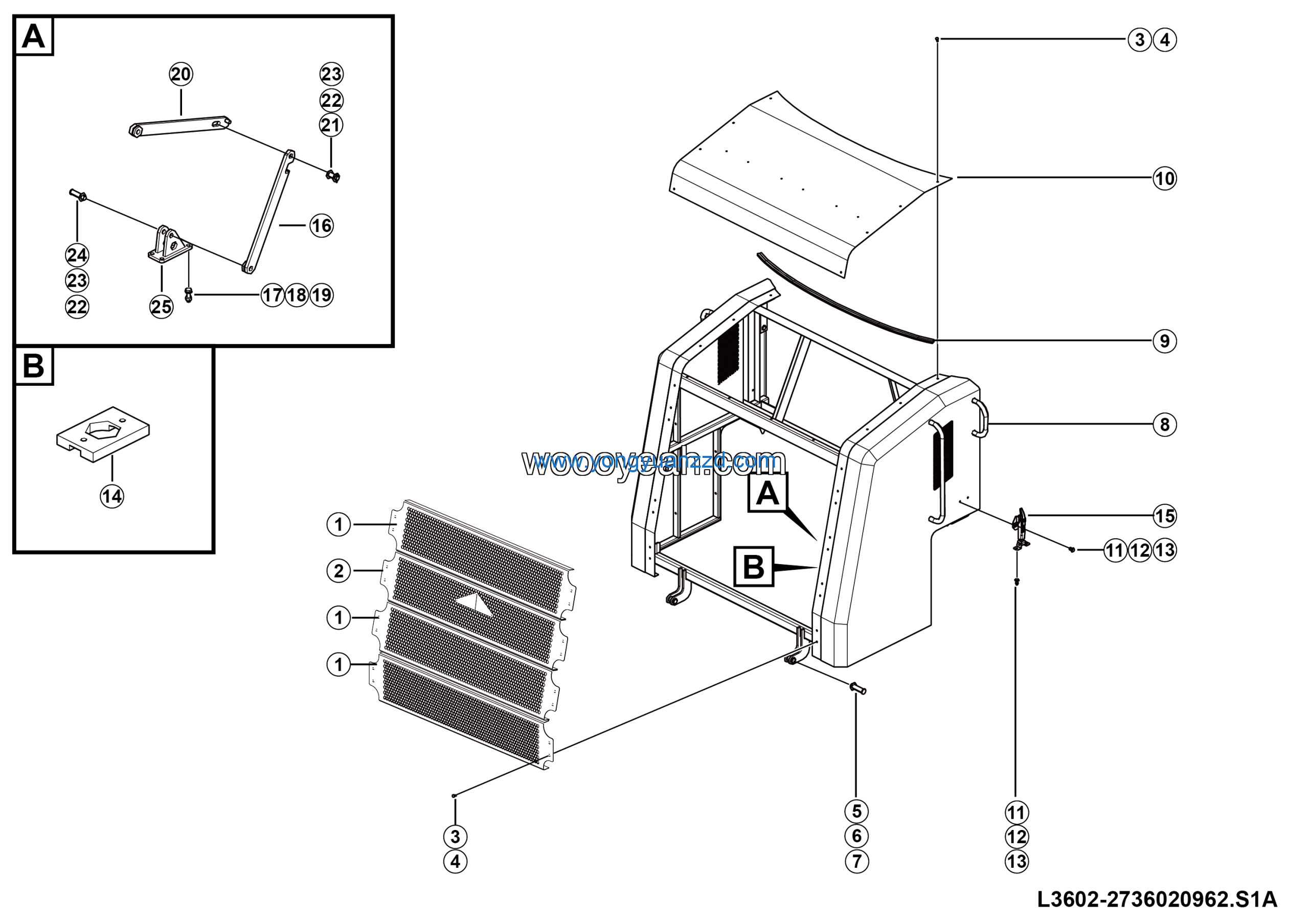

LGMG CMT106H 2025 – Hood installation – L3602-2736020962.S1A
Category: 2025 > CMT106H > C106HE0A0A701
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hood cover plate assy | 27360119451 | 1 |
| 2 | Bolt GB5783-M8*30flznyc-8.8-480 | 4011010708 | 12 |
| 3 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 40 |
| 4 | Nut GB6185.1-M8flZnyc-8-480 | 4013010314 | 12 |
| 5 | Plate | 27360135161 | 2 |
| 6 | Lock chain DK636-1（ShengJiu） | 4190704689 | 2 |
| 7 | CROSSWISE BEAM | 27360117241 | 1 |
| 8 | Bolt GB5783-M12*40flZnyc-8.8-480 | 4011010979 | 4 |
| 9 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 8 |
| 10 | Nut GB6185.1-M12flZnyc-8-480 | 4013010358 | 4 |
| 11 | Protective mesh plate | 27360197211 | 3 |
| 12 | PLATE | 27360117271 | 1 |
| 13 | Pin GB882-B16*40EpZn-35 | 4016010153 | 1 |
| 14 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 4 |
| 15 | Pin GB91-3.2*26EpZn-Q235A | 4016000179 | 3 |
| 16 | Pin GB882-B16*60EpZn-35 | 4016010152 | 2 |
| 17 | PIN | 27360117211 | 1 |
| 18 | Protective mesh plate ii | 27360197201 | 1 |
| 19 | Bolt GB5783-M8*16flznyc-8.8-480 | 4011010970 | 24 |
| 20 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 4 |
| 21 | Pin GB882-B24*90EpZn-35 | 4016010151 | 2 |
| 22 | Washer GB97.1-24EpZn-300HV | 4015000167 | 2 |
| 23 | Pin GB91-5*40EpZn-Q235A | 4016000127 | 2 |
| 24 | Hood assy | 27360164501 | 1 |
| 25 | PLATE | 27360117151 | 1 |
