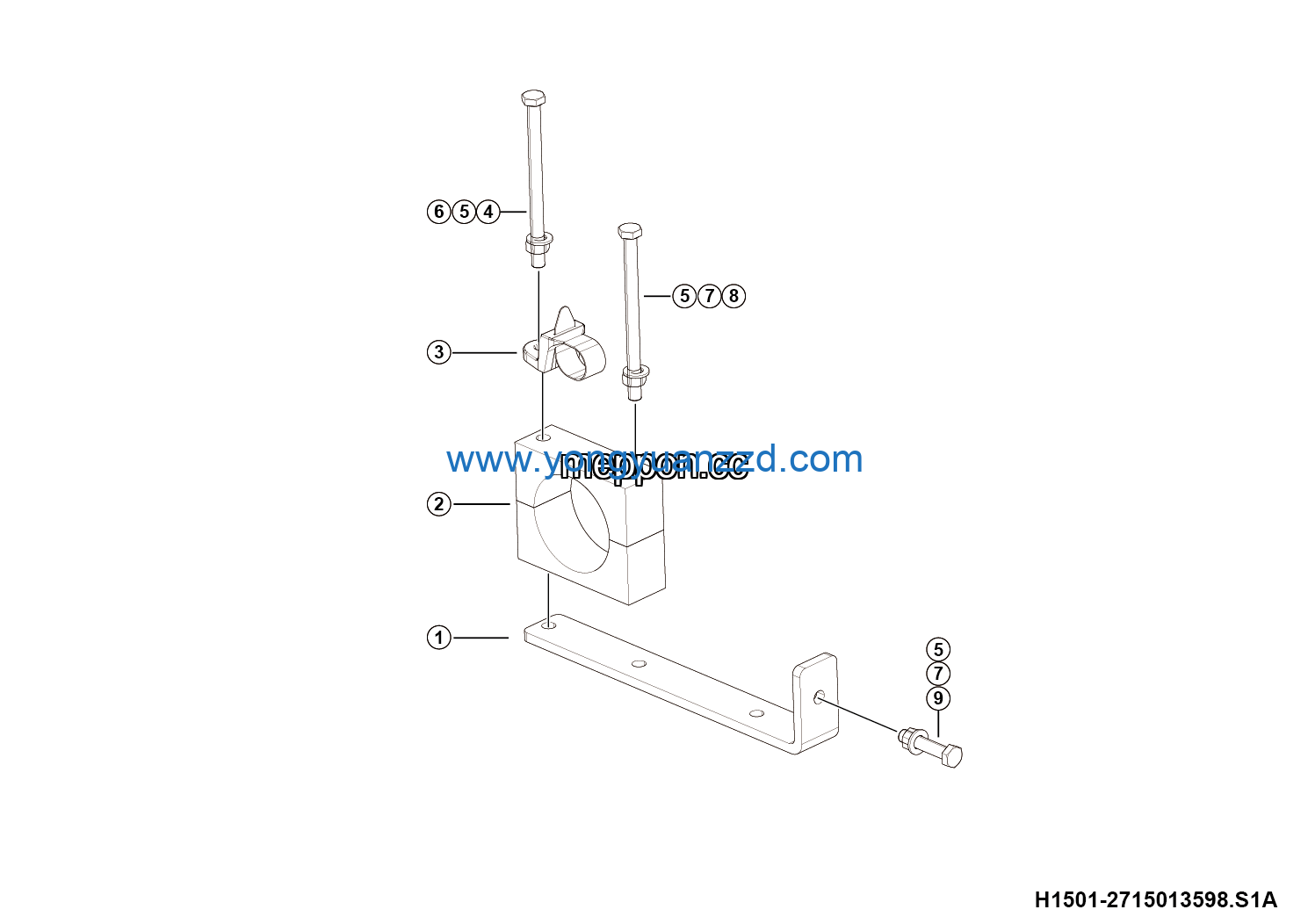

LGMG CMT106H 2025 – Hose fixing bracket assy 01 – H1501-2715013598.S1A
Category: 2025 > CMT106H > C106HW3E0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket 75*40*305 | 27150136011 | 1 |
| 2 | Plastic pipe calmp | 27150129601 | 2 |
| 3 | Cable tie HS-J117 | 4130704969 | 1 |
| 4 | Bolt GB5782-M10*140flZnyc-8.8-480 | 4011011030 | 1 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 6 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 1 |
| 7 | Bolt GB5782-M10*130EpZn-8.8 | 4011000535 | 1 |
| 8 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 9 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 1 |
