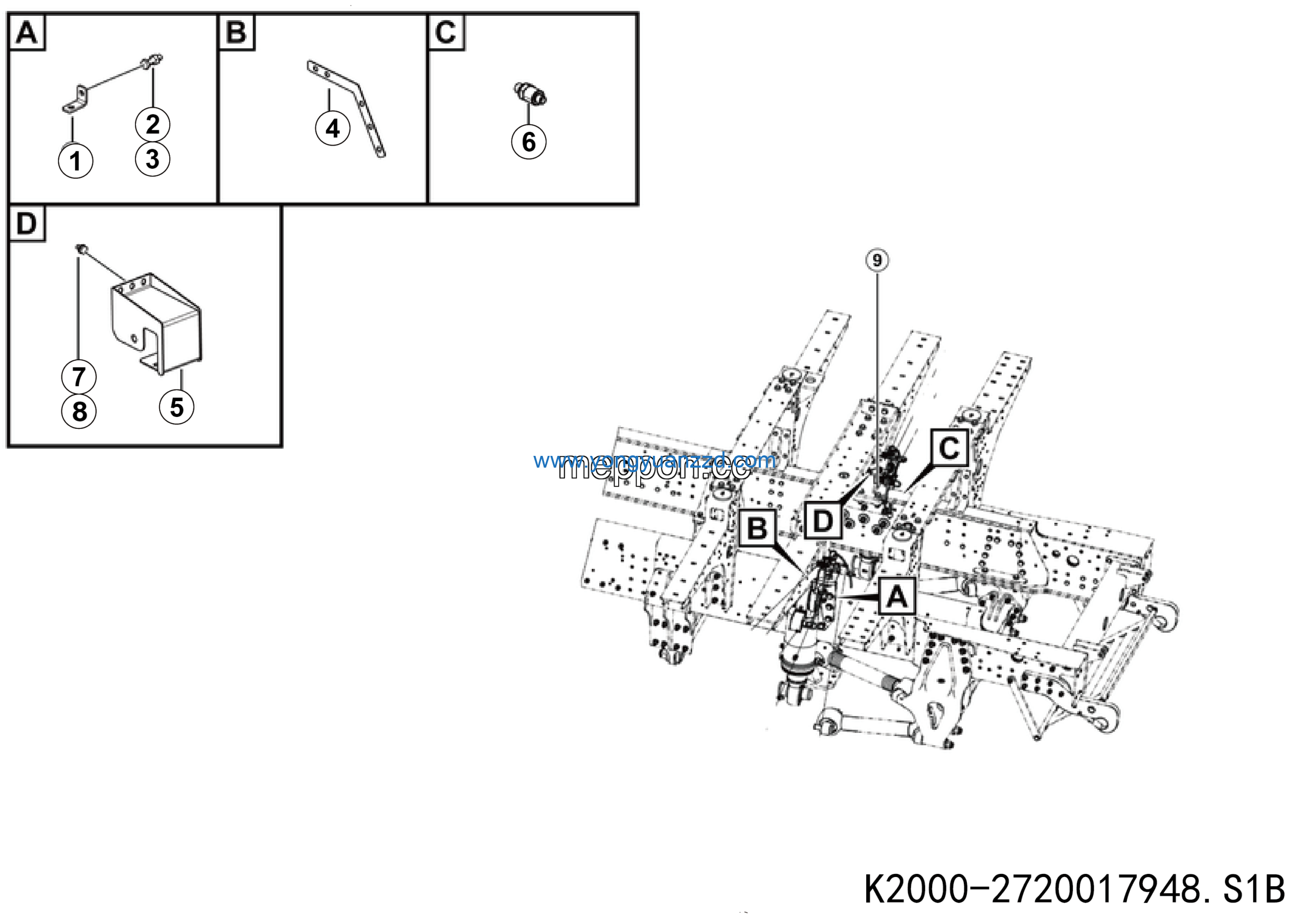

LGMG CMT106H 2025 – Load sensor elec sys – K2000-2720017948.S1B
Category: 2025 > CMT106H > C106HE0A0A701
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Holder | 27200141551 | 4 |
| 2 | Bolt GB5783-M10*35EpZn-10.9 | 4011000569 | 6 |
| 3 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
| 4 | Bracket 198*20*2 | 27200155321 | 2 |
| 5 | Shield weldment | 27200155421 | 2 |
| 6 | Load sensor 5PCM33-171 | 4130713156 | 2 |
| 7 | Bolt GB5783-M6*10EpZn-8.8 | 4011000866 | 6 |
| 8 | Washer GB97.1-6EpZn-300HV | 4015000207 | 6 |
| 9 | Load sensor harness 1000 | 27200179491 | 1 |
