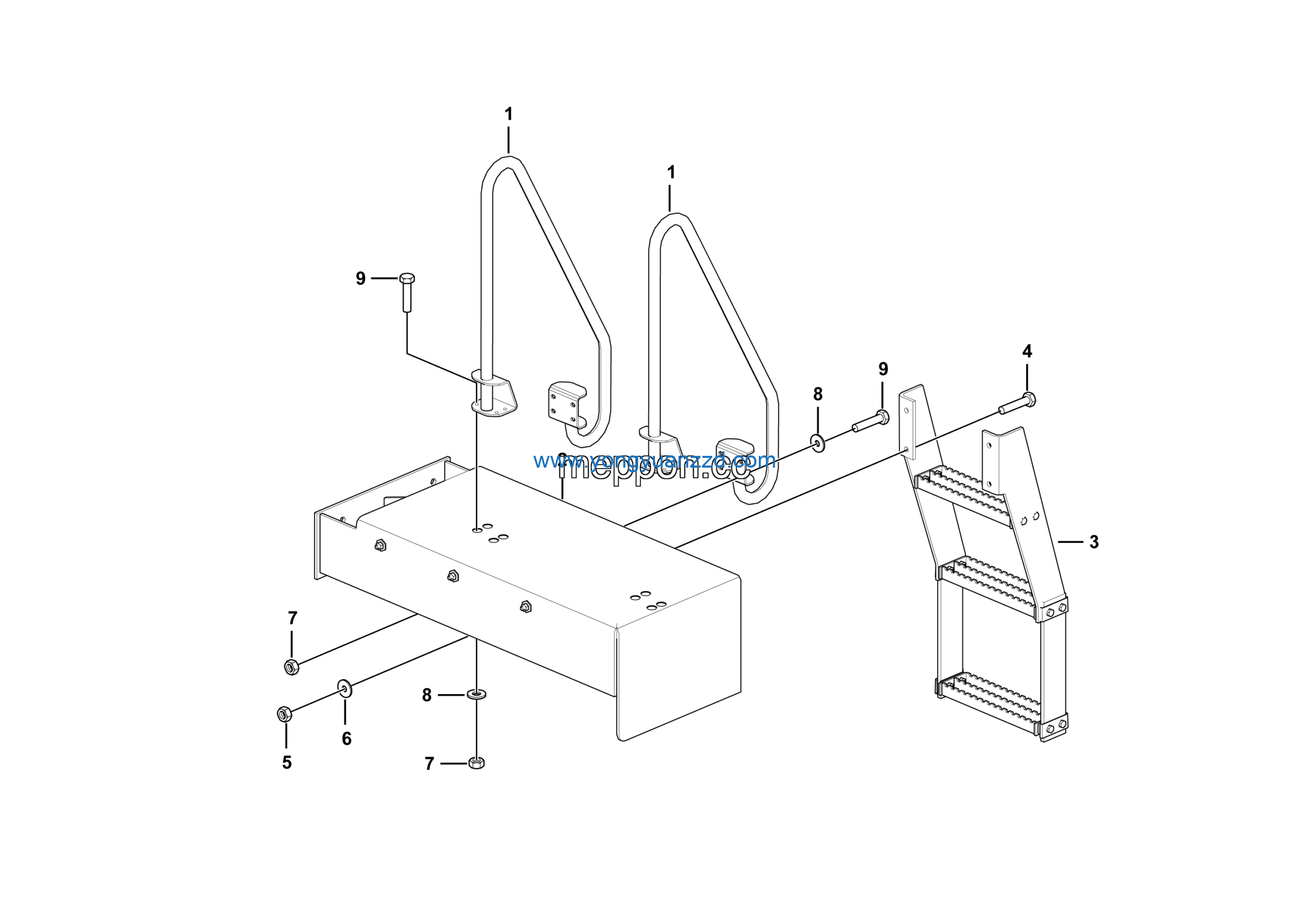

LGMG CMT110 Mine Truck – Assembly of treadle on right – L3600-2736011410
Category: Mine Truck > CMT110 > C1100WA01
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 16 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 3 | Nut GB6170-M10EpZn-8 | 4013000007 | 16 |
| 4 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 5 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
| 6 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 4 |
| 7 | Boarding ladder assembly | 27360104661 | 1 |
| 8 | PLATE | 27360114661 | 1 |
| 9 | NAMEPLATE | 27360114621 | 2 |
