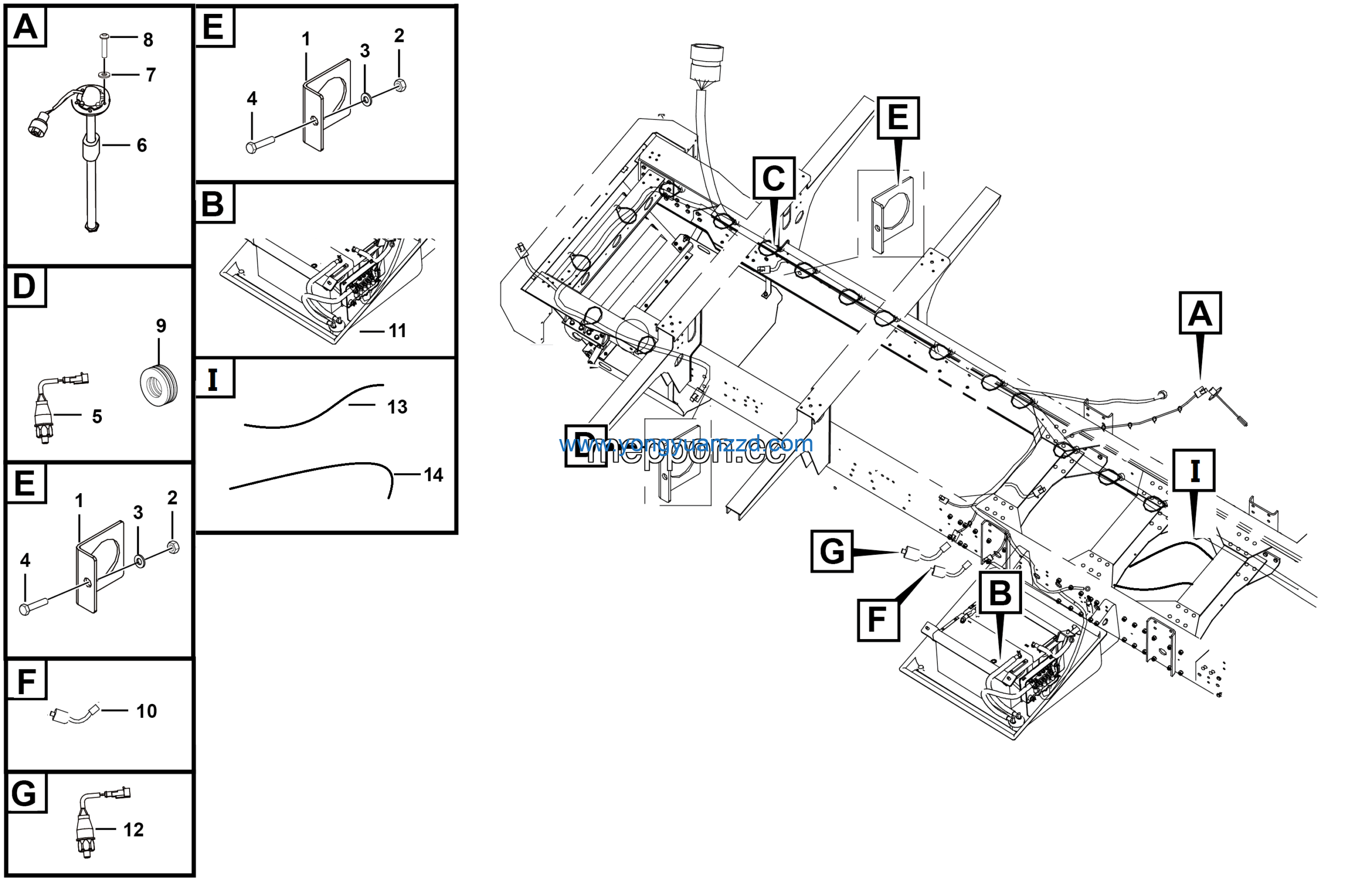

LGMG CMT110 Mine Truck – Electricity assembly – K0200-2720011067
Category: Mine Truck > CMT110 > C1100WA01
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Electromagnetic valve air pressure switch 0.3MPa | 4130000007 | 1 |
| 2 | Battery box assembly | 27200110681 | 1 |
| 3 | Cargo lifting switch XJK-010-09 | 4130000641 | 1 |
| 4 | Wire | 27200107611 | 1 |
| 5 | BOTTOM PLATE MIDDLE LONGITUDINAL BEAM ASSEMBLY | 27200108841 | 1 |
| 6 | Itt plate | 27200107441 | 2 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 9 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 10 | Parking indicator switch | 4120001991 | 1 |
| 11 | Single rod fuel sensor | 4130000616 | 1 |
| 12 | Washer GB97.1-5EpZn-300HV | 4015000110 | 5 |
| 13 | Screw GB818-M5*10EpZn-4.8 | 4014000023 | 5 |
| 14 | String casing | 27140105021 | 4 |
