LGMG CMT110 Mine Truck – Electricity module of cover – K2000-2720010933
Category: Mine Truck > CMT110 > C1100WA01

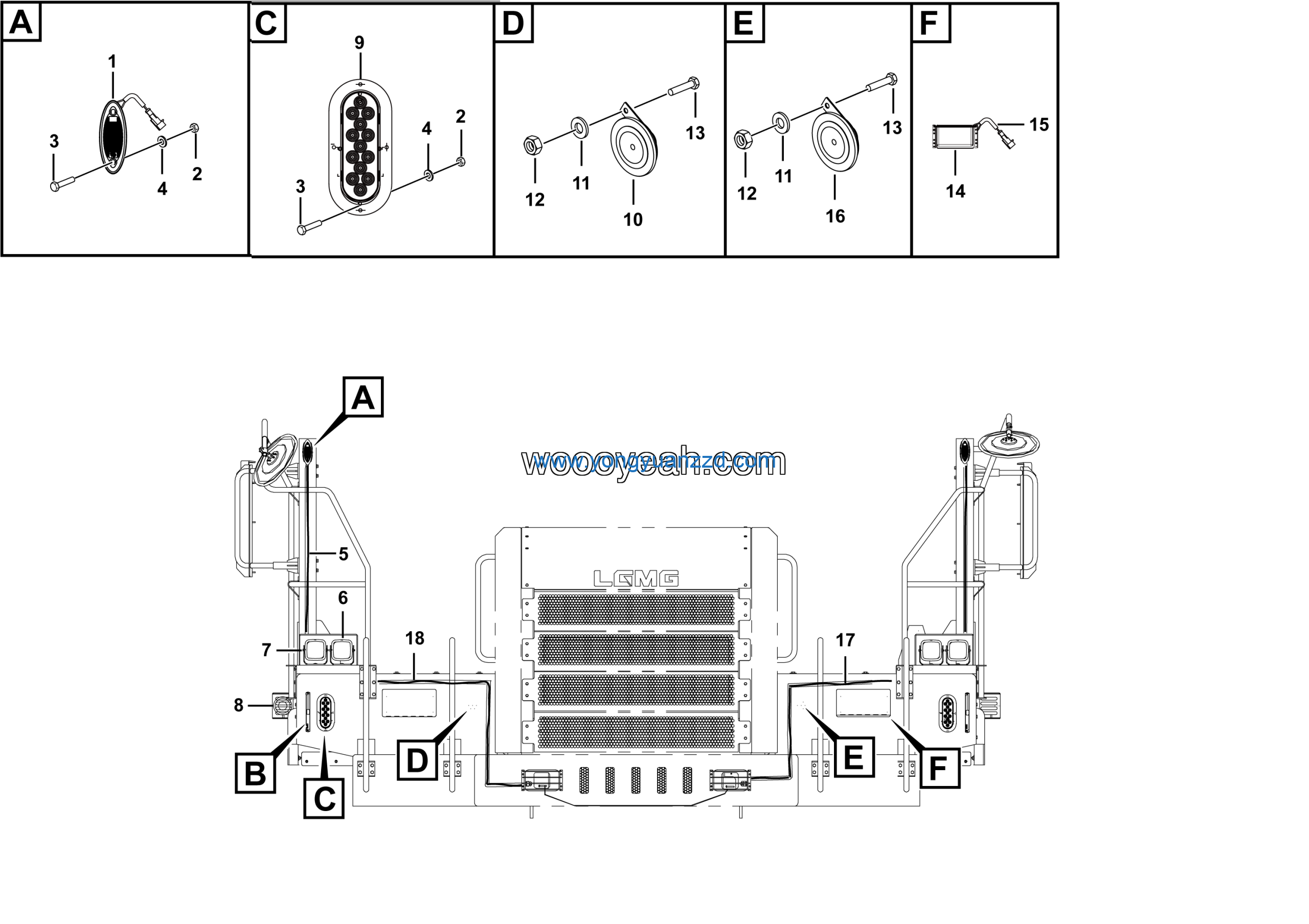

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Monophonic disc woofer | 4130000906 | 1 |
| 2 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 3 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 4 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 5 | LED Fog lamp SM6053（three pin plug） | 4130000921 | 2 |
| 6 | Cmt fog lamp | 27200106591 | 1 |
| 7 | Monophonic disc wooFer（treble） | 4130000907 | 1 |
| 8 | Left platform wire | 27200107571 | 1 |
| 9 | Cargo tank | 27200109151 | 1 |
| 10 | SMG-011 Side marker lamp 3112040324 | 4130001148 | 2 |
| 11 | Nut GB6172.1-M4EpZn-05 | 4013000047 | 12 |
| 12 | Bolt GB5783-M4*20EpZn-8.8 | 4011000615 | 12 |
| 13 | Washer GB97.1-4EpZn-300HV | 4015000135 | 12 |
| 14 | THE CARGO CASE IS SECURED TO THE RIGHT | 27200108761 | 2 |
| 15 | Spotlamp work lamp WK-55HL（3312040131） | 4130001153 | 2 |
| 16 | Floodlamp work lamp WK-55HL（3312040210） | 4130001152 | 2 |
| 17 | White lamp work lamp WK-005 | 4130001150 | 2 |
| 18 | Steering lamp DI-621 | 4130001146 | 2 |
