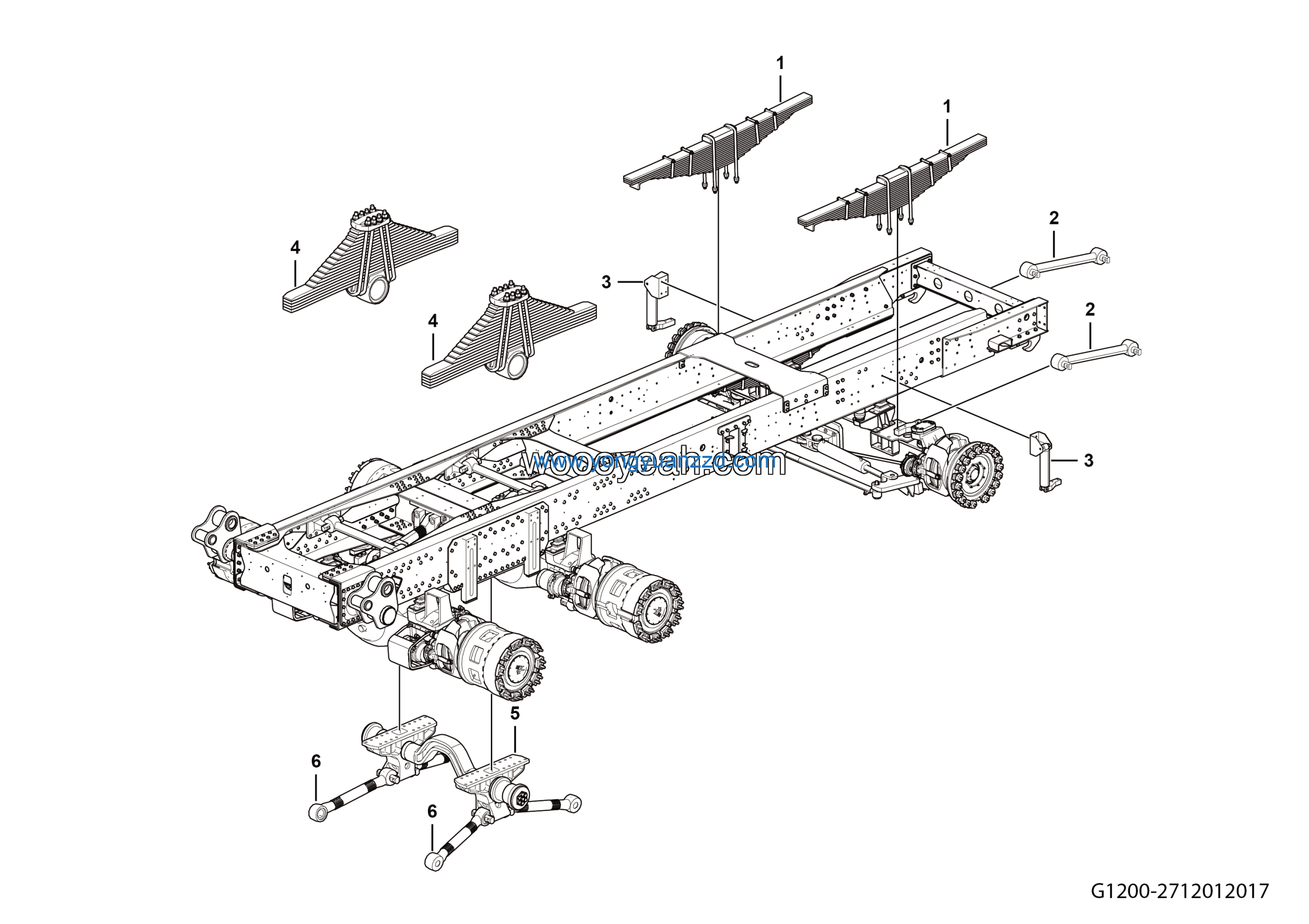

LGMG CMT110 Mine Truck – Suspension assembly – G1200-2712012017
Category: Mine Truck > CMT110 > C1100WA01
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Front the spring assembly | 27120120111 | 1 |
| 2 | Front thrusting rod mounting assembly | 27120116291 | 1 |
| 3 | Shock absorber assembly | 27120120121 | 1 |
| 4 | Rear leaf spring assembly | 27120120181 | 1 |
| 5 | Balance shaft assembly | 27120120201 | 1 |
| 6 | Rear the thrusting rod mounting assembly | 27120120191 | 1 |
