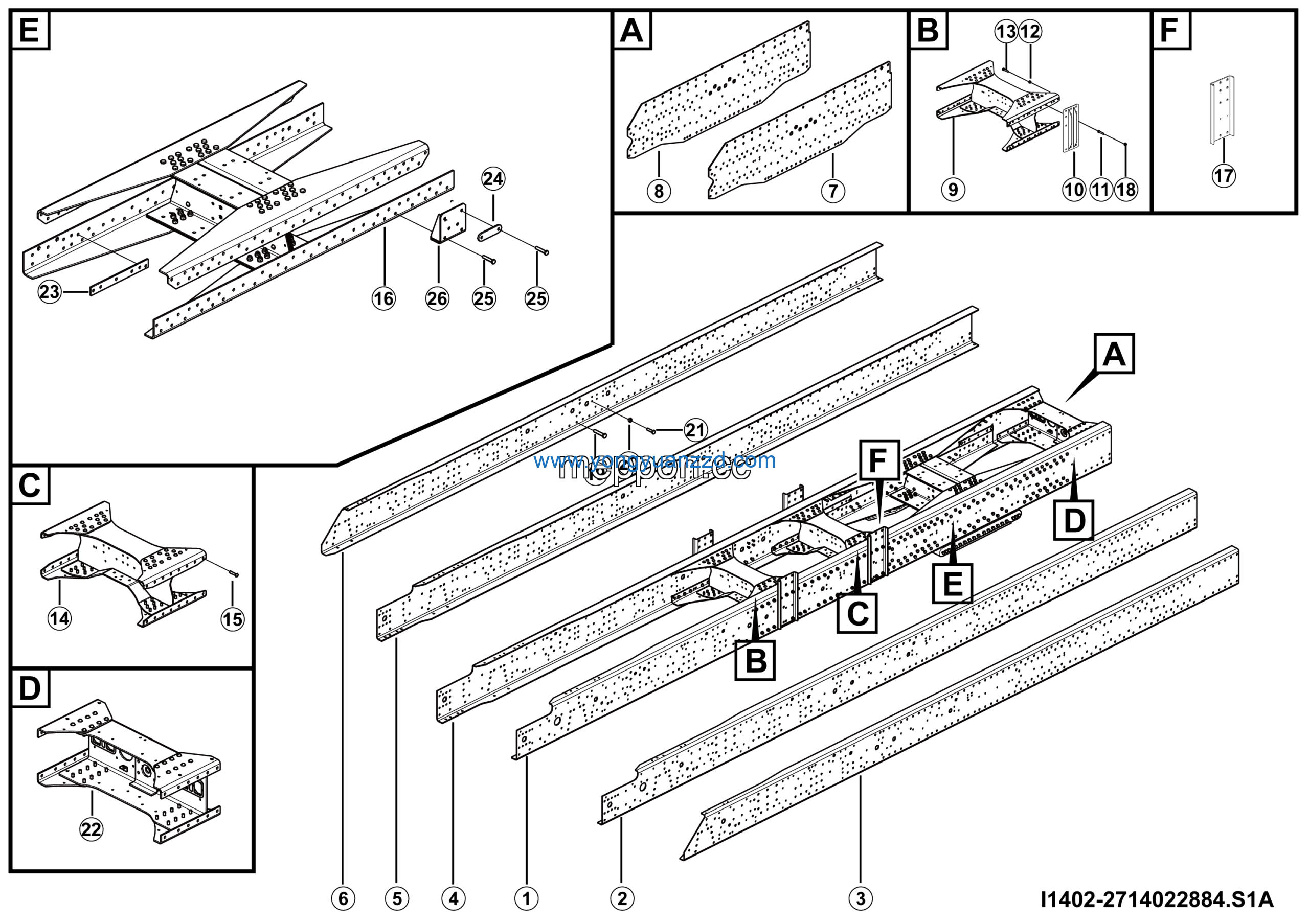

LGMG CMT116H 2025 – Frame – I1402-2714022884.S1A
Category: 2025 > CMT116H > C116HY3E0M003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Subframe-connecting plate weldment | 27140196261 | 2 |
| 2 | Bolt GB5786-M16*1.5*70flZnyc-12.9-480 | 4011011419 | 39 |
| 3 | Nut GB6185.2-M16*1.5-12 | 4013010222 | 97 |
| 4 | Bolt GB5786-M16*1.5*60-12.9 | 4011010219 | 53 |
| 5 | Frame | 27140184361 | 1 |
| 6 | Rivet GB867-16*70 | 4019010340 | 138 |
| 7 | Balance shaft stiffening beam assy | 27140182311 | 1 |
| 8 | Subframe-connecting plate 555*252*50 | 27140196161 | 2 |
| 9 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 23 |
| 10 | BOLT GB5786-M16*1.5*50-12.9 | 4011010738 | 16 |
| 11 | Lh longit beam 8445*450*120*10 | 27140228851 | 1 |
| 12 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
| 13 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 6 |
| 14 | Frame | 27140184511 | 1 |
| 15 | Frame | 27140184722 | 2 |
| 16 | Plate | 27140138171 | 2 |
| 17 | Bolt GB5785-M16*1.5*80-12.9 | 4011010792 | 12 |
| 18 | Frame | 27140184571 | 2 |
| 19 | Lh stiffening beam 7865*430*110*10 | 27140228861 | 1 |
| 20 | Stiffening beam for lh lining plate 7865*410*100*8 | 27140228871 | 1 |
| 21 | Rh longit beam 8445*450*120*10 | 27140228881 | 1 |
| 22 | Rh stiffening beam 7865*430*110*10 | 27140228891 | 1 |
| 23 | Stiffening beam for rh lining plate 7865*410*100*8 | 27140224211 | 1 |
| 24 | Plate | 27140184602 | 1 |
| 25 | Frame | 27140184612 | 1 |
| 26 | Crossbeam assy 1 | 27140196171 | 1 |
