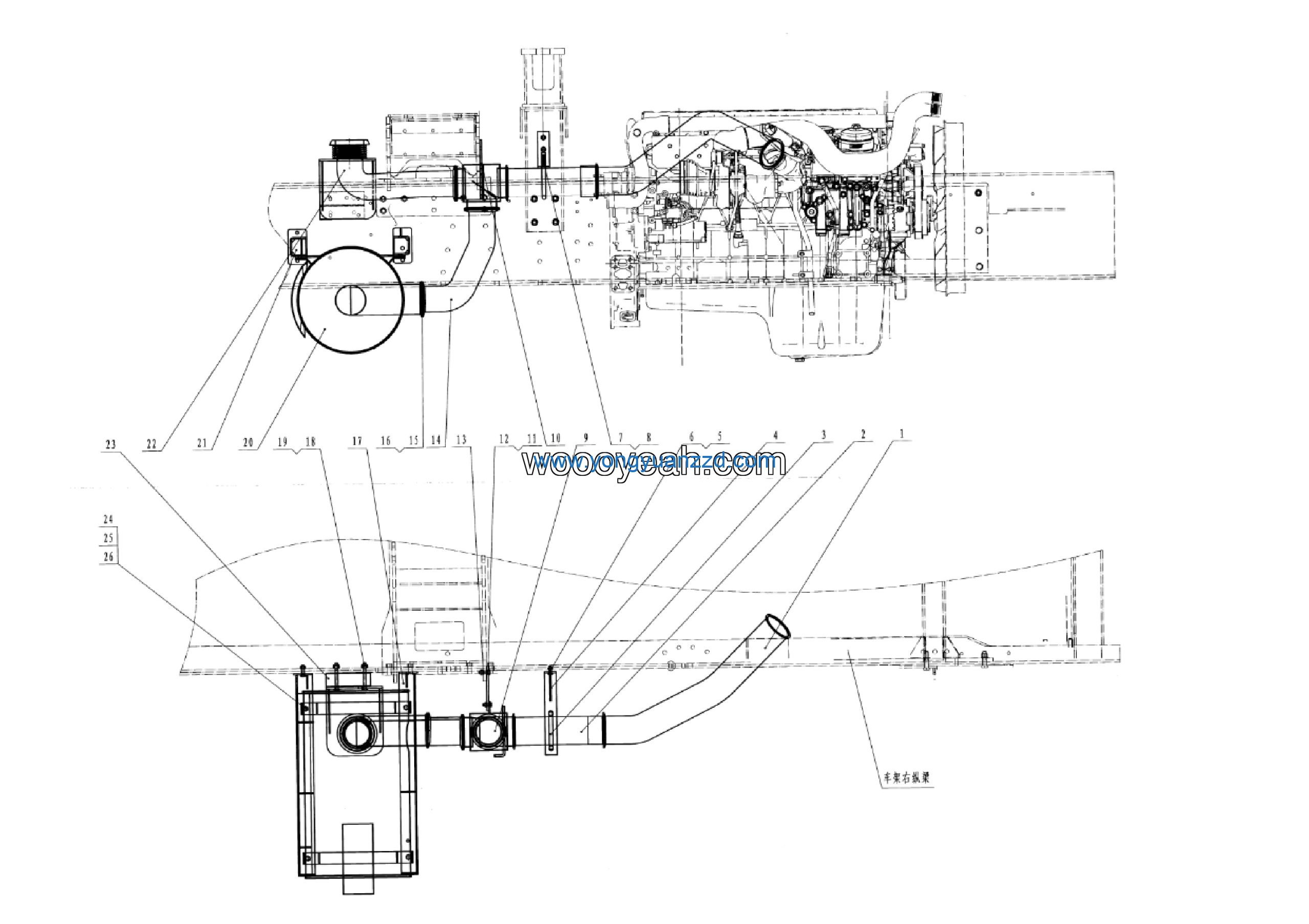

LGMG CMT65 Mine Truck – Exhaust system assy – A2401-2724010133.S
Category: Mine Truck > CMT65 > C0650HA00
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Exhaust | 27240101371 | 1 |
| 2 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 3 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
| 4 | Washer GB97.1-12-300HV | 4015000313 | 2 |
| 5 | Exhaust pipe | 27240101361 | 1 |
| 6 | Clamp | 4110000768 | 5 |
| 7 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 5 |
| 8 | Frame | 27240101421 | 1 |
| 9 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 4 |
| 10 | Bolt GB5782-M14*110EpZn-8.8 | 4011000360 | 4 |
| 11 | Exhaust pipe | 27240101341 | 1 |
| 12 | Muffler assy | 4110001045 | 1 |
| 13 | Frame | 27240101411 | 1 |
| 14 | Exhaust pipe | 27240101381 | 1 |
| 15 | Frame | 27240101511 | 1 |
| 16 | Frame | 27240101391 | 2 |
| 17 | Frame | 27240101401 | 2 |
| 18 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 4 |
| 19 | Exhaust pipe | 27240101351 | 1 |
| 20 | U-BOLT | 27240101171 | 1 |
| 21 | Frame | 27240101481 | 1 |
| 22 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 23 | Nut GB6170-M10EpZn-8 | 4013000007 | 22 |
| 24 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
| 25 | Nut GB6170-M16EpZn-8 | 4013000016 | 4 |
| 26 | Conversion box assy | 4110001046 | 1 |
