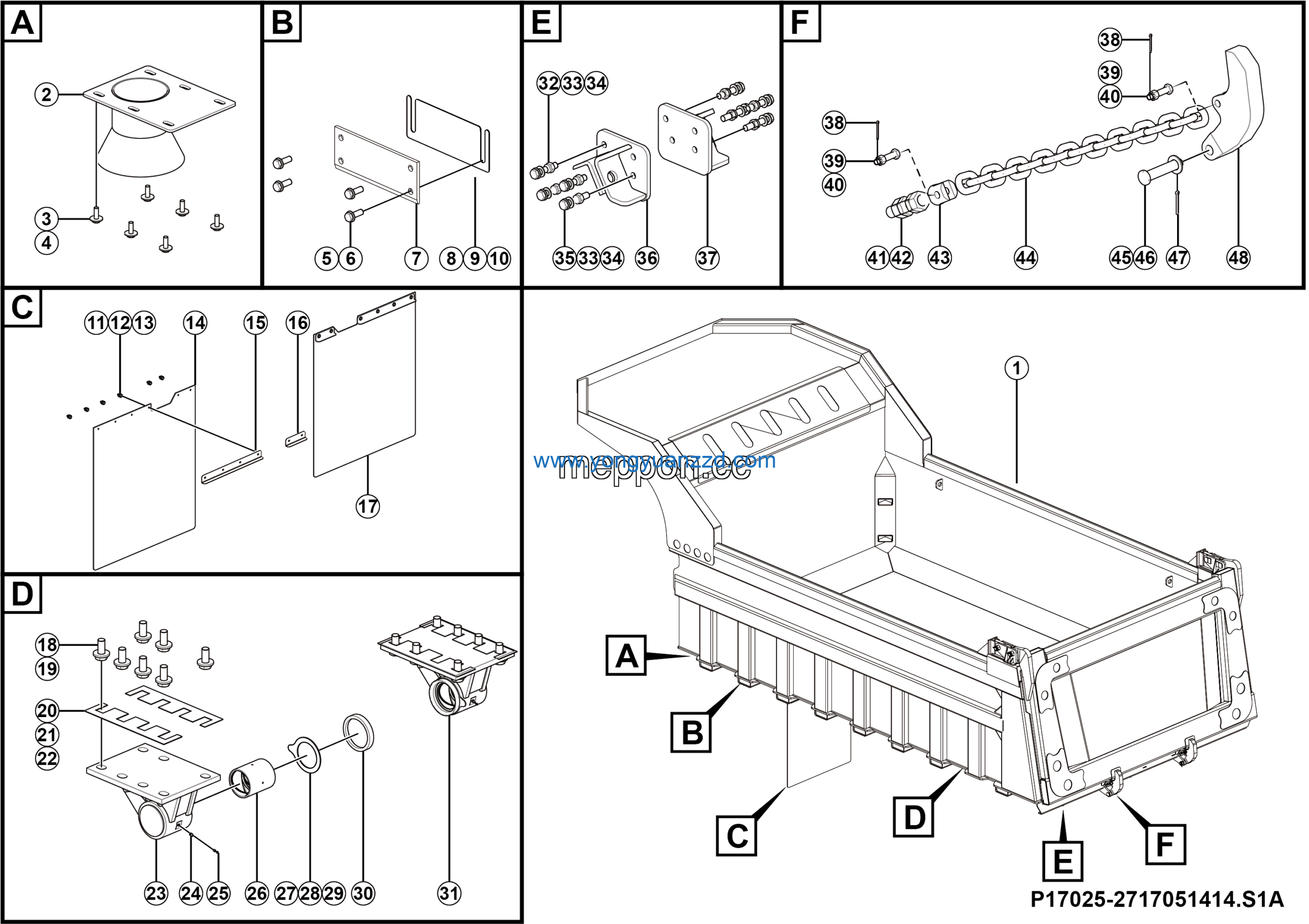

LGMG CMT66 2025 – Body assy – P17025-2717051414.S1A
Category: 2025 > CMT66 > C0660W3E0A028
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-16EpZn-300HV | 4015000181 | 16 |
| 2 | Nut GB6178-M24EpZn-10 | 4013010219 | 2 |
| 3 | Plate | 27170150612 | 1 |
| 4 | Pin GB91-5*45EpZn-Q235A | 4016010004 | 4 |
| 5 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 6 |
| 6 | Bolt GB5782-M16*90flZnyc-12.9-480 | 4011010646 | 4 |
| 7 | Plate | 27170110793 | 2 |
| 8 | PIP | 27170106911 | 2 |
| 9 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 12 |
| 10 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 2 |
| 11 | Nut GB6172.1-M30EpZn-8 | 4013000175 | 4 |
| 12 | Φ16 tailgate chain (20 links) | 27170115021 | 2 |
| 13 | Plate | 27170346751 | 2 |
| 14 | Washer GB96.1-10EpZn-300HV | 4015000197 | 6 |
| 15 | Plate | 27170346741 | 2 |
| 16 | Plate | 27170346761 | 2 |
| 17 | Butter nozzle cap JXHF-00006 | 4120000015 | 2 |
| 18 | Plate | 27170110782 | 2 |
| 19 | washer | 27170131861 | 3 |
| 20 | washer | 27170131871 | 3 |
| 21 | Plate | 27170167542 | 1 |
| 22 | Bolt GB5782-M16*80flZnyc-12.9-480 | 4011010614 | 4 |
| 23 | washer | 27170131851 | 3 |
| 24 | Plate | 27170110772 | 2 |
| 25 | Adjustibe heel plate 1 | 27170106822 | 8 |
| 26 | Plate | 27170150582 | 1 |
| 27 | Plate | 27170305641 | 1 |
| 28 | Adjustibe heel plate 2 | 27170106832 | 4 |
| 29 | Plate | 27170167522 | 1 |
| 30 | Plate | 27170346731 | 2 |
| 31 | Plate | 27170366972 | 2 |
| 32 | Bolt GB5786-M30*2*70EpZn-10.9 | 4011010282 | 14 |
| 33 | Nut GB6178-M16EpZn-8 | 4013000057 | 4 |
| 34 | Adjusting shim3 | 27170117672 | 4 |
| 35 | Body shell | 27170514151 | 1 |
| 36 | MUD MAT SKIN | 27170177022 | 1 |
| 37 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 38 | WASHER | 4015010208 | 21 |
| 39 | Nut GB6170-M30EpZn-8 | 4013000173 | 4 |
| 40 | MUD MAT SKIN | 27170177012 | 1 |
| 41 | Plate | 27170366964 | 4 |
| 42 | Bolt GB5786-M12*1.5*35EpZn-8.8 | 4011010010 | 11 |
| 43 | Connecting yoke | 27170297203 | 2 |
| 44 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 8 |
| 45 | Plate | 27170175081 | 2 |
| 46 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 12 |
| 47 | Washer GB96.1-8EpZn-300HV | 4015000256 | 24 |
| 48 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
