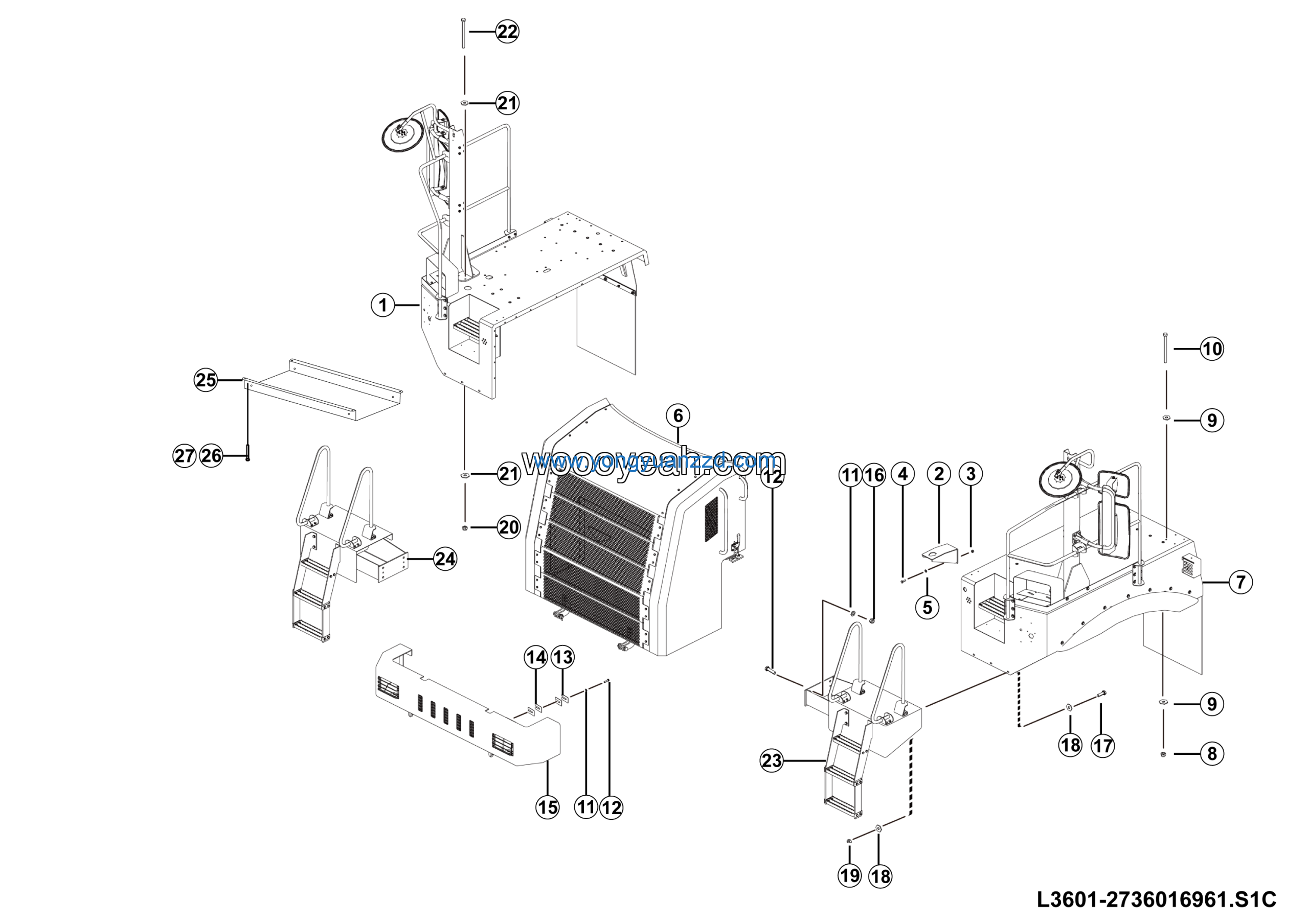

LGMG CMT66A 2025 – Covering assy – L3601-2736016961.S1C
Category: 2025 > CMT66A > C066AW3E0A013
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5785-M14*1.5*120EpZn-10.9 | 4011011646 | 18 |
| 2 | Washer GB97.1-16EpZn-300HV | 4015000181 | 16 |
| 3 | Bolt GB5783-M16*60EpZn-8.8 | 4011000594 | 16 |
| 4 | Trimmed gasket | 27130107671 | 4 |
| 5 | Trimmed gasket | 27130107681 | 4 |
| 6 | Bumper assy | 27360158131 | 1 |
| 7 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
| 8 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 6 |
| 9 | Washer GB96.1-10EpZn-300HV | 4015000197 | 12 |
| 10 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
| 11 | Right walkway assy | 27360169631 | 1 |
| 12 | Nut GB6185.2-M12*1.5EpZn-10 | 4013010172 | 8 |
| 13 | Washer GB96.1-12EpZn-300HV | 4015000186 | 16 |
| 14 | Bolt GB5785-M12*1.5*130EpZn-10.9 | 4011011645 | 8 |
| 15 | Assembly of treadle on left | 27360150771 | 1 |
| 16 | Assembly of treadle on right | 27360150801 | 1 |
| 17 | Harness guard 835.5*530*70 | 27360176901 | 1 |
| 18 | Bolt GB5783-M10*16EpZn-8.8 | 4011000080 | 4 |
| 19 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 20 | Plate | 27360157481 | 2 |
| 21 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 22 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 8 |
| 23 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 24 | Engine cover assembly | 27360150521 | 1 |
| 25 | Left walkway assy | 27360169621 | 1 |
| 26 | NUT GB6185-M14*1.5EpZn-10 | 4013010170 | 18 |
| 27 | Washer GB96.1-14EpZn-300HV | 4015000188 | 36 |
