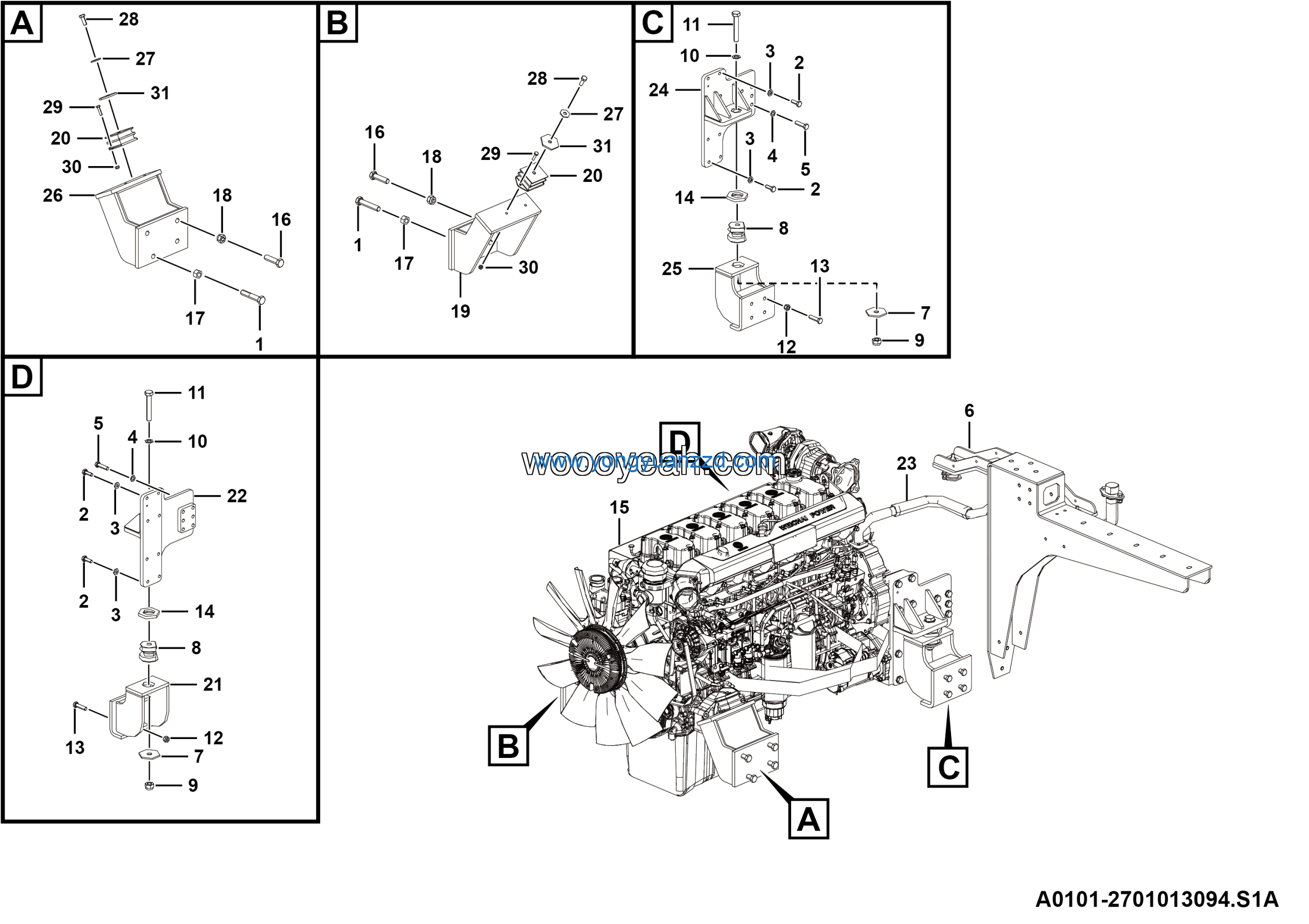

LGMG CMT66A 2025 – Engine assy – A0101-2701013094.S1A
Category: 2025 > CMT66A > C066AW3E0A022
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-22EpZn-300HV | 4015000184 | 2 |
| 2 | Bolt GB5782-M22*130EpZn-10.9 | 4011010256 | 2 |
| 3 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
| 4 | Bolt GB5783-M16*60EpZn-8.8 | 4011000594 | 8 |
| 5 | Frame | 27010109391 | 2 |
| 6 | Engine assy WP12G460E310 | 4110705523 | 1 |
| 7 | Bolt GB5782-M18*65EpZn-8.8 | 4011010223 | 4 |
| 8 | Nut GB6185.1-M18EpZn-8 | 4013010123 | 4 |
| 9 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 4 |
| 10 | Plate | 27010117771 | 1 |
| 11 | Bolt GB5785-M18*1.5*90flZnyc-12.9-480 | 4011010496 | 4 |
| 12 | FR suspension cushion | 4110000331 | 2 |
| 13 | Plate | 27010117871 | 1 |
| 14 | PLATE | 27010117801 | 1 |
| 15 | Oil filling assemble | 27010131031 | 1 |
| 16 | PLATE | 27010117831 | 1 |
| 17 | Oil suction rubber tube | 27010117861 | 1 |
| 18 | Plate | 27010117761 | 1 |
| 19 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 20 | Bolt GB5786-M12*1.5*30EpZn-10.9 | 4011010276 | 2 |
| 21 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 22 | Bolt GB5786-M14*1.5*40EpZn-10.9 | 4011000214 | 16 |
| 23 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 24 | Trimmed gasket | 27010106821 | 2 |
| 25 | Washer GB1230-14EpZn-45 | 4015000358 | 16 |
| 26 | Washer GB97.1-16EpZn-300HV | 4015000181 | 12 |
| 27 | Bolt GB5783-M16*60EpZn-10.9 | 4011010205 | 12 |
| 28 | Gearbox suspension assembly | 27050113941 | 1 |
| 29 | Plate | 27010105441 | 2 |
| 30 | Shock absorber 530903-45 | 4110001123 | 2 |
| 31 | Nut GB6185.1-M22EpZn-10 | 4013010139 | 2 |
