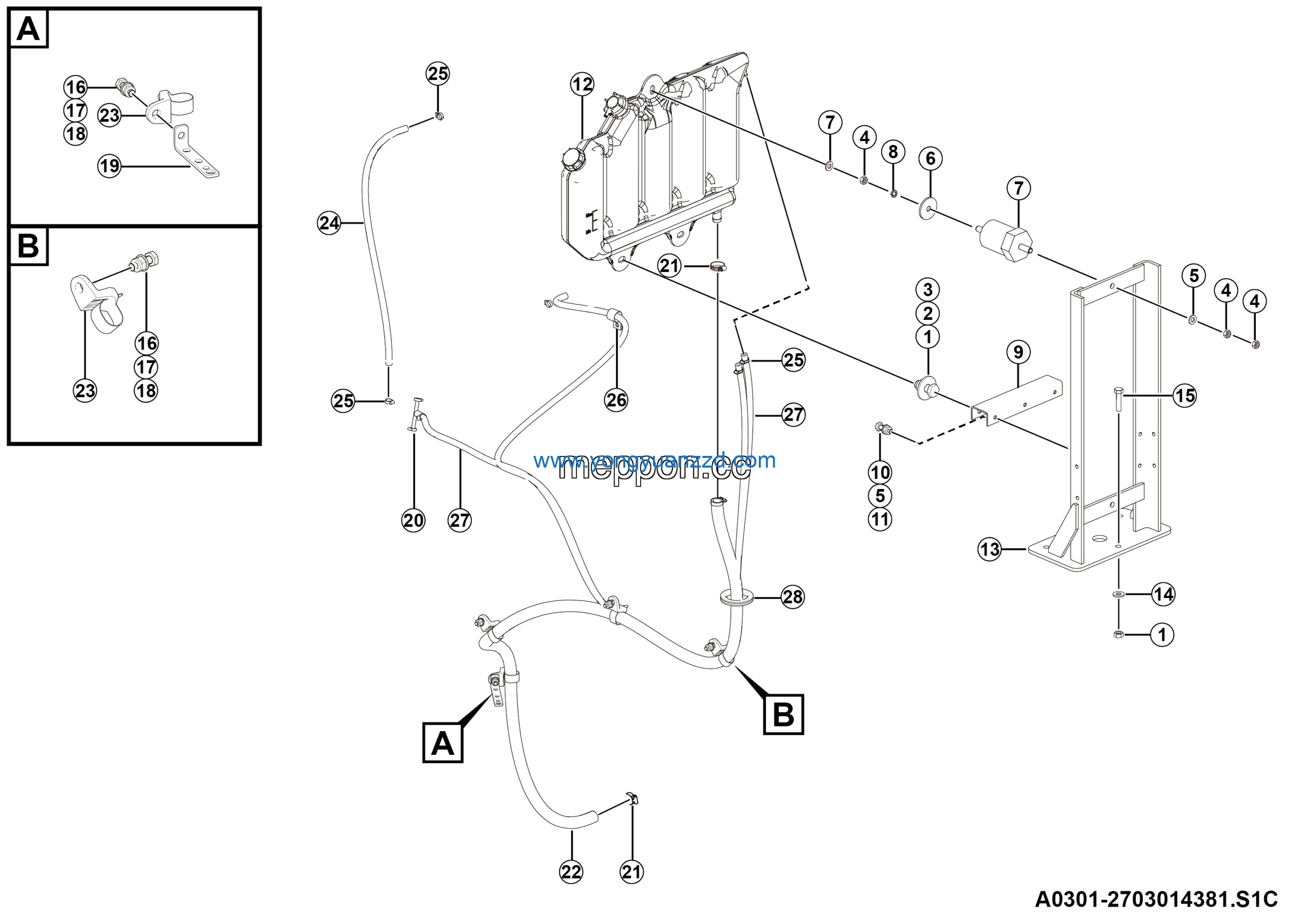

LGMG CMT66A 2025 – Expansion water tank assy – A0301-2703014381.S1C
Category: 2025 > CMT66A > C066AW3E0A022
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 2 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 2 |
| 3 | Expansion water tank | 4110000439 | 1 |
| 4 | Plate | 27030112621 | 1 |
| 5 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 6 | Bolt GB5782-M12*70EpZn-8.8 | 4011000212 | 3 |
| 7 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 9 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 10 | Plate | 27010113352 | 1 |
| 11 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 5 |
| 12 | Joint | 27030129621 | 1 |
| 13 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 14 | plate Ⅱ | 27030112651 | 1 |
| 15 | Cable tie HS-J117 | 4130704969 | 4 |
| 16 | Pipe | 27030144121 | 1 |
| 17 | Hose clamp JB8870-D16 | 4017010173 | 8 |
| 18 | Clamp R-D26-M10 | 4190707971 | 1 |
| 19 | Breath tube ii | 27030139991 | 2 |
| 20 | Grommet 60*3 | 27030161451 | 1 |
| 21 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 22 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 23 | Nut GB6170-M8EpZn-8 | 4013000033 | 3 |
| 24 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 25 | washer | 27030102011 | 1 |
| 26 | Rubber shock block | 4110000211 | 1 |
| 27 | Washer GB93-8-65Mn | 4015000036 | 1 |
| 28 | E*PANSION TANK BRACKET | 27030102221 | 1 |
