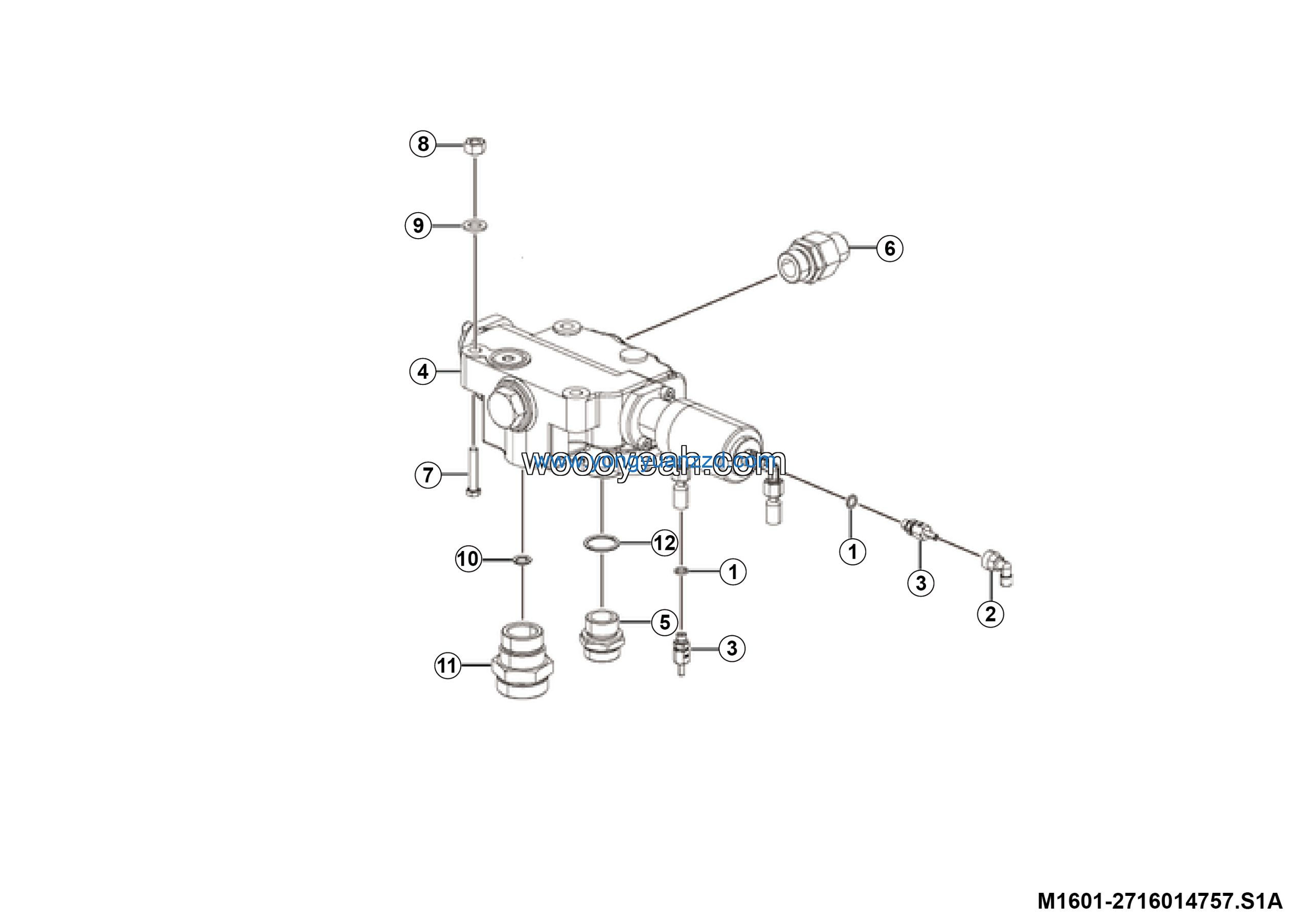

LGMG CMT66A 2025 – Lifting valve assy – M1601-2716014757.S1A
Category: 2025 > CMT66A > C066AW3E0A023
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | O-ring LGB168-13831 | 4041000878 | 1 |
| 2 | Nipple | 27160112291 | 1 |
| 3 | O-ring LGB168-12931 | 4041000765 | 3 |
| 4 | Copper washer 10 | 27100101091 | 2 |
| 5 | Combination joint LGB143-01205 | 4041010126 | 1 |
| 6 | Vertical nipple | 27130111131 | 2 |
| 7 | Lifting valve | 4120002439 | 1 |
| 8 | Straight joint LGB120-03633 | 4041000577 | 1 |
| 9 | Straight joint LGB120-03033 | 4041010955 | 2 |
| 10 | Bolt GB5782-M12*65EpZn-8.8 | 4011000261 | 3 |
| 11 | Nut GB6170-M12EpZn-8 | 4013000011 | 3 |
| 12 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
