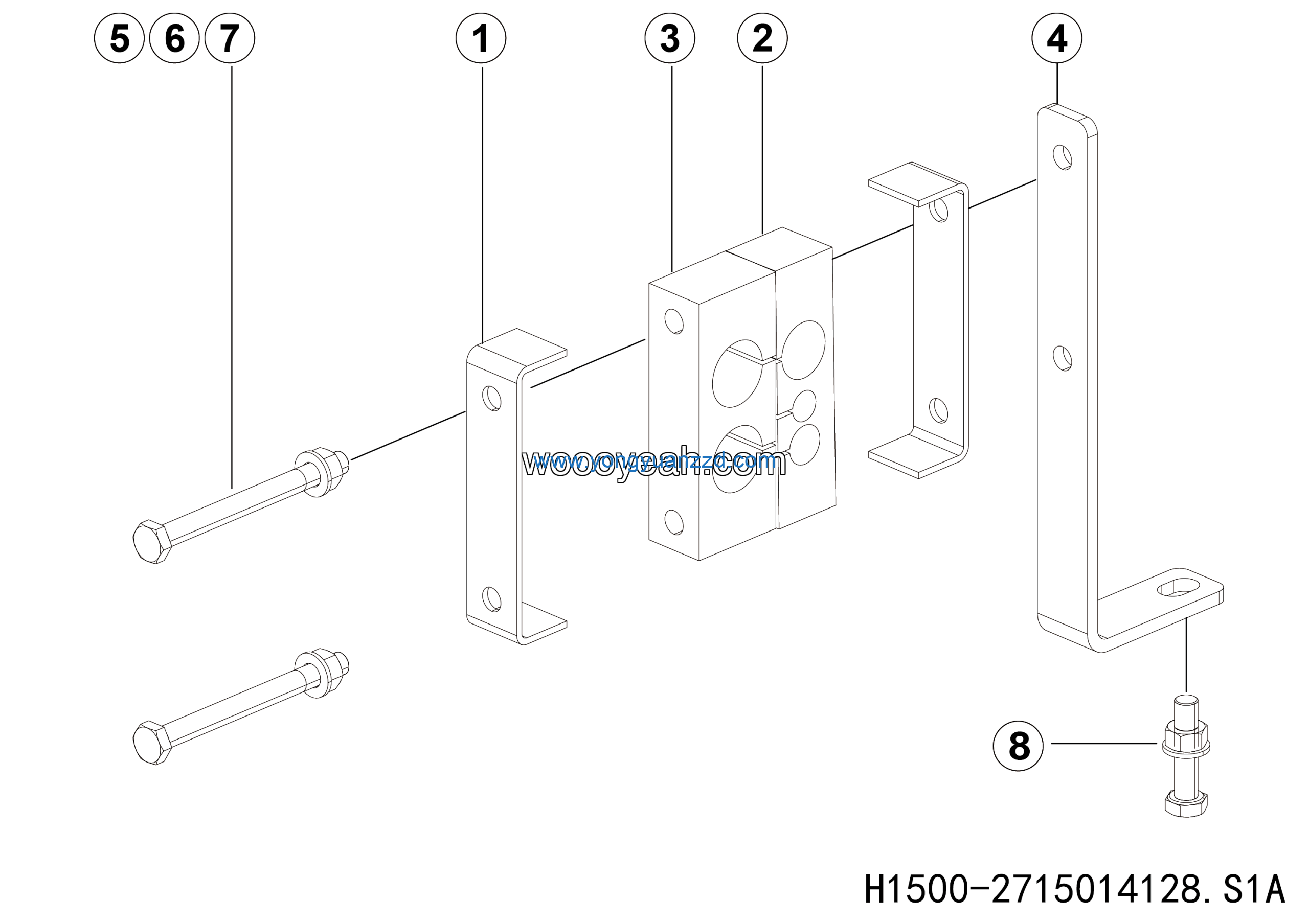

LGMG CMT66F 2025 – Bracket assy 06 – H1500-2715014128.S1A
Category: 2025 > CMT66F > C0660W4E0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27150109961 | 2 |
| 2 | Rubber clip | 27150109992 | 1 |
| 3 | Pipe rubber clamp 120*46*30 | 27150136001 | 1 |
| 4 | L-bracket 250*85*30 | 27150141391 | 1 |
| 5 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 2 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 3 |
| 8 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 1 |
