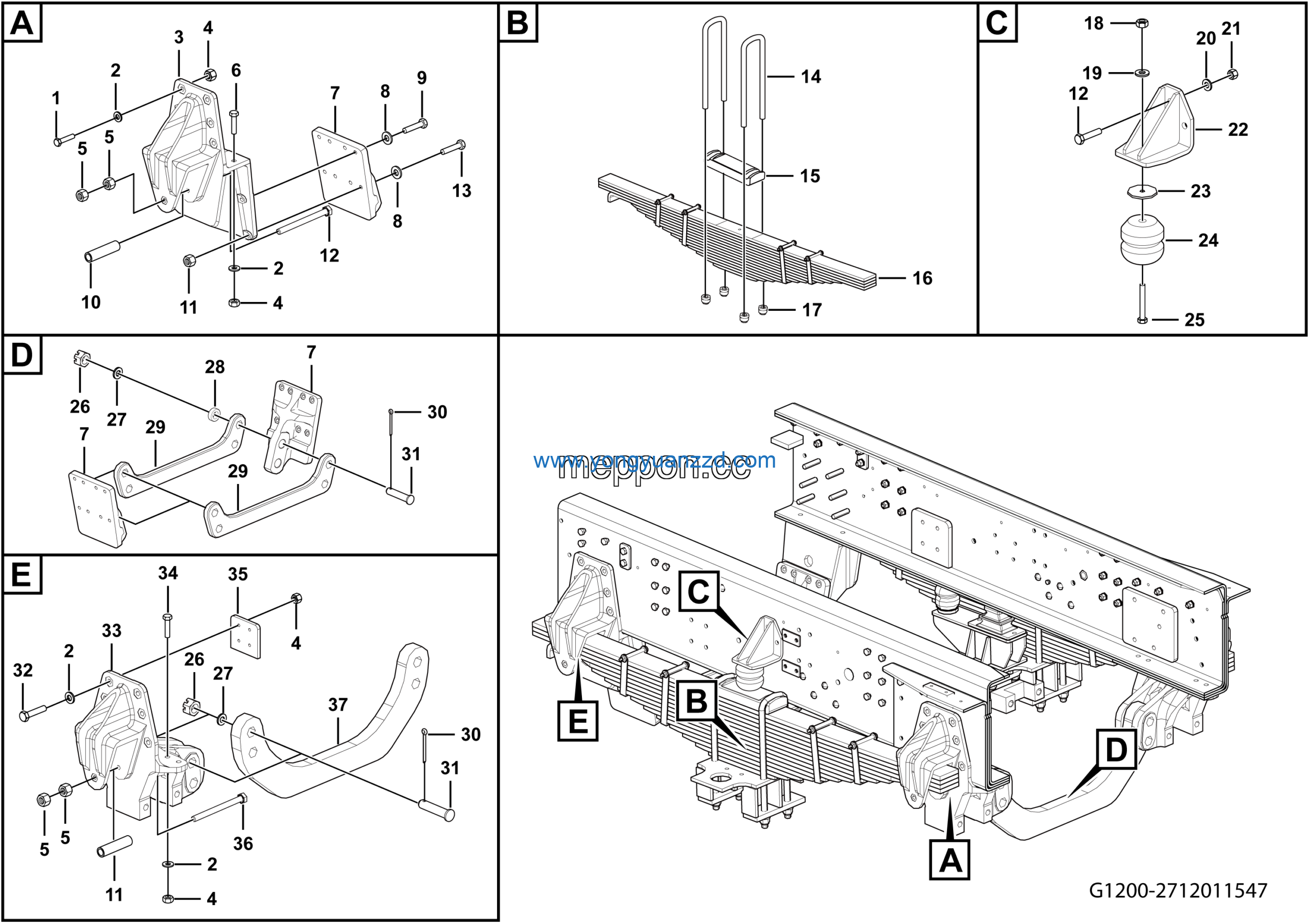

LGMG CMT70H Mine Truck – Front the thrusting rod mounting assembly – G1200-2712011547
Category: Mine Truck > CMT70H > C070HWA00
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt protection tube | 27120100211 | 4 |
| 2 | Nut GB6185.2-M16*1.5EpZn-10 | 4013010171 | 8 |
| 3 | BOLT GB5782-M14*55EpZn-8.8 | 4011000067 | 8 |
| 4 | Bolt GB5785-M16*1.5*80EpZn-10.9 | 4011010360 | 8 |
| 5 | Bolt | 27120115441 | 4 |
| 6 | Front spring clamp | 27120103591 | 2 |
| 7 | Front leaf spring assembly | 4110001214 | 2 |
| 8 | Self-locking nut with the shoulder | 27120103611 | 8 |
| 9 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 10 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 11 | Bolt GB5785-M18*1.5*70EpZn-10.9 | 4011000791 | 16 |
| 12 | Washer GB97.1-14EpZn-300HV | 4015000177 | 8 |
| 13 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 8 |
| 14 | The limiting block bracket | 27120115641 | 2 |
| 15 | washer | 27120112021 | 2 |
| 16 | Hollow rubber buffer block | 4190000636 | 2 |
| 17 | Bolt GB5782-M12*55EpZn-8.8 | 4011000186 | 2 |
| 18 | Nut GB6178-M36EpZn-10 | 4013010114 | 8 |
| 19 | Washer GB97.1-36EpZn-300HV | 4015000108 | 8 |
| 20 | Sleeve | 27120113901 | 2 |
| 21 | Second pole | 27120113961 | 2 |
| 22 | Washer 18 | 27120105412 | 36 |
| 23 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 8 |
| 24 | Pin | 27120113581 | 8 |
| 25 | Bolt | 4011010003 | 12 |
| 26 | Front leaf sring front support saddle | 27120113621 | 2 |
| 27 | Bolt GB5785-M18*1.5*90EpZn-10.9 | 4011010351 | 4 |
| 28 | Plate | 27120115481 | 2 |
| 29 | Bolt | 27120100221 | 4 |
| 30 | First cross beam | 27120114551 | 1 |
| 31 | Front leaf sring rear support saddle | 27120113611 | 2 |
| 32 | Nut GB6185.2-M18*1.5EpZn-10 | 4013010158 | 36 |
| 33 | Nut GB6170-M16EpZn-10 | 4013000205 | 8 |
| 34 | BOLT GB5785-M18*1.5*75pZn-10.9 | 4011000951 | 4 |
| 35 | Second beam seat | 27120113671 | 2 |
| 36 | Washer GB1230-16EpZn-45 | 4015000001 | 16 |
| 37 | Bolt GB5785-M16*1.5*60EpZn-10.9 | 4011010154 | 8 |
