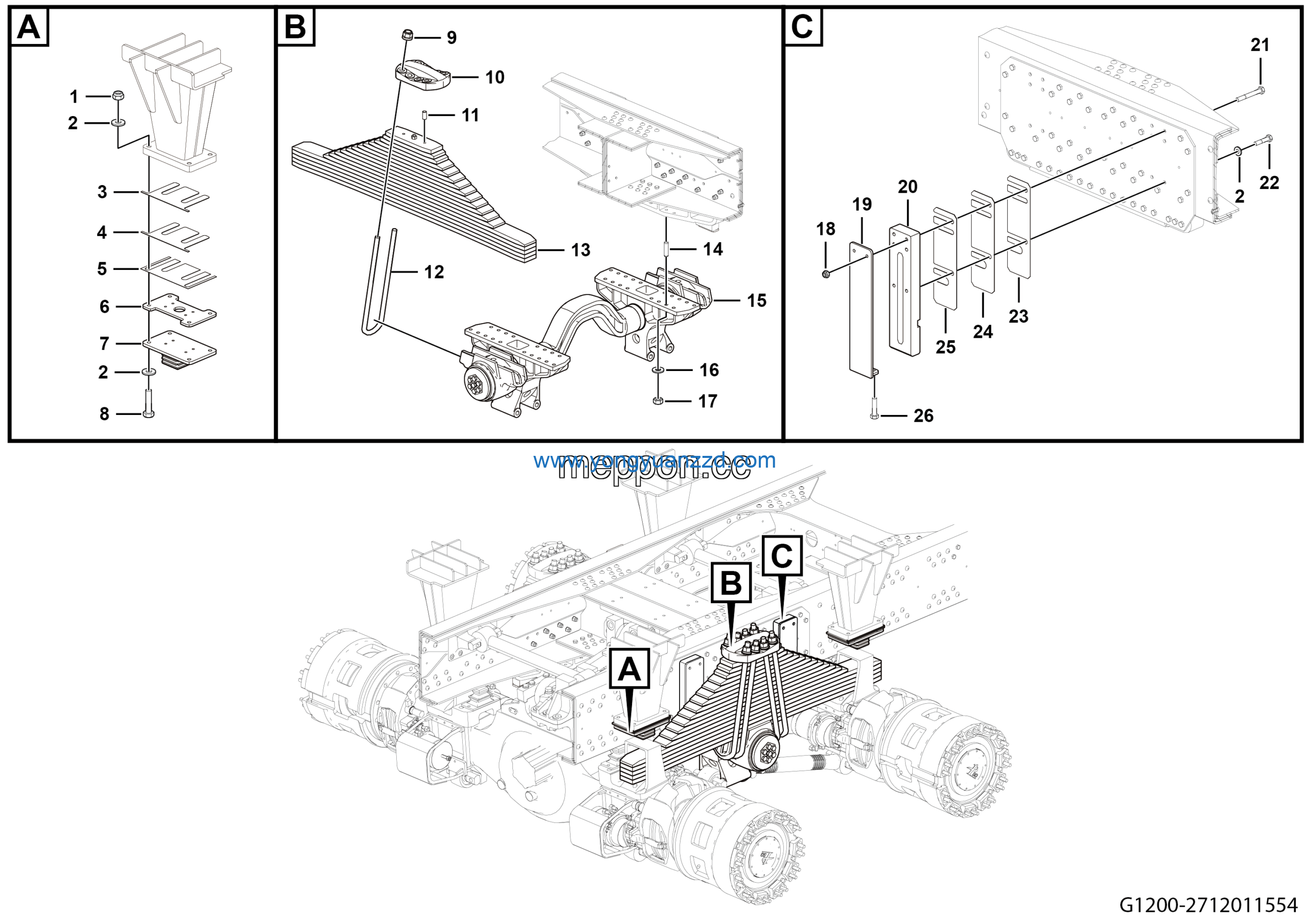

LGMG CMT70H Mine Truck – Rear leaf spring assembly – G1200-2712011554
Category: Mine Truck > CMT70H > C070HWA00
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rear leaf spring pressplate | 27120113451 | 2 |
| 2 | Pin | 27120113421 | 4 |
| 3 | U bolt | 27120111831 | 8 |
| 4 | RR leaf spring | 4110001215 | 2 |
| 5 | STUD GB899-A-M18*50-12.9 | 4012010105 | 36 |
| 6 | Balance suspension assembly | 4110001109 | 1 |
| 7 | Washer 18 | 27120105412 | 36 |
| 8 | No longer used | 4011010141 | 36 |
| 9 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
| 10 | Plate | 27120111101 | 4 |
| 11 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 16 |
| 12 | Side limiting cushion block | 27120112731 | 4 |
| 13 | Bolt GB5782-M16*140EpZn-8.8 | 4011000211 | 8 |
| 14 | Bolt GB5785-M16*1.5*80EpZn-8.8 | 4011010166 | 16 |
| 15 | Plate | 27120113161 | 8 |
| 16 | Plate | 27120113171 | 8 |
| 17 | Plate | 27120113181 | 8 |
| 18 | Bolt GB5786-M14*1.5*30-8.8 | 4011000903 | 8 |
| 19 | Washer GB97.1-16EpZn-300HV | 4015000181 | 32 |
| 20 | Adjusting shim | 27120114051 | 8 |
| 21 | Adjusting shim | 27120114071 | 8 |
| 22 | Adjustment gasket | 27120114041 | 8 |
| 23 | Plate | 27120114031 | 4 |
| 24 | RR plate spring vertical limit block | 4110001246 | 4 |
| 25 | Bolt GB5782-M16*90EpZn-10.9 | 4011000537 | 16 |
| 26 | Six angle with the shoulder self-locking nut | 27120103841 | 16 |
