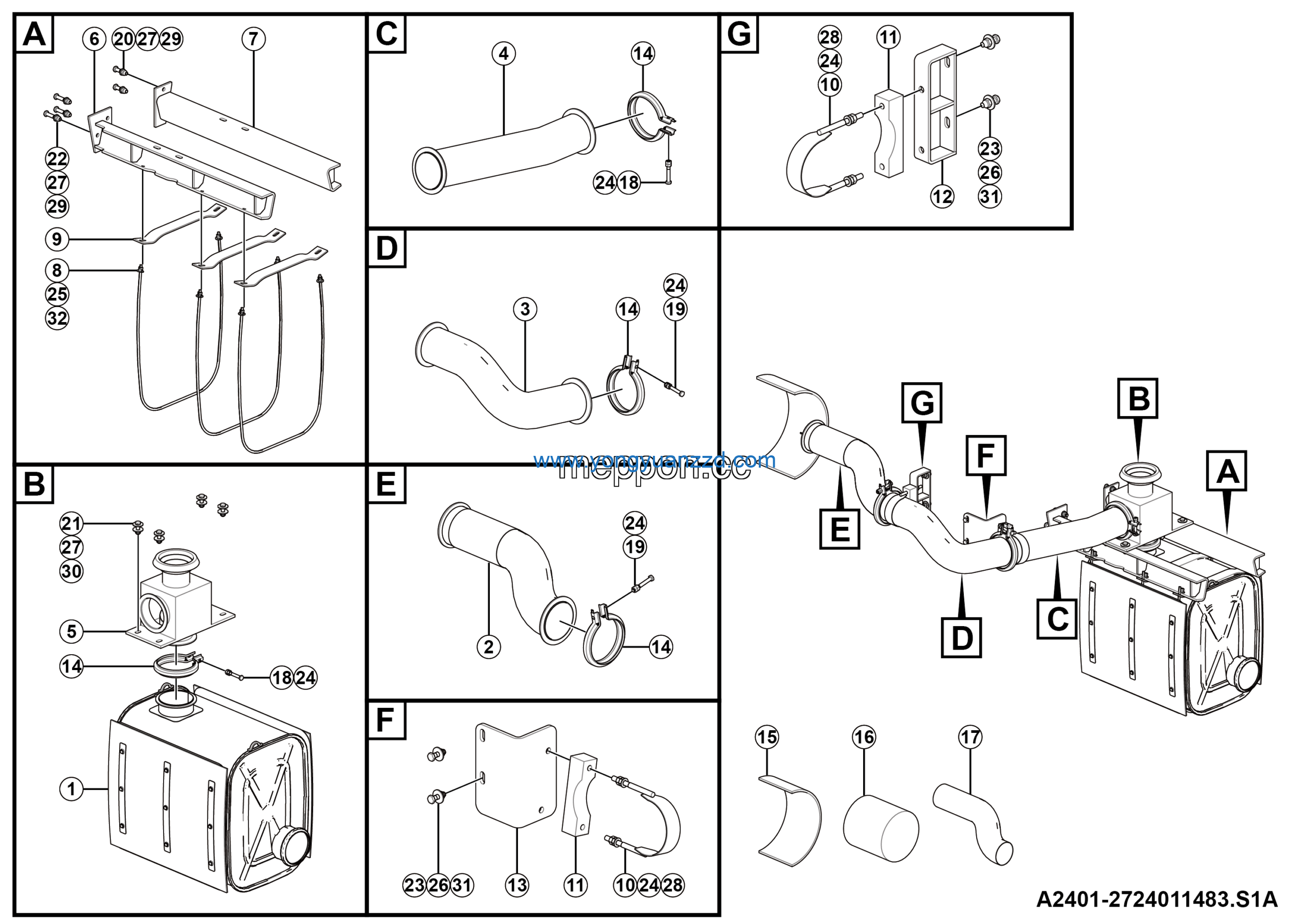

LGMG CMT96 2025 – Exhaust & heating sys – A2401-2724011483.S1A
Category: 2025 > CMT96 > C0960Y3E0M101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27240103051 | 2 |
| 2 | FRONT PLATE ASSEMBLY | 27240103721 | 2 |
| 3 | Supportⅰ | 27240104681 | 1 |
| 4 | L-shaped plate 210*128*115 | 27240114861 | 1 |
| 5 | Clamp | 4110000768 | 4 |
| 6 | Turbocharger heat insulation grm-lg-k16 | 4190713439 | 1 |
| 7 | Exhaust pipe heat insulation grm-lg-k16 | 4190713440 | 1 |
| 8 | Upr exhaust pipe heat insulation grm-lg-d120-550-w2 | 4190713441 | 1 |
| 9 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 2 |
| 10 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 2 |
| 11 | Muffler assy lg24-xyq-02 | 4190713027 | 1 |
| 12 | Bolt GB5782-M12*50EpZn-8.8 | 4011000064 | 2 |
| 13 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 14 | Bolt GB5782-M12*65EpZn-8.8 | 4011000261 | 3 |
| 15 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 4 |
| 16 | Nut GB6170-M10EpZn-8 | 4013000007 | 16 |
| 17 | Nut GB6170-M8EpZn-8 | 4013000033 | 12 |
| 18 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 19 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 9 |
| 20 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 21 | Washer GB97.1-12EpZn-300HV | 4015000168 | 5 |
| 22 | Upr exhaust pipe wldmt | 27240114841 | 1 |
| 23 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 24 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 25 | Washer GB96.1-8EpZn-300HV | 4015000256 | 6 |
| 26 | Exhaust pipe wldmt | 27240114851 | 1 |
| 27 | Exhaust pipe Ⅲ | 4110703098 | 1 |
| 28 | Exhaust conversion box assy | 4110001279 | 1 |
| 29 | Plate | 27010113411 | 1 |
| 30 | Plate | 27010110671 | 1 |
| 31 | TENSIONING LEVER | 27010101611 | 3 |
| 32 | Plate | 27010110711 | 3 |
