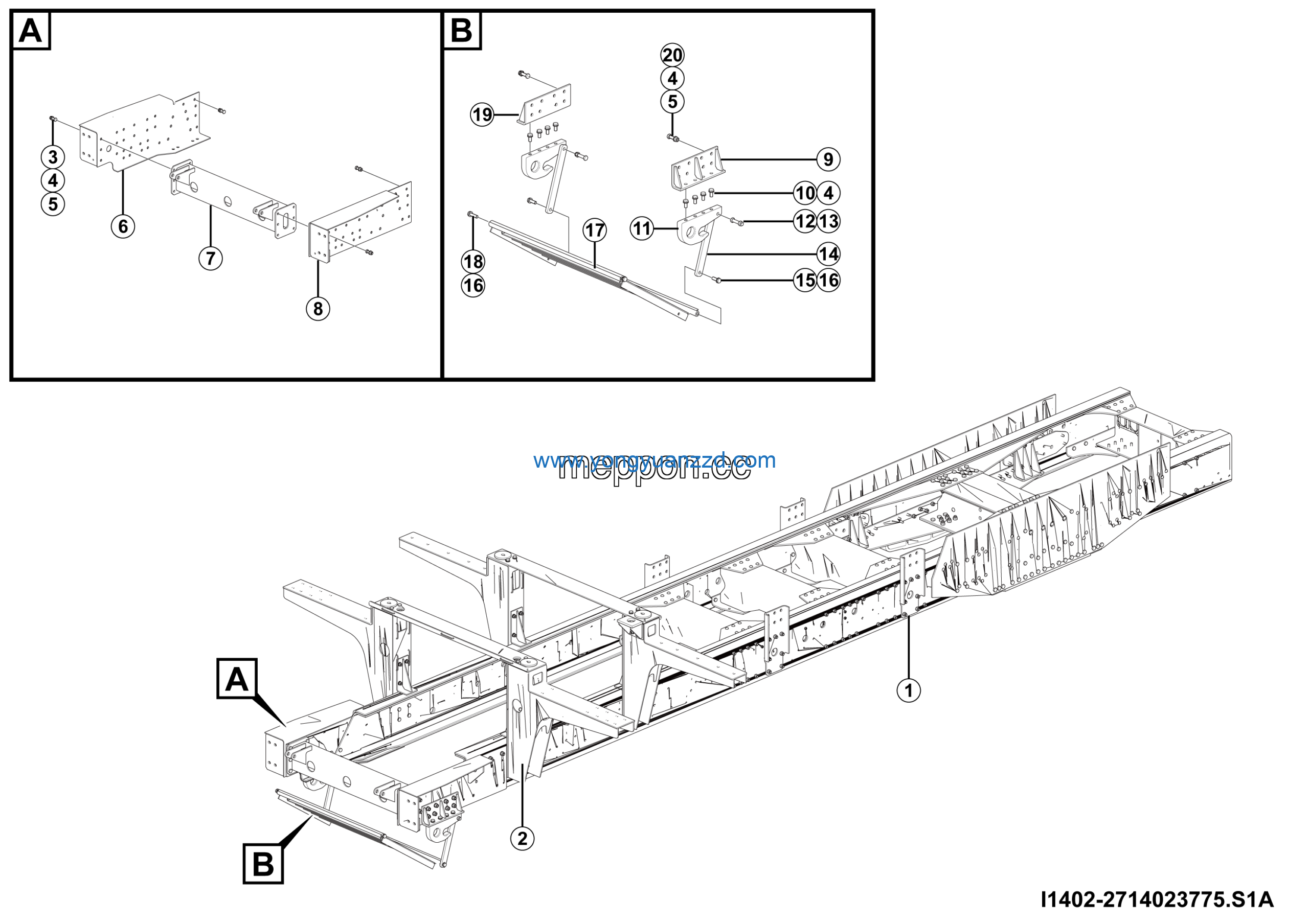

LGMG CMT96 2025 – Frame assy – I1402-2714023775.S1A
Category: 2025 > CMT96 > C0960Y3E0M101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5786-M16*1.5*35flZnyc-12.9-480 | 4011010534 | 8 |
| 2 | Front traction hook | 27140180991 | 2 |
| 3 | BOLT GB5785-M16*1.5*75EpZn-8.8 | 4011010461 | 2 |
| 4 | Nut GB6185.2-M16*1.5EpZn-8 | 4013010168 | 2 |
| 5 | Connecting rod | 27140123531 | 2 |
| 6 | Bolt GB5786-M16*1.5*45EpZn-8.8 | 4011000494 | 2 |
| 7 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 8 | Chasiss | 27140149481 | 1 |
| 9 | Bolt GB5786-M16*1.5*55EpZn-8.8 | 4011000698 | 2 |
| 10 | Right side bracke | 27140123481 | 1 |
| 11 | Frame | 27140237761 | 1 |
| 12 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 4 |
| 13 | Walkway brackets installation | 27140238001 | 1 |
| 14 | Bolt GB5786-M16*1.5*50flZnyc-12.9-480 | 4011010555 | 28 |
| 15 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 40 |
| 16 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 32 |
| 17 | Rh front connection plate wldmt | 27140238191 | 1 |
| 18 | SATE | 27140132811 | 1 |
| 19 | Lh front connection plate wldmt | 27140238171 | 1 |
| 20 | Left side bracket | 27140123491 | 1 |
