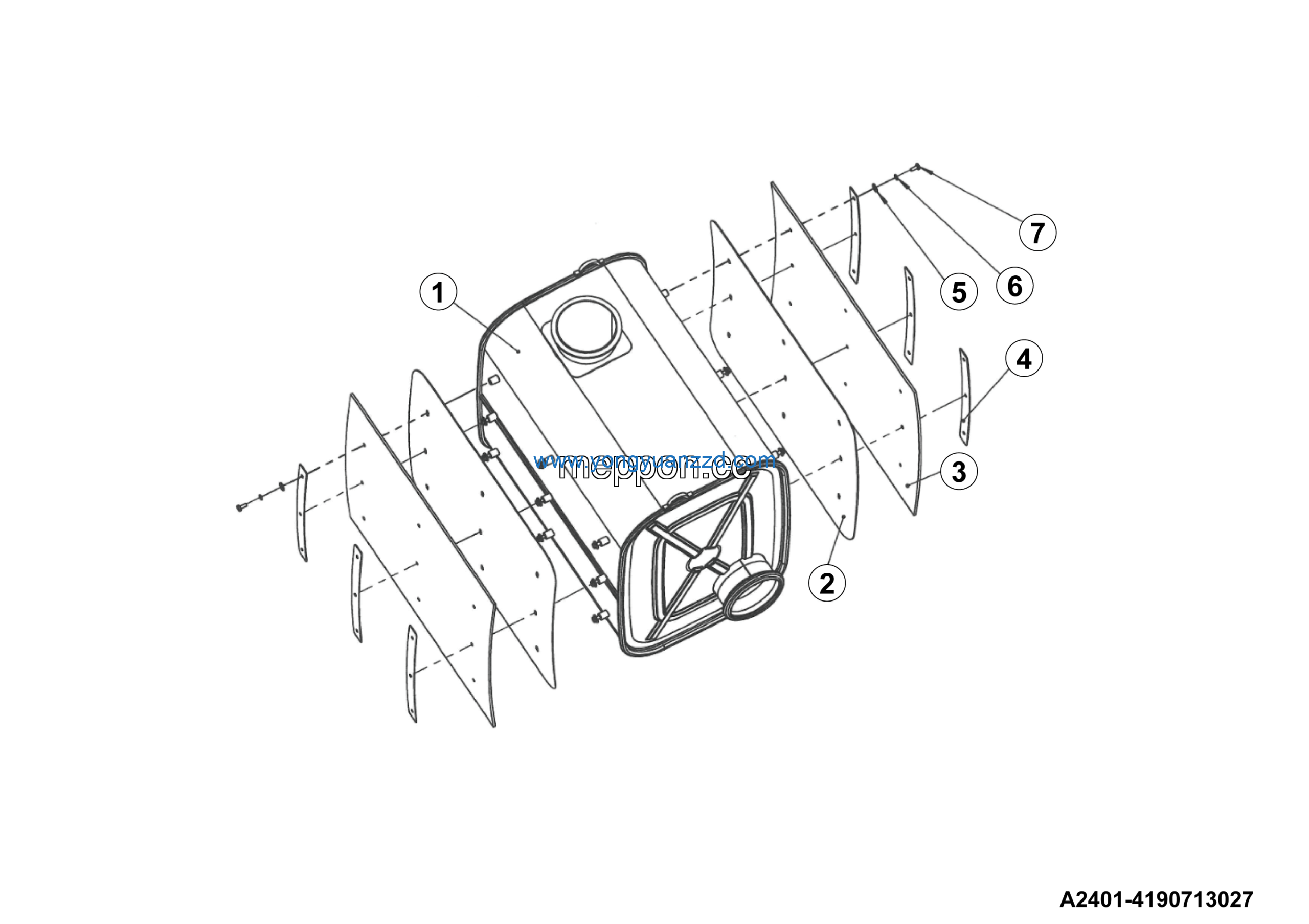

LGMG CMT96 2025 – Muffler assy lg24-xyq-02 – A2401-4190713027
Category: 2025 > CMT96 > C0960Y3E0M101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Muffler | 4190713027001 | 1 |
| 2 | Heat shield | 4190713027002 | 2 |
| 3 | Heat insulation | 4190713027003 | 2 |
| 4 | Rib | 4190713027004 | 6 |
| 5 | Washer GB93-6flZnyc-65Mn-480 | 4015010375 | 18 |
| 6 | Washer gb96.2-6f1znyc-300hv-480 | 4190713027005 | 18 |
| 7 | Bolt GB5783-M6*16flZnyc-8.8-480 | 4011010747 | 18 |
