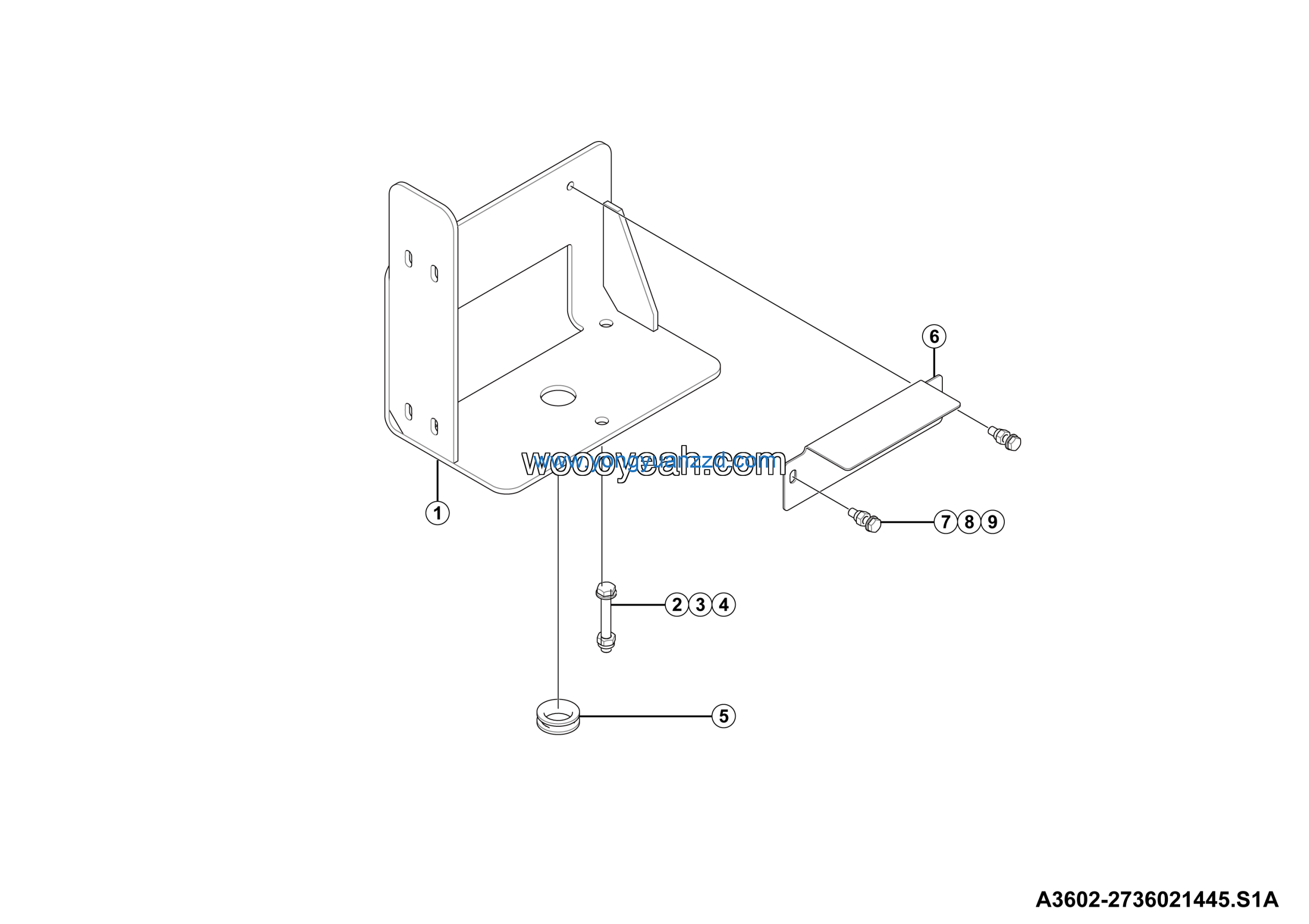

LGMG CMT96 2025 – Washer fluid reservoir & extinguisher bracket installation – A3602-2736021445.S1A
Category: 2025 > CMT96 > C0960WG32
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer fluid reservoir & extinguisher bracket wldmt | 27360214461 | 1 |
| 2 | Bolt GB5783-M10*70EpZn-8.8 | 4011000413 | 3 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 4 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 3 |
| 5 | Rubber sleeve | 28219900091 | 1 |
| 6 | Plate | 27130119081 | 1 |
| 7 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 2 |
| 8 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 9 | Nut GB889.1-M8EpZn-8 | 4013000210 | 2 |
