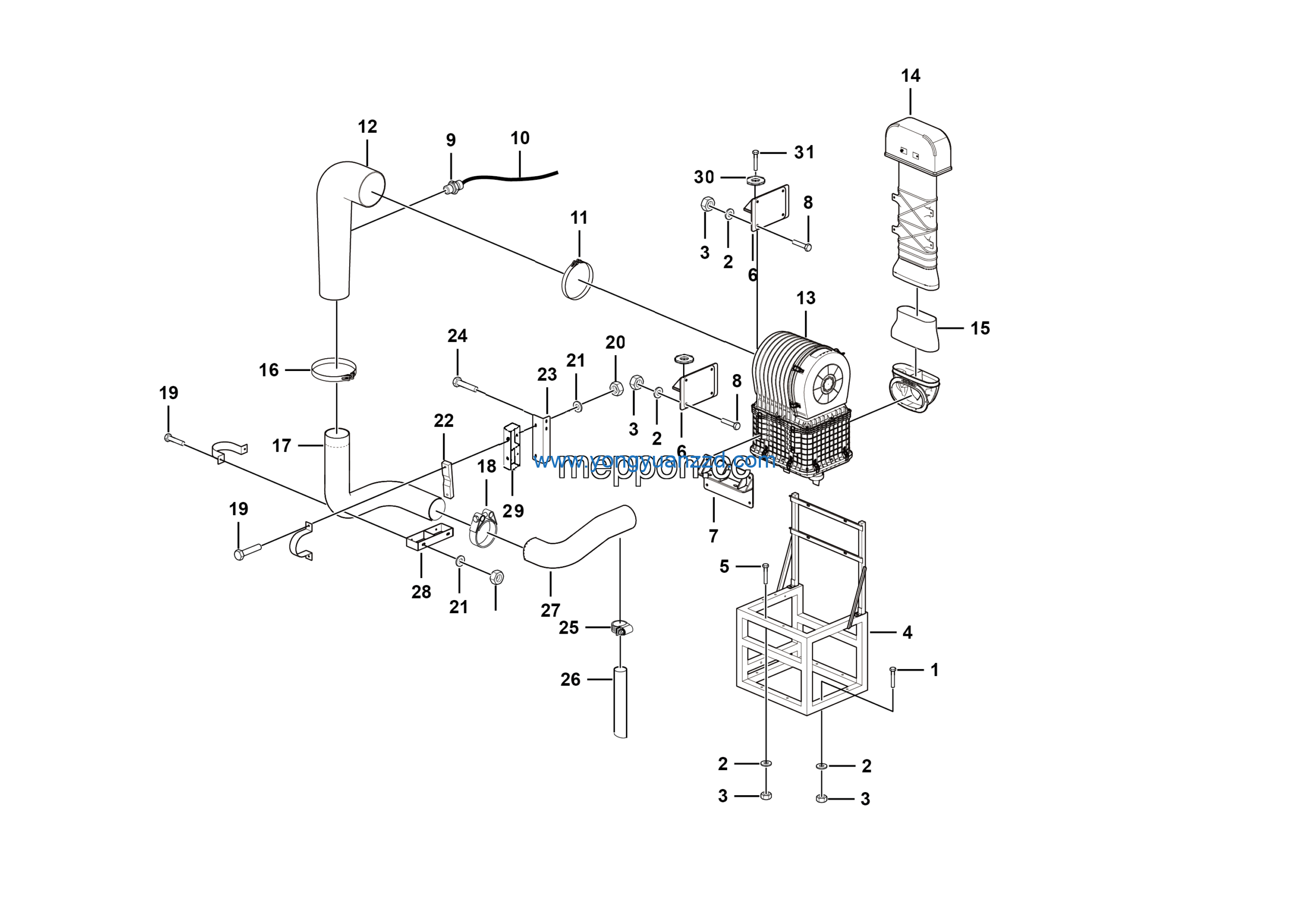

LGMG CMT96 Mine Truck – Air filter assy – A1800-2718010463
Category: Mine Truck > CMT96 > C0960WE84
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | CAB WIRE | 27200109531 | 1 |
| 2 | T-bolt clamp φ188-φ196 | 4190002630 | 1 |
| 3 | Air filter intake hose-Air filter end | 4110001951 | 1 |
| 4 | Air filter assy（Donaldson） | 4190002628 | 1 |
| 5 | High level intake assy | 4190002593 | 1 |
| 6 | Connecting hose | 4190002594 | 1 |
| 7 | T-Hoop φ148-φ156 | 4190002629 | 3 |
| 8 | WASHER | 27180104691 | 1 |
| 9 | Clamp | 27180102911 | 2 |
| 10 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 6 |
| 11 | Bolt GB5782-M12*155EpZn-8.8 | 4011000392 | 8 |
| 12 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 10 |
| 13 | Washer GB96.1-10EpZn-300HV | 4015000197 | 10 |
| 14 | PLATE | 27180104241 | 2 |
| 15 | PLATE | 27180104681 | 1 |
| 16 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 4 |
| 17 | Hose clamp JB8870-D32 | 4017000011 | 1 |
| 18 | Pipe | 27180102832 | 1 |
| 19 | BEAM | 27180104251 | 1 |
| 20 | Frame | 27180103241 | 1 |
| 21 | PLATE | 27180104641 | 1 |
| 22 | Washer GB96.1-12EpZn-300HV | 4015000186 | 22 |
| 23 | Plate | 27030109731 | 10 |
| 24 | Bolt GB5782-M12*100EpZn-8.8 | 4011000335 | 2 |
| 25 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 14 |
| 26 | Fixed bracket | 4190002592 | 1 |
| 27 | Bolt GB5782-M12*75EpZn-8.8 | 4011000874 | 6 |
| 28 | Support assembly ⅱ | 27180103021 | 1 |
| 29 | Support assembly ⅰ | 27180102961 | 1 |
| 30 | Bolt GB16674.1-M10*25EpZn-12.9 | 4011010295 | 8 |
| 31 | Vacuum level alarm | 4110001427 | 1 |
