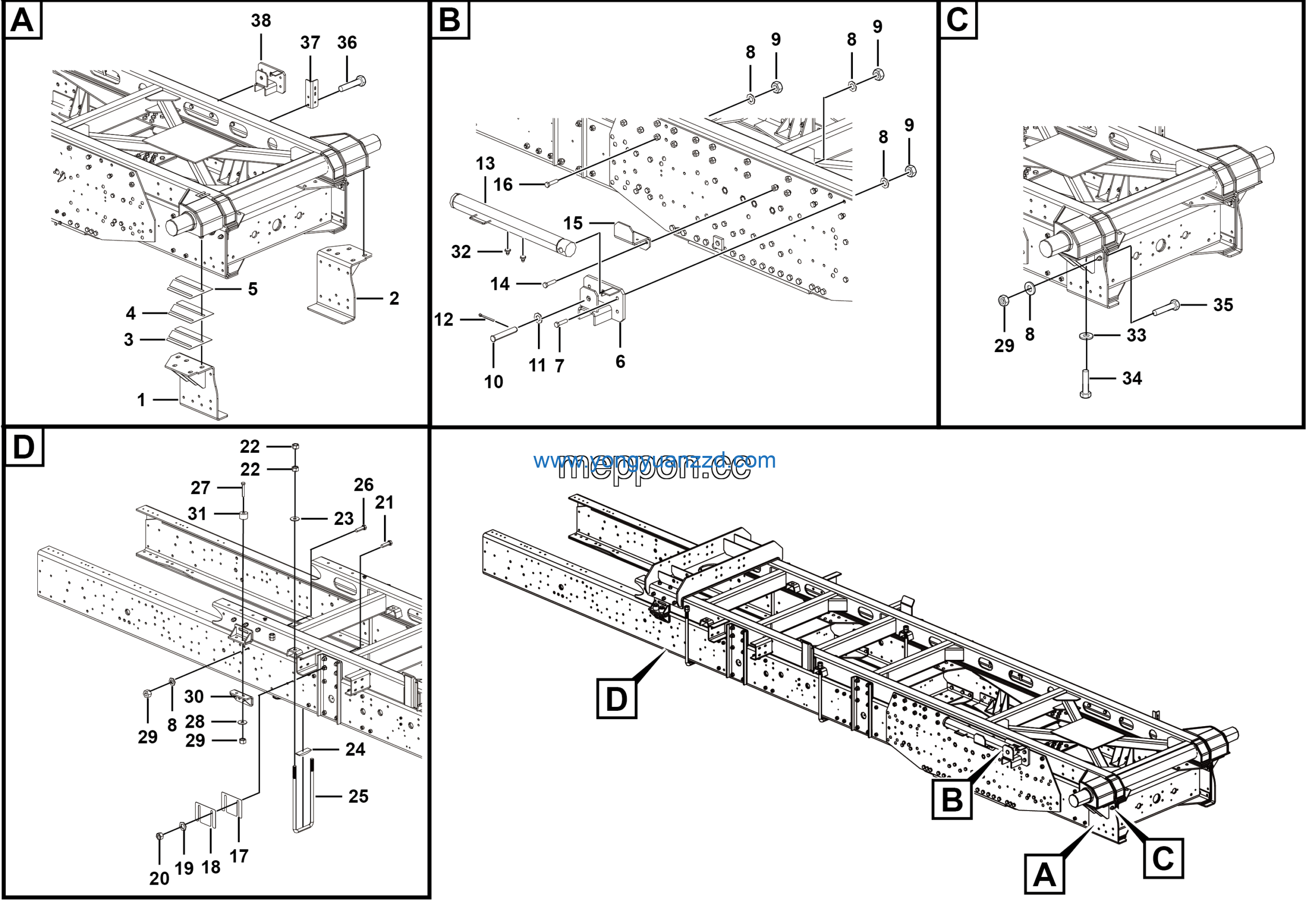

LGMG CMT96 Mine Truck – Attaching assembly – I1500-2740010420
Category: Mine Truck > CMT96 > C0960WE61
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose assembly | 27400103401 | 2 |
| 2 | WASHER GB97.1-34EpZn-300HV | 4015010301 | 2 |
| 3 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 2 |
| 4 | Pipe | 27400102601 | 2 |
| 5 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 4 |
| 6 | Assembly | 27170117352 | 2 |
| 7 | Bolt GB5783-M16*45EpZn-8.8 | 4011000205 | 48 |
| 8 | Adjustment gasket | 27400102132 | 4 |
| 9 | Adjustment gasket | 27400102122 | 4 |
| 10 | Washer GB97.1-18EpZn-300HV | 4015000182 | 32 |
| 11 | PLATE | 27400101914 | 1 |
| 12 | Nut GB6171-M18*1.5flZnyc-12-480 | 4013010257 | 16 |
| 13 | Bolt GB5785-M18*1.5*50flZnyc-12.9-480 | 4011010829 | 16 |
| 14 | PLATE | 27400103501 | 8 |
| 15 | Washer GB97.1-24EpZn-300HV | 4015000167 | 8 |
| 16 | Plate | 27400104181 | 4 |
| 17 | PLATE | 27400103492 | 4 |
| 18 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 18 |
| 19 | Bolt GB5786-M16*1.5*55flZnyc-12.9-480 | 4011010640 | 6 |
| 20 | Bolt GB5785-M16*1.5*90flZnyc-12.9-480 | 4011010558 | 4 |
| 21 | No longer used | 4015000305 | 8 |
| 22 | Plate | 27400101894 | 1 |
| 23 | Seat | 27170133151 | 2 |
| 24 | Block | 27170133181 | 4 |
| 25 | Fastening bolt damping block | 27170140901 | 4 |
| 26 | Bolt GB5782-M20*60flZnyc-12.9-480 | 4011010959 | 12 |
| 27 | Washer GB1230-20EpZn-45 | 4015000002 | 24 |
| 28 | Bolt GB5785-M16*1.5*70flZnyc-12.9-480 | 4011010598 | 8 |
| 29 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 30 | PLATE | 27170128381 | 1 |
| 31 | Plate | 27400102561 | 1 |
| 32 | Nut GB6185.1-M20flZnyc-12-480 | 4013010256 | 12 |
| 33 | Plate | 27400102043 | 2 |
| 34 | Plate | 27400102023 | 2 |
| 35 | Adjusting shim | 27170117261 | 2 |
| 36 | Plate | 27400102551 | 1 |
| 37 | Bolt GB5782-M16*65EpZn-8.8 | 4011000459 | 8 |
| 38 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 60 |
| 39 | Washer GB97.1-16EpZn-300HV | 4015000181 | 148 |
