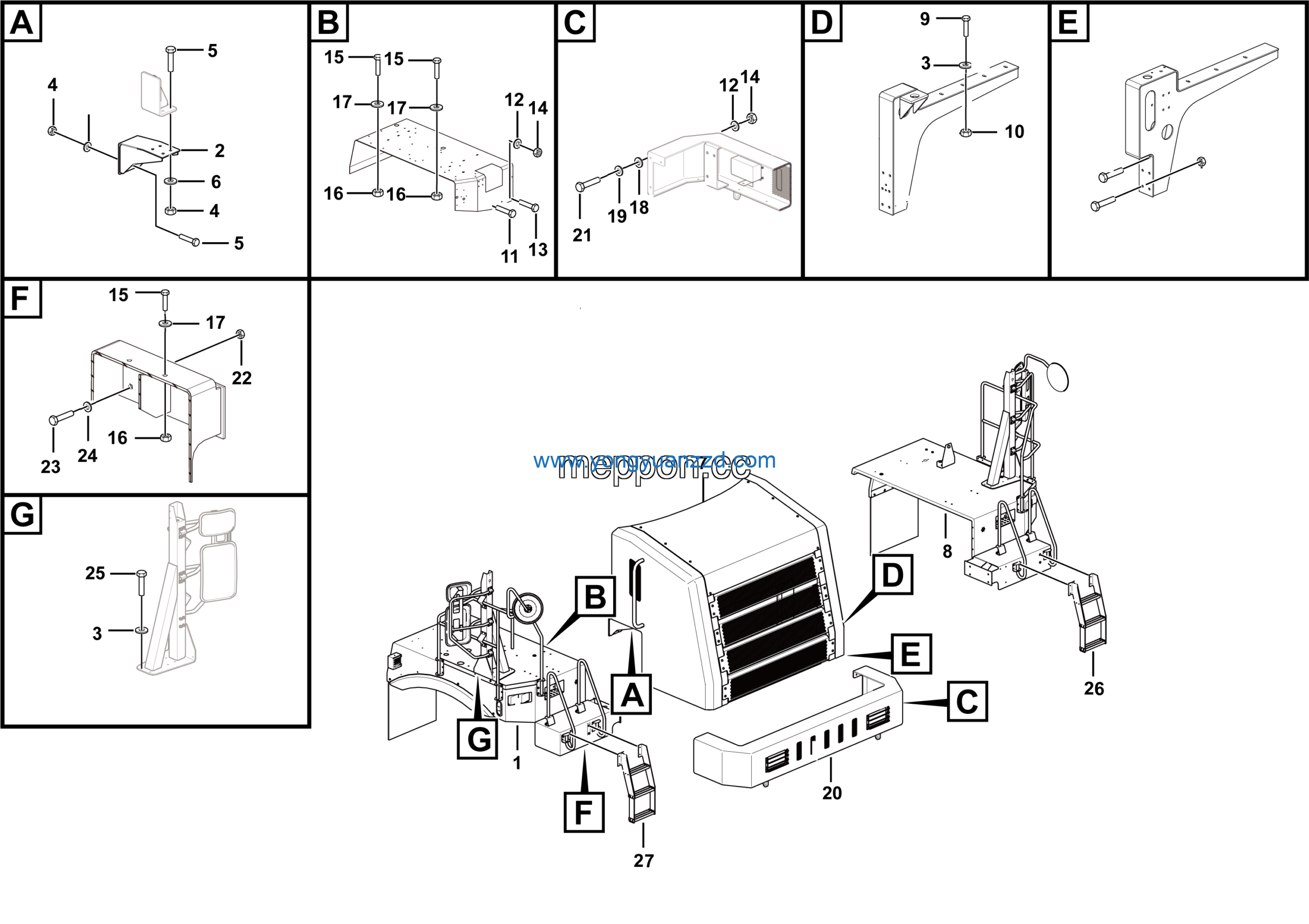

LGMG CMT96 Mine Truck – Cover assembly – L3601-2736011553
Category: Mine Truck > CMT96 > C0960WE43
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M12EpZn-10 | 4013010134 | 26 |
| 2 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 2 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 12 |
| 4 | Bolt GB5782-M16*60EpZn-8.8 | 4011000068 | 10 |
| 5 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 12 |
| 6 | Bolt GB5783-M14*35EpZn-8.8 | 4011000191 | 4 |
| 7 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 4 |
| 8 | Washer GB97.1-14EpZn-300HV | 4015000177 | 4 |
| 9 | Trimmed gasket | 27130107671 | 4 |
| 10 | Trimmed gasket | 27130107681 | 4 |
| 11 | Right walking board | 27360114961 | 1 |
| 12 | Bumper assembly | 27360114871 | 1 |
| 13 | No longer used | 4015000305 | 8 |
| 14 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
| 15 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 6 |
| 16 | Washer GB96.1-10EpZn-300HV | 4015000197 | 6 |
| 17 | Bolt GB5782-M12*120EpZn-10.9 | 4011010510 | 8 |
| 18 | REAR AXLE ASSEMBLY | 27360115571 | 1 |
| 19 | FRONT AXLE ASSEMBLY | 27360115601 | 1 |
| 20 | Support | 27360115341 | 2 |
| 21 | Washer GB96.1-12EpZn-300HV | 4015000186 | 34 |
| 22 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 24 |
| 23 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 24 |
| 24 | Washer GB97.1-12EpZn-300HV | 4015000168 | 16 |
| 25 | Hood cover assy | 27360115551 | 1 |
| 26 | Left platform assembly | 27360115201 | 1 |
| 27 | Bolt GB5782-M12*110EpZn-10.9 | 4011010519 | 18 |
