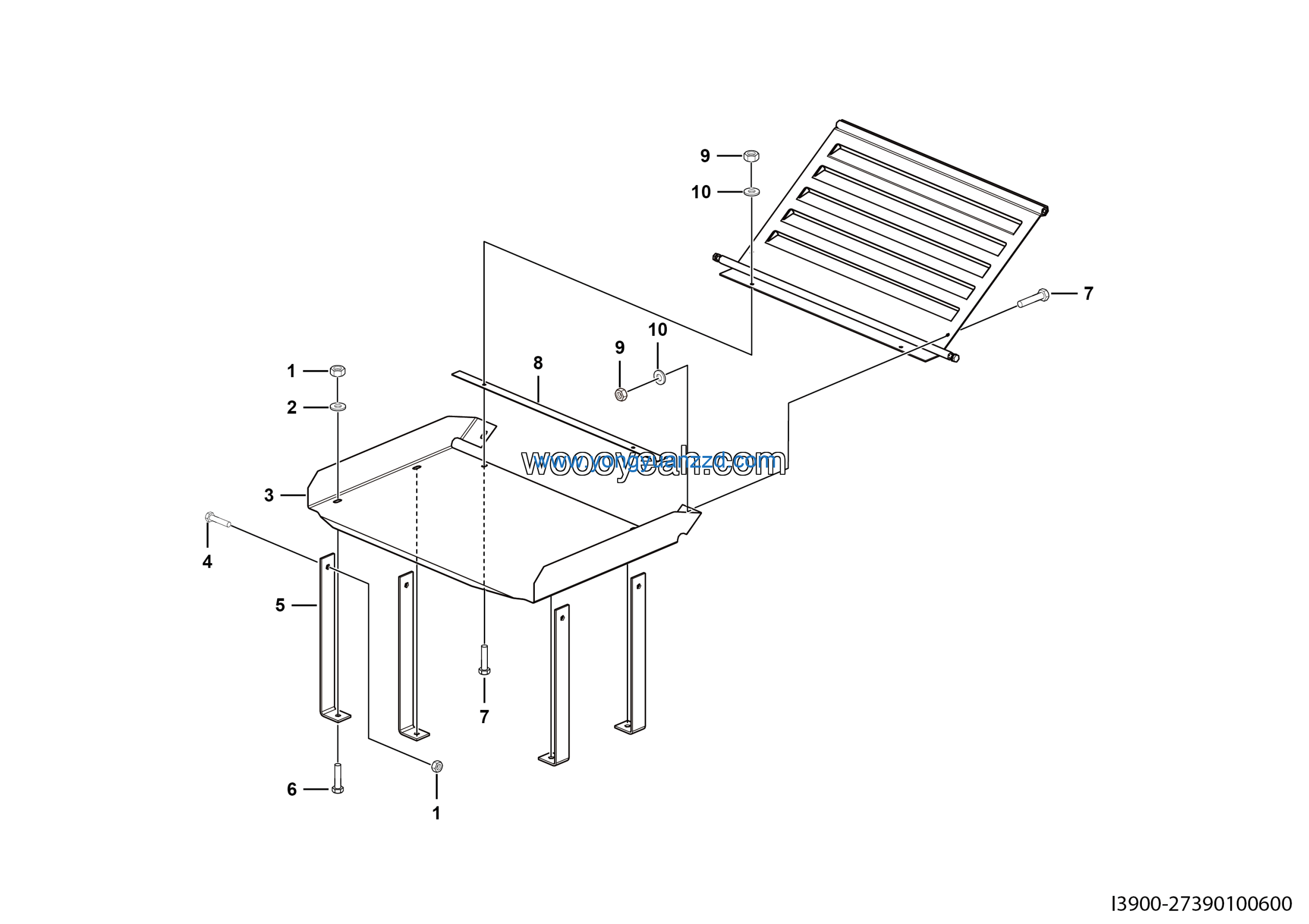

LGMG CMT96 Mine Truck – Fan guide assembly – I3900-2739010060
Category: Mine Truck > CMT96 > C0960WE10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 8 |
| 2 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
| 3 | Washer GB96.1-12EpZn-300HV | 4015000186 | 4 |
| 4 | Wind deflector | 27390100611 | 1 |
| 5 | Bolt GB5782-M14*50EpZn-8.8 | 4011000267 | 4 |
| 6 | Connectingplate | 27390100621 | 4 |
| 7 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 4 |
| 8 | Bolt GB5783-M14*30EpZn-8.8 | 4011000265 | 4 |
| 9 | Rubber | 27390100631 | 1 |
| 10 | Washer GB96.1-14EpZn-300HV | 4015000188 | 4 |
