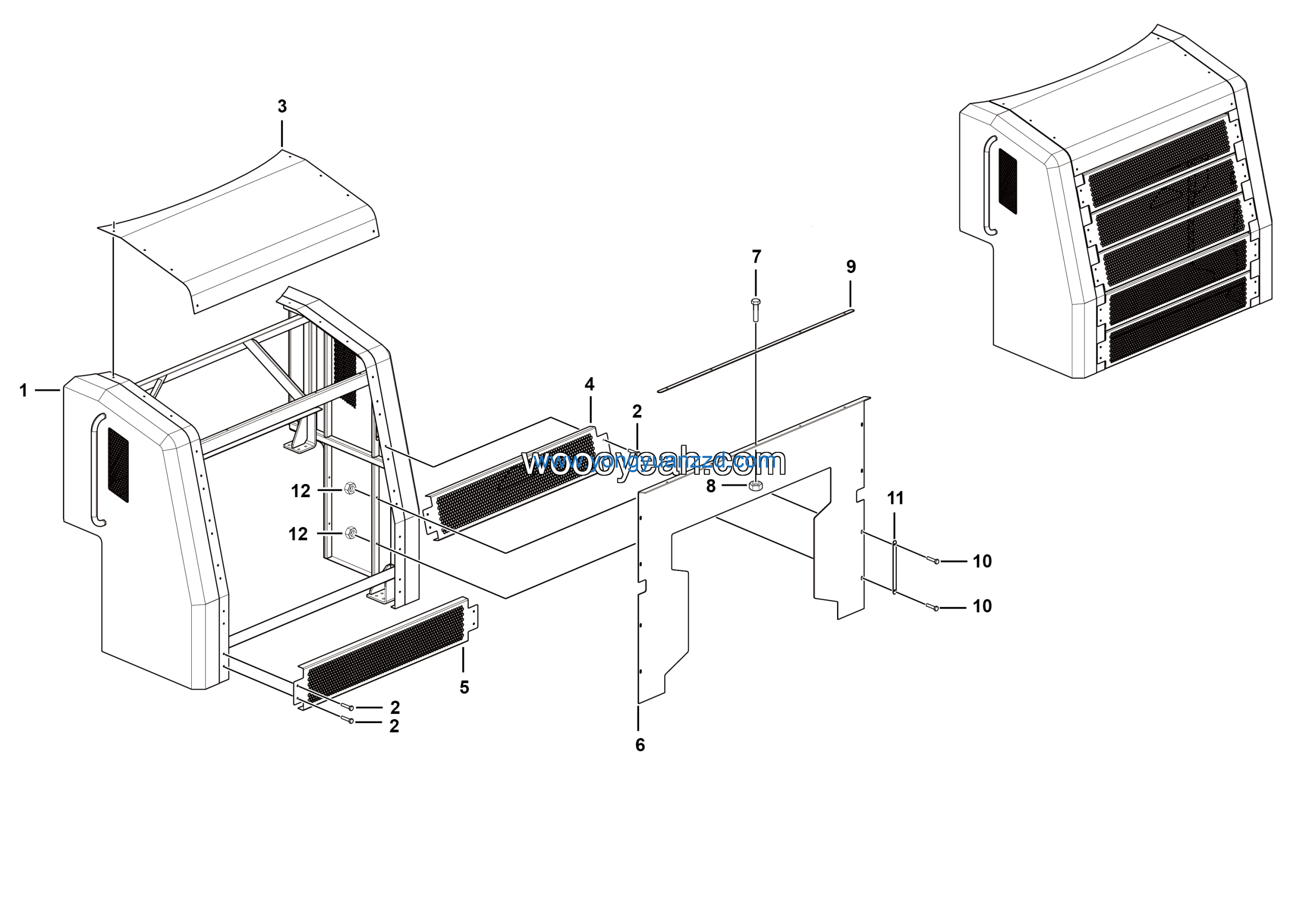

LGMG CMT96 Mine Truck – Hood cover assy – L3600-2736011555
Category: Mine Truck > CMT96 > C0960WE61
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 8 |
| 2 | Plate | 27360109021 | 4 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 24 |
| 4 | Hood assy | 27360110221 | 1 |
| 5 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 24 |
| 6 | Hood cover plate assy | 27360110231 | 1 |
| 7 | Plate | 27360114121 | 3 |
| 8 | Plate ⅱ | 27360114131 | 1 |
| 9 | Rubber windshield | 27360115561 | 1 |
| 10 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 5 |
| 11 | Nut GB6170-M8EpZn-8 | 4013000033 | 13 |
| 12 | Plate | 27360108931 | 1 |
