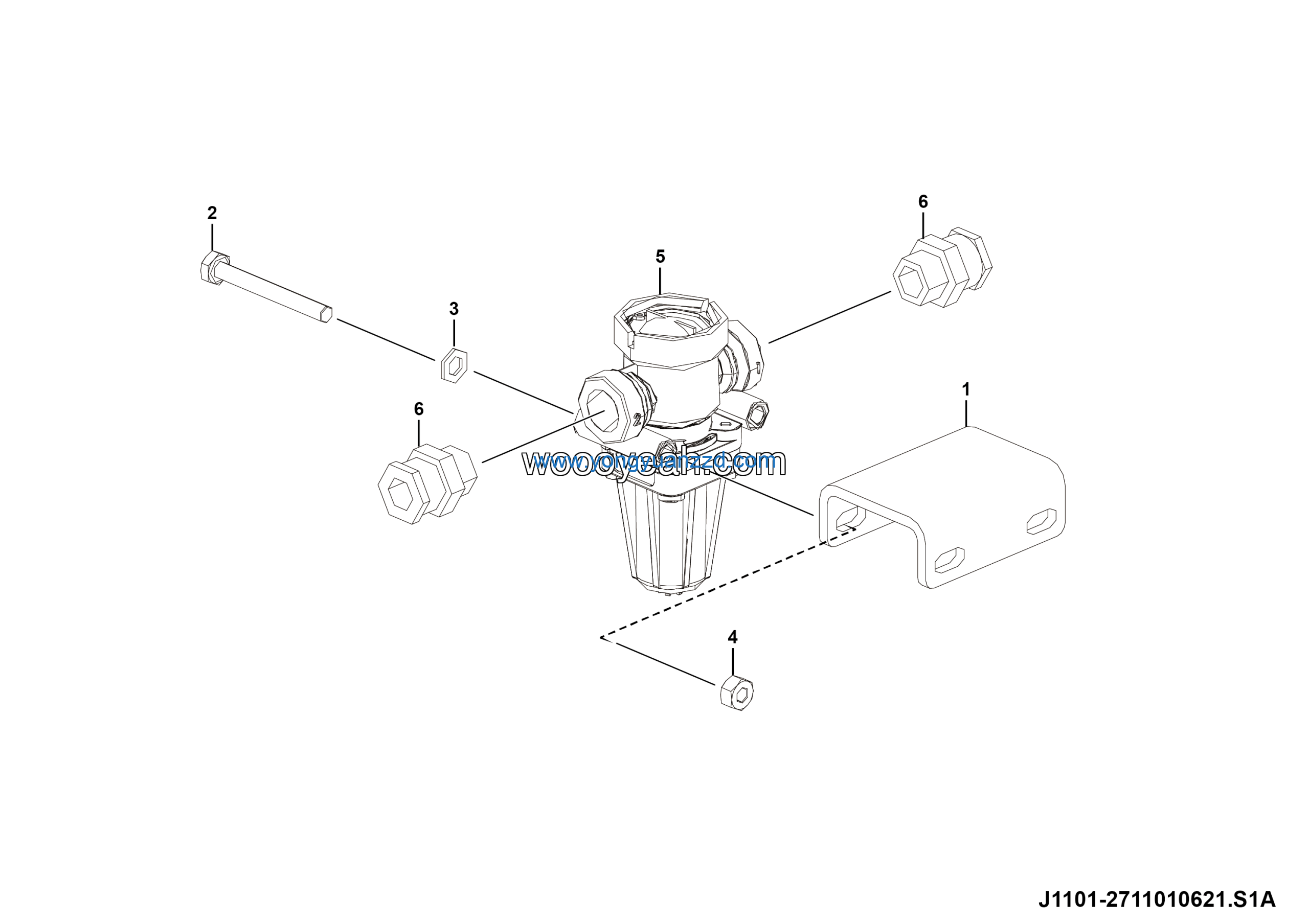

LGMG CMT96A 2025 – ASM-Pressure Limiting Valve Installation assy – J1101-2711010621.S1A
Category: 2025 > CMT96A > C096AY3E0A006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Anchor bracket | 27110102472 | 1 |
| 2 | Bolt GB5782-M8*65EpZn-8.8 | 4011000301 | 2 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 4 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 5 | Pressure limiting valve | 4120001472 | 1 |
| 6 | Transition joint M22*1.5/NG12 | 4120001552 | 2 |
