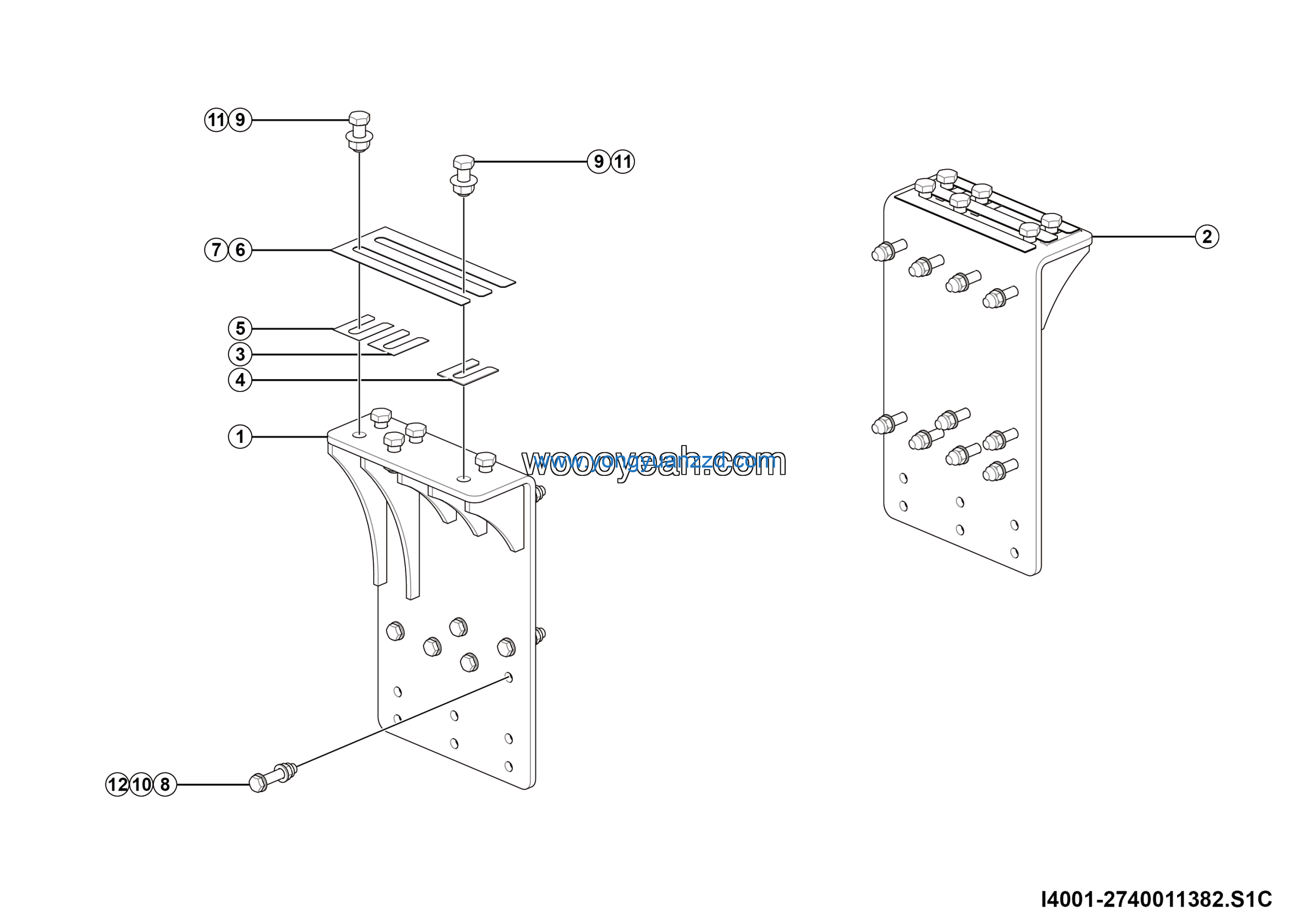

LGMG CMT96A 2025 – Body hinge support assy – I4001-2740011382.S1C
Category: 2025 > CMT96A > C096AY3E0A008
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 20 |
| 2 | Nut GB6177.2-RLM20*1.5flZnyc-12-480 | 4013010565 | 12 |
| 3 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 40 |
| 4 | Support seat weldment | 27400113831 | 1 |
| 5 | Support seat weldment | 27400113851 | 1 |
| 6 | Adjusting shim | 27170117262 | 2 |
| 7 | Plate | 27170117511 | 2 |
| 8 | Plate | 27170117521 | 2 |
| 9 | Shim | 27400113781 | 2 |
| 10 | Shim | 27400113791 | 2 |
| 11 | Bolt GB5785-M16*1.5*80flZnyc-12.9-480 | 4011010592 | 20 |
| 12 | Bolt 5783-M20*1.5*40flZnyc-12.9-480 | 4011011452 | 12 |
