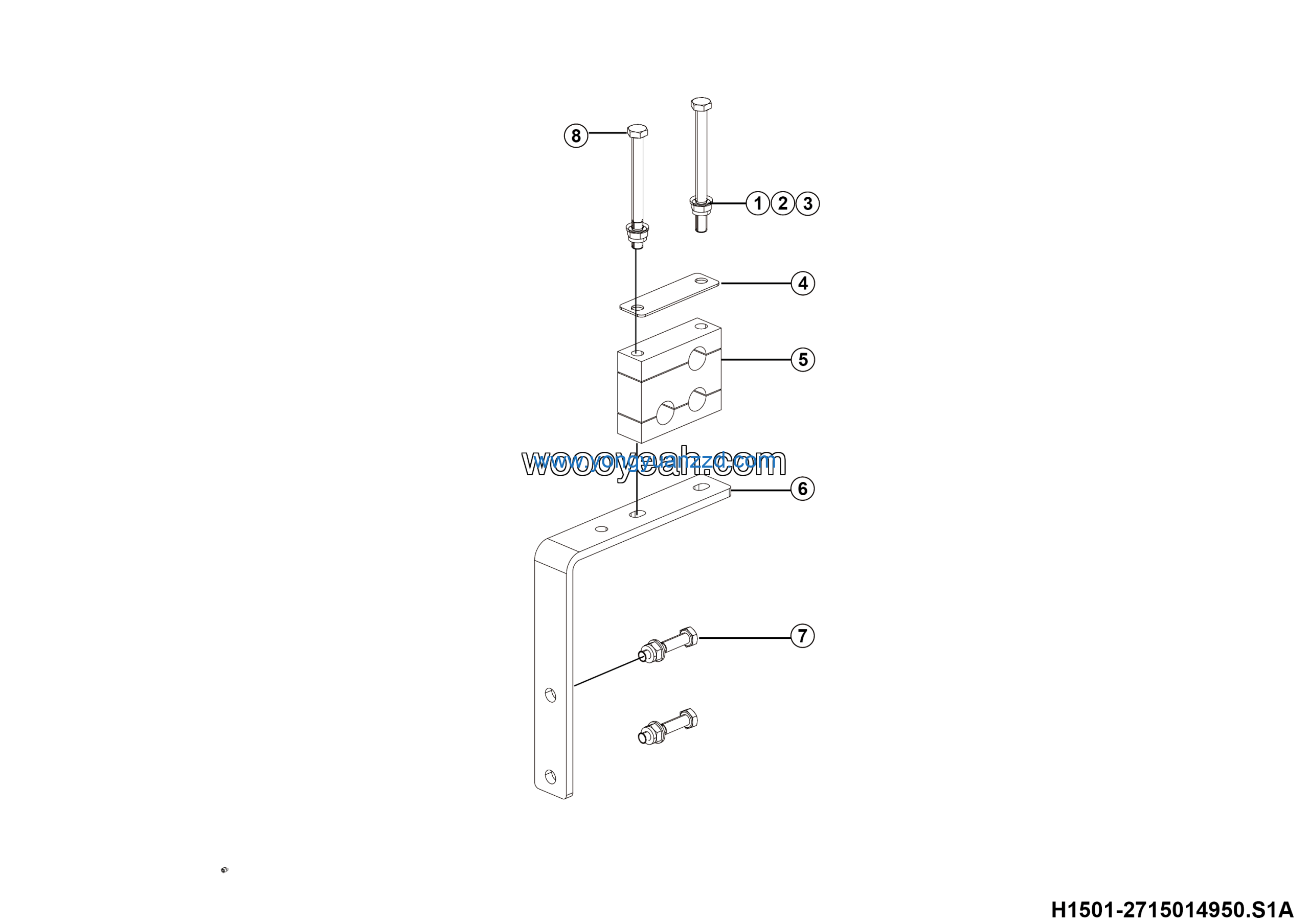

LGMG CMT96A 2025 – Bracket assy 01 – H1501-2715014950.S1A
Category: 2025 > CMT96A > C096AY3E0A007
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M10*120flZnyc-8.8-480 | 4011011686 | 1 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 3 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 4 | Plate 100*30*2 | 27150145081 | 1 |
| 5 | Clamp 3*22 | 27150145071 | 1 |
| 6 | Bracket 238*40*209 | 27150149061 | 1 |
| 7 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 2 |
| 8 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 1 |
