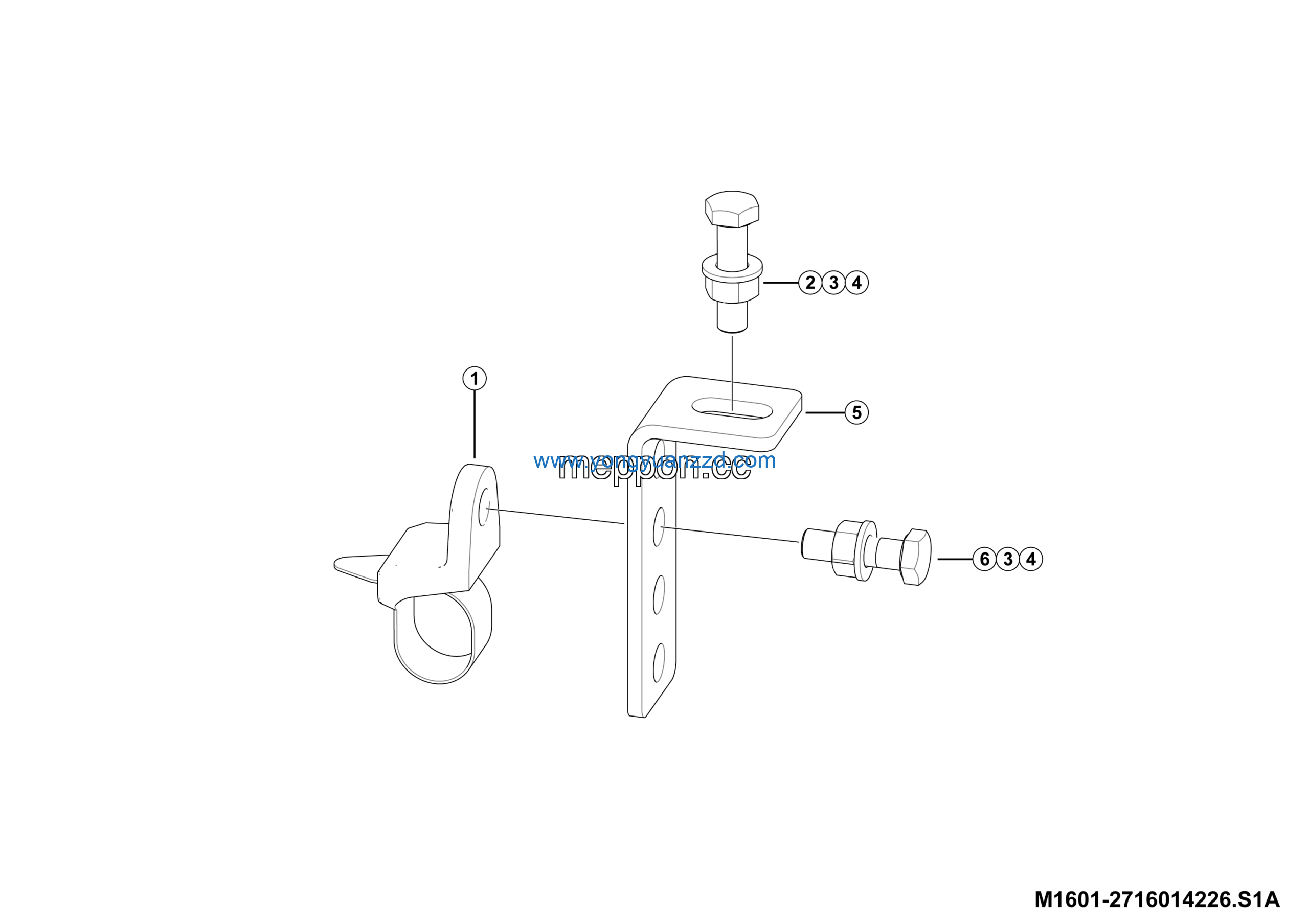

LGMG CMT96A 2025 – Bracket assy 01 – M1601-2716014226.S1A
Category: 2025 > CMT96A > C096AY3E0A005
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Cable tie HS-J117 | 4130704969 | 1 |
| 2 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 1 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 5 | Bracket 110*40*50 | 27150133221 | 1 |
| 6 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 1 |
