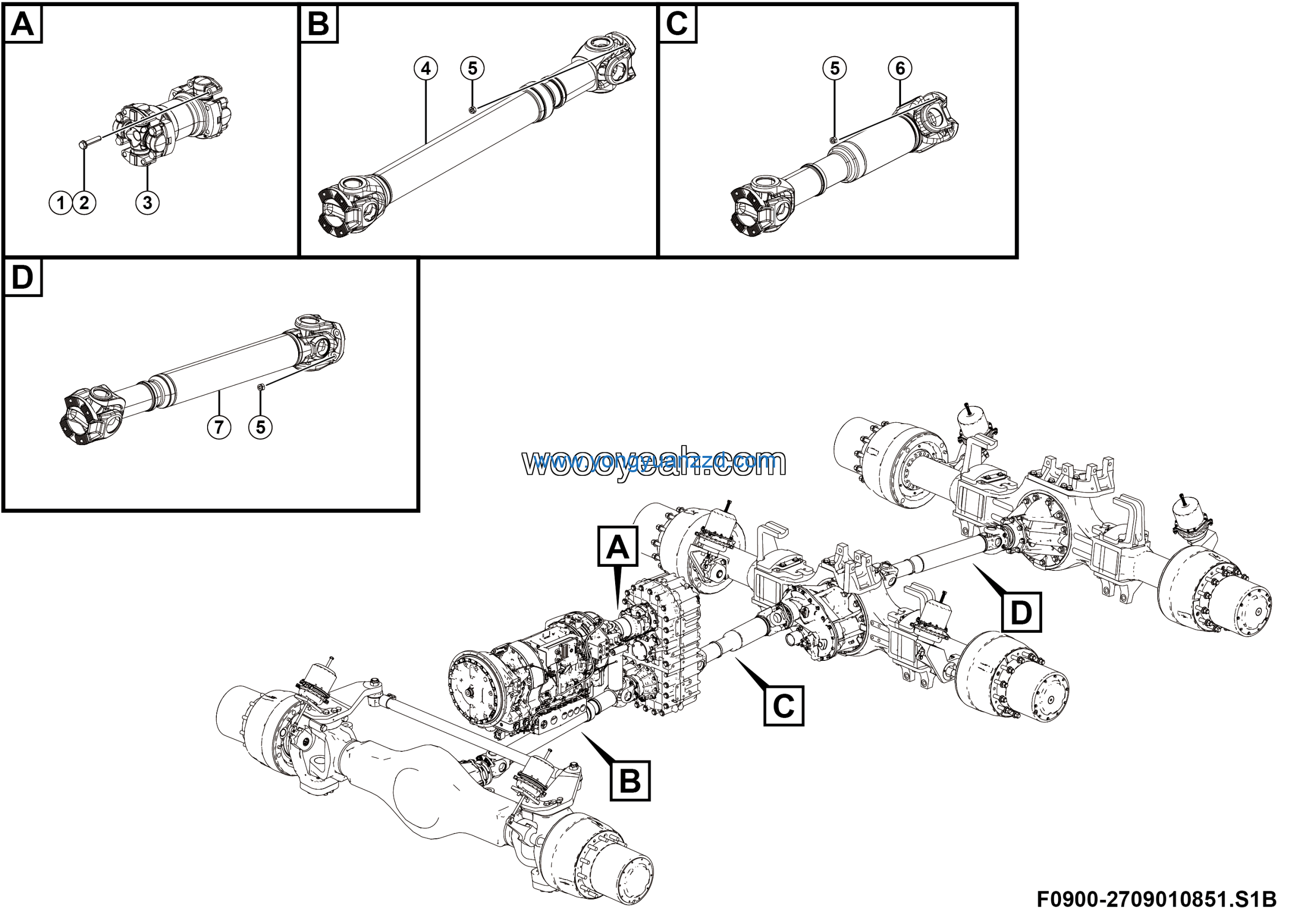

LGMG CMT96A 2025 – Drive shafts installation – F0900-2709010851.S1B
Category: 2025 > CMT96A > C096AY3E0A003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M16*80flZnyc-12.9-480 | 4011010568 | 8 |
| 2 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 8 |
| 3 | Front drive shaft lg09-qcdz-360 | 4110708316 | 1 |
| 4 | Front drive shaft lg09-qcdz-1460 | 4110708317 | 1 |
| 5 | Nut GB6185.2-M14*1.5flZnyc-12-480 | 4013010568 | 24 |
| 6 | Center drive shaft lg09-zcdz-1000 | 4110709854 | 1 |
| 7 | Rear drive shaft lg09-hcdz-1220 | 4110709855 | 1 |
