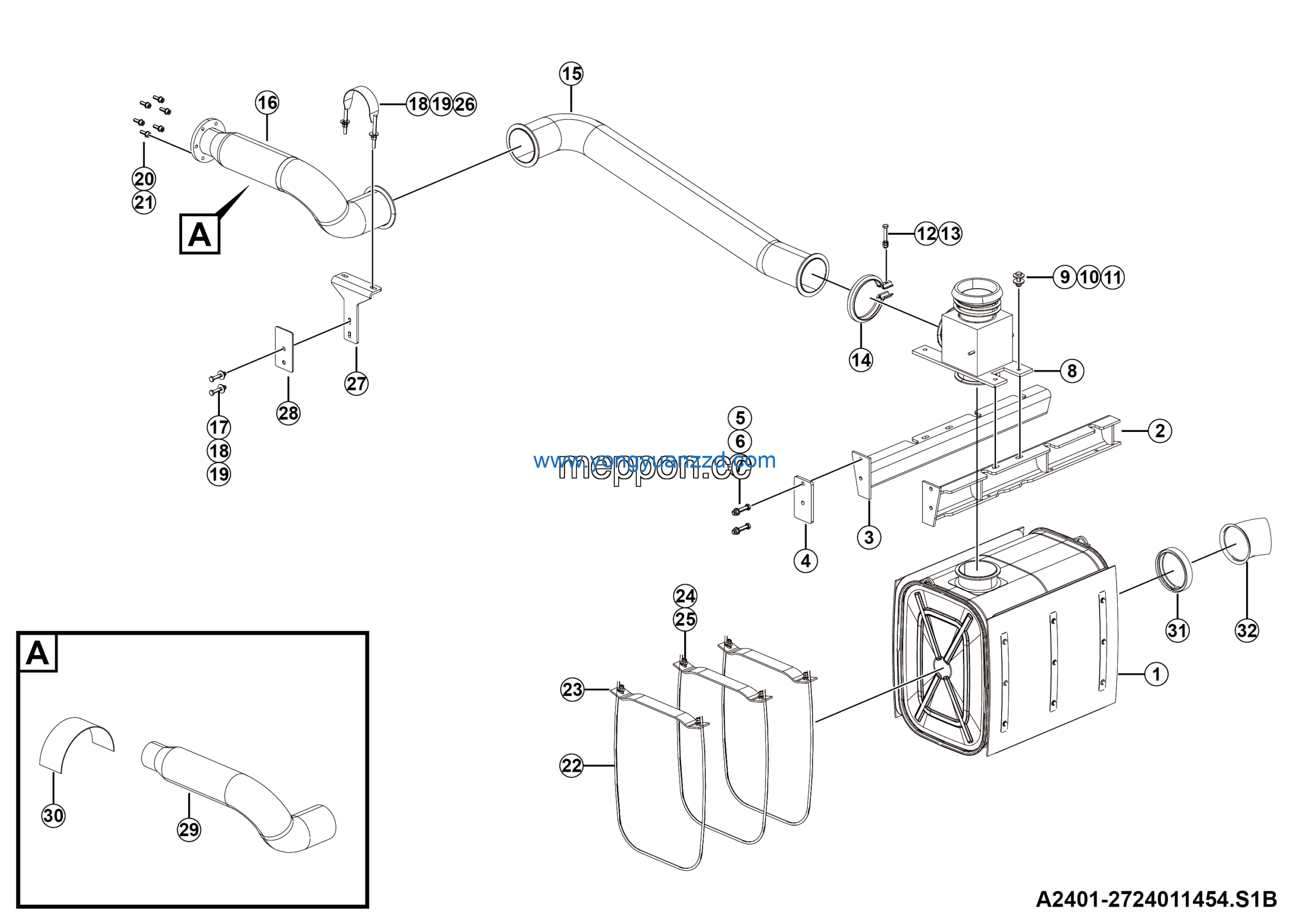

LGMG CMT96A 2025 – Exhaust & heating sys – A2401-2724011454.S1B
Category: 2025 > CMT96A > C096AY3E0A003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 2 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 3 | Bolt GB5783-M10*70EpZn-8.8 | 4011000413 | 3 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 10 |
| 5 | Clamp | 4110000768 | 3 |
| 6 | Lwr exhaust pipe wldmt | 27240114561 | 1 |
| 7 | Upr exhaust pipe wldmt | 27240114551 | 1 |
| 8 | Bolt GB5782-M10*60EpZn-8.8 | 4011000050 | 2 |
| 9 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 10 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 11 | Muffler assy lg24-xyq-02 | 4190713027 | 1 |
| 12 | Screw GB70.1-M10*30flZnyc-8.8-480 | 4014010441 | 6 |
| 13 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 6 |
| 14 | TENSIONING LEVER | 27010101611 | 3 |
| 15 | Plate | 27010110711 | 3 |
| 16 | Washer GB96.1-8EpZn-300HV | 4015000256 | 6 |
| 17 | Nut GB6170-M8EpZn-8 | 4013000033 | 12 |
| 18 | Plate | 27240103051 | 1 |
| 19 | Exhaust pipe support 205*180*60 | 27240111211 | 1 |
| 20 | PLATE | 27240102591 | 1 |
| 21 | Upr exhaust pipe heat insulation grm-lg-d120-820-w2 | 4190712988 | 1 |
| 22 | Lh bracket wldmt | 27240114591 | 1 |
| 23 | Charger cotton K16-1680D2 | 4190709606 | 1 |
| 24 | V-clamp lg24-xyq-01 | 4190713029 | 1 |
| 25 | Exhaust tail pipe lg24-xyq-01 | 4190713028 | 1 |
| 26 | Rh bracket wldmt | 27240114611 | 1 |
| 27 | Spacer 150*80*10 | 27240114571 | 1 |
| 28 | Bolt GB5783-M12*65flZnyc-10.9-480 | 4011011131 | 4 |
| 29 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 4 |
| 30 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 4 |
| 31 | Exhaust conversion box | 4190003584 | 1 |
| 32 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
