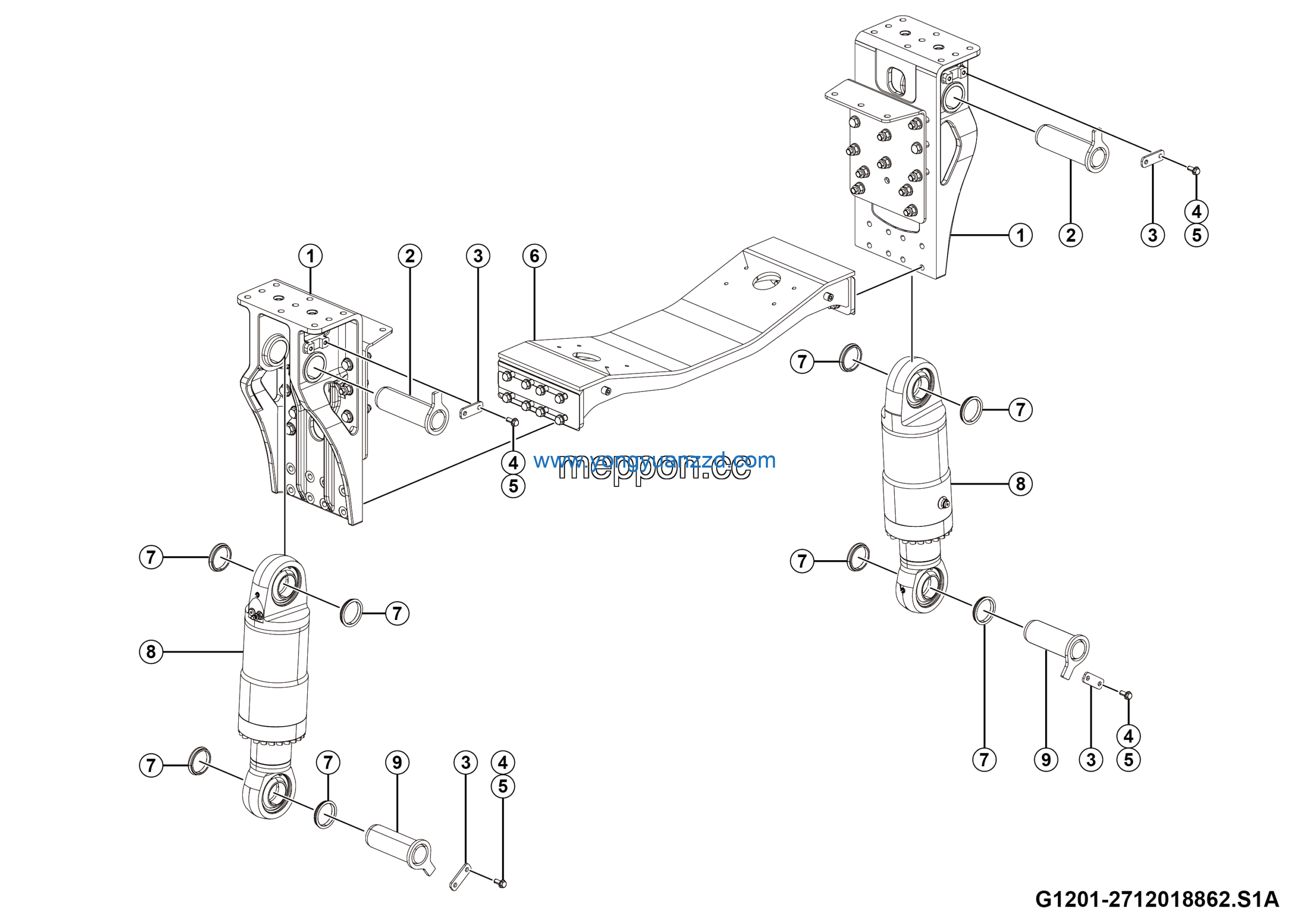

LGMG CMT96A 2025 – Front hydro-pneumatic suspension cylinder installation – G1201-2712018862.S1A
Category: 2025 > CMT96A > C096AY3E0A007
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hydro-pnenumatic spring mount assy | 27120184621 | 2 |
| 2 | Pin wldmt 70×220 | 27120183982 | 2 |
| 3 | Palte | 27120170641 | 4 |
| 4 | Bolt GB5783-M12*30flznyc-8.8-480 | 4011010978 | 8 |
| 5 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 8 |
| 6 | Hydro-pneumatic suspension cylinder lwr crossbeam assy | 27120188631 | 1 |
| 7 | Sleeve | 27120170631 | 8 |
| 8 | Hyd-pneumatic spring assy lg12-d130d160l190m800 | 4110707525 | 2 |
| 9 | Pin70*185 | 27120170611 | 2 |
