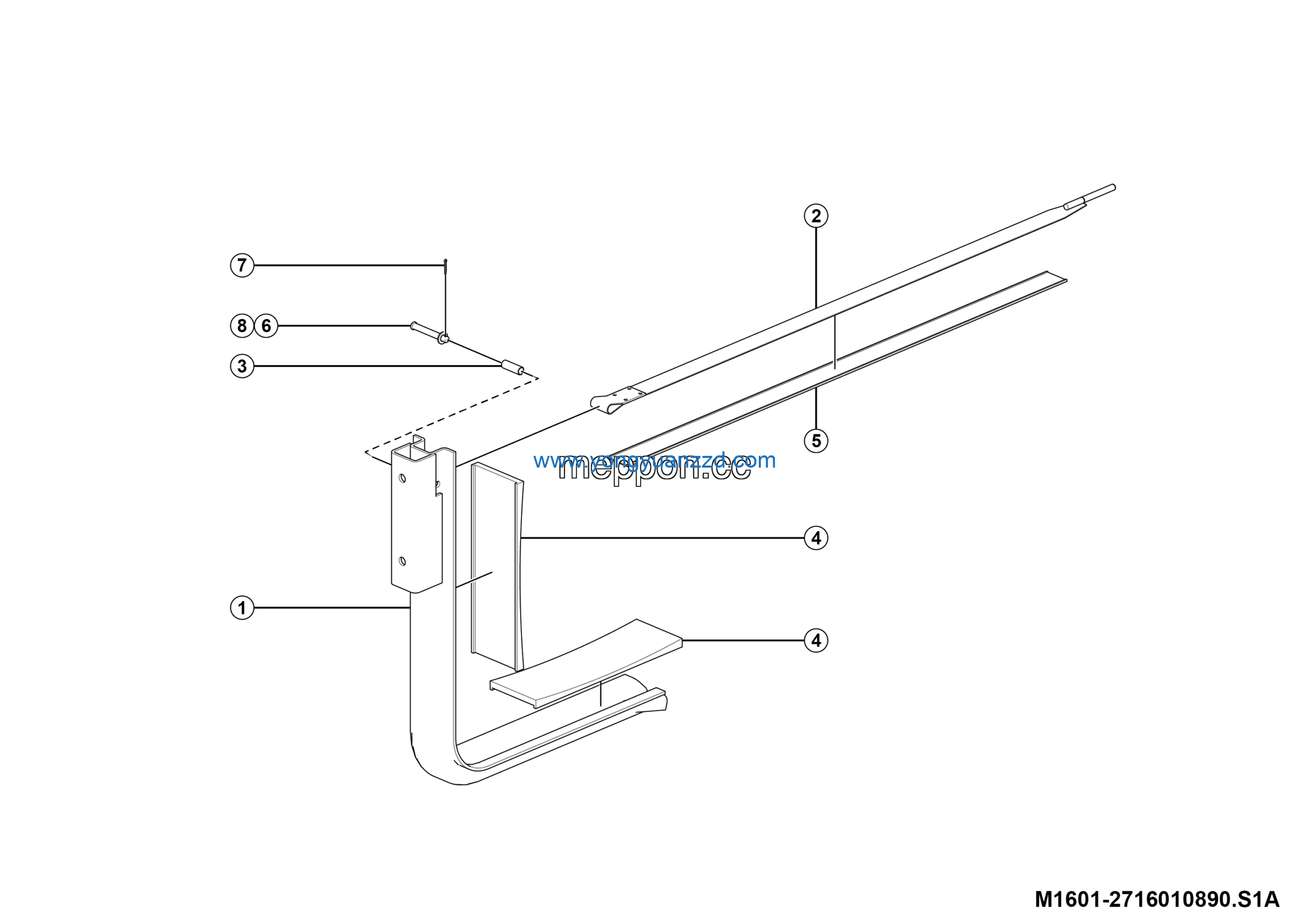

LGMG MT106H 2025 – Hydraulic oil tank bracket assembly – M1601-2716010890.S1A
Category: 2025 > MT106H > M106HW3A0M809
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hydraulic oil tank bracket | 27160115781 | 1 |
| 2 | Band assembly | 27160108891 | 1 |
| 3 | Fuel tank tie spacer sheath | 4110000969 | 1 |
| 4 | Flap | 4110000122 | 2 |
| 5 | Rubber belt | 27160108881 | 1 |
| 6 | Pin GB882-B12*90EpZn-35 | 4016000297 | 1 |
| 7 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 1 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
