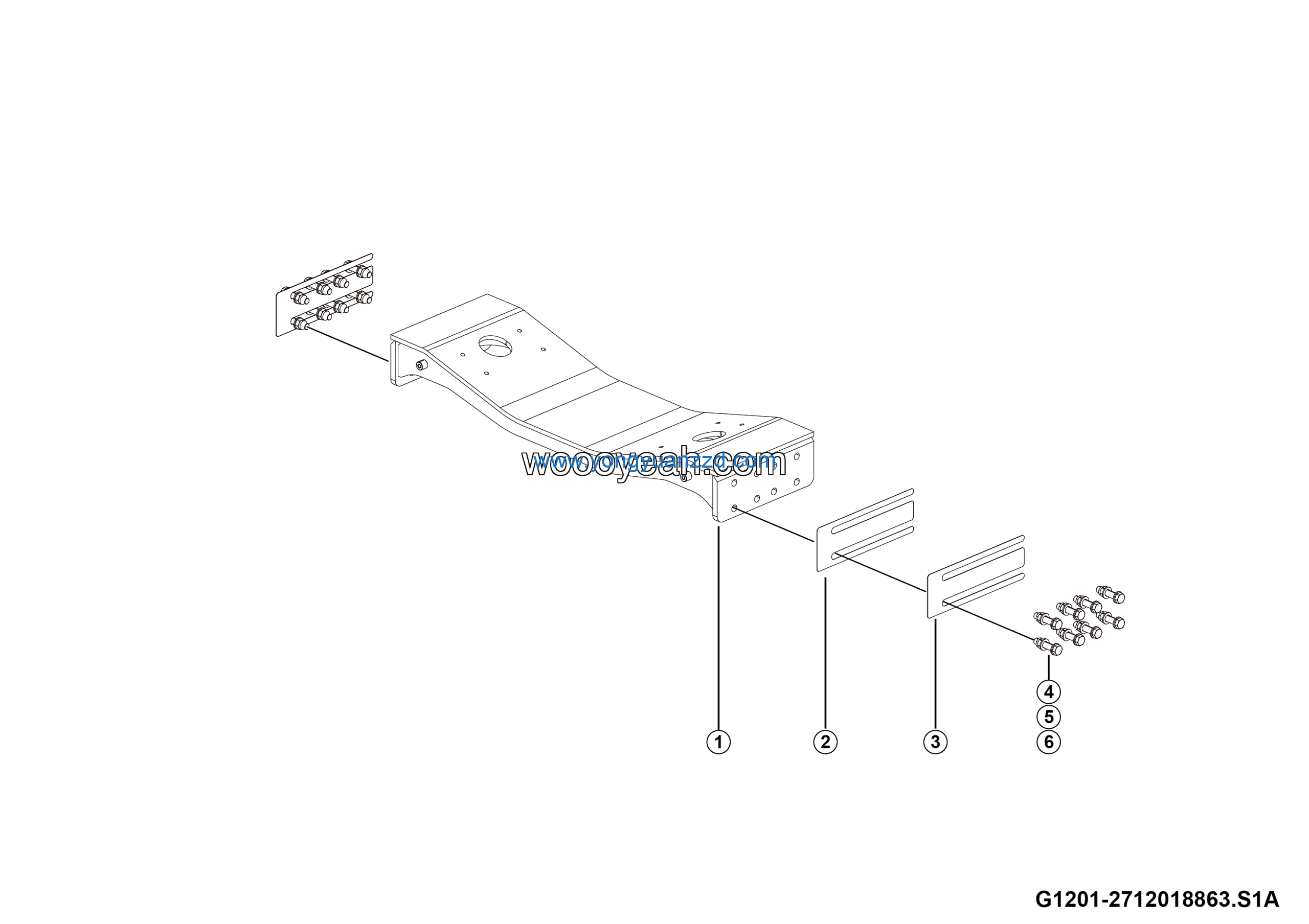

LGMG CMT96A 2025 – Hydro-pneumatic suspension cylinder lwr crossbeam assy – G1201-2712018863.S1A
Category: 2025 > CMT96A > C096AY3E0A008
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hydro-pneumatic suspension cylinder lwr crossbeam wldmt | 27120188641 | 1 |
| 2 | Shim 340*120*1 | 27120184001 | 2 |
| 3 | Shim 340*120*0.5 | 27120184011 | 2 |
| 4 | Bolt GB5785-M16*1.5*65flZnyc-12.9-480 | 4011010698 | 16 |
| 5 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 32 |
| 6 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 16 |
