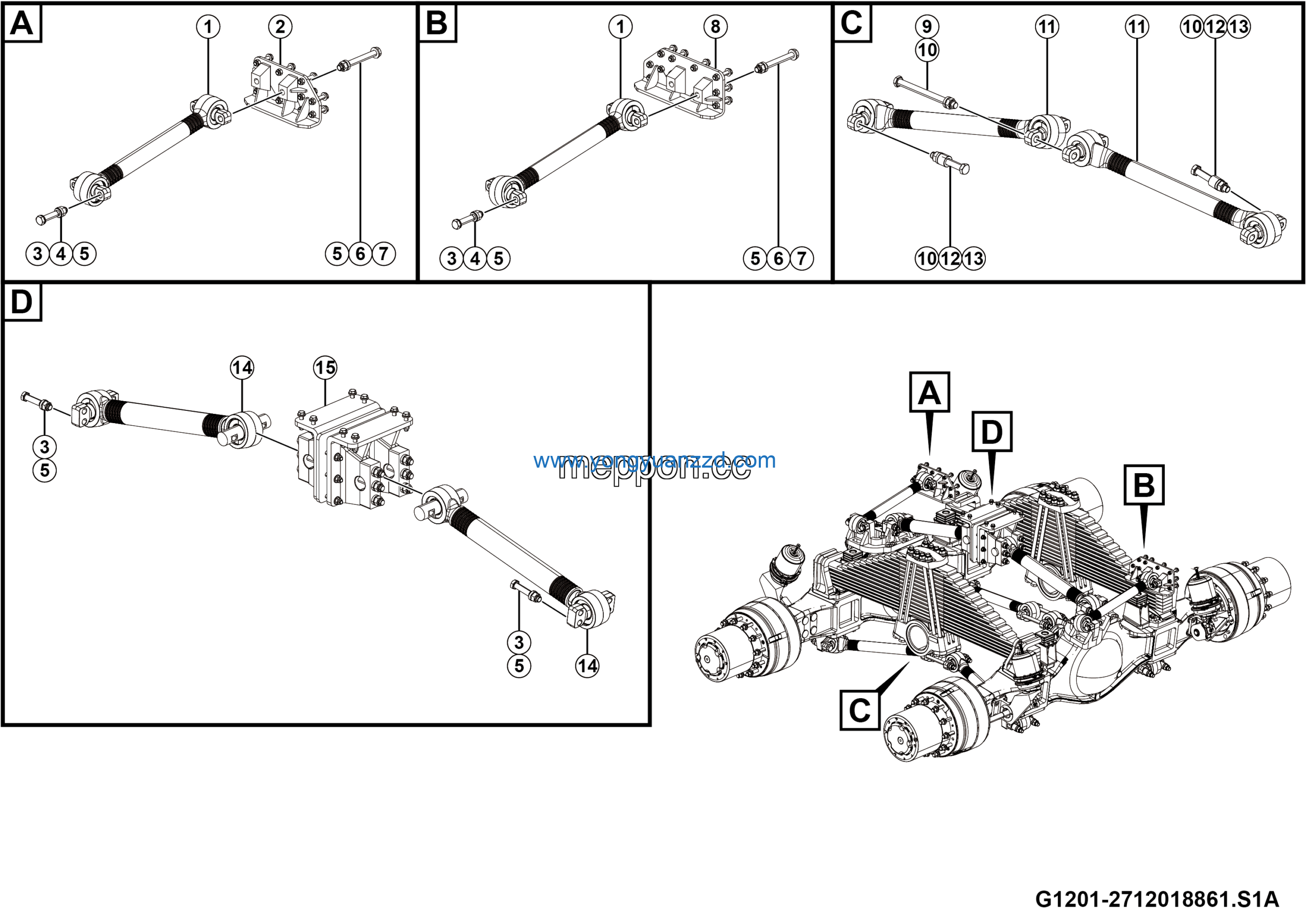

LGMG CMT96A 2025 – Rear torque rod installation – G1201-2712018861.S1A
Category: 2025 > CMT96A > C096AY3E0A007
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hexangular self-locking nut with the shoulder M27 | 27120103881 | 12 |
| 2 | Lwr torque rod assy lg12-l897d76*170m27b40p | 4110709657 | 4 |
| 3 | Bolt GB5782-M27*180flZnyc-12.9-480 | 4011010563 | 8 |
| 4 | Spacer sleeve | 27120105031 | 8 |
| 5 | Upr torque rod assy lg12-l925d95*170m24b45p | 4110709656 | 2 |
| 6 | Rear suspension upr torque rod mount assy | 27120184411 | 1 |
| 7 | Transverse thrust rod | 4110705693 | 2 |
| 8 | Seat assembly | 27120174581 | 1 |
| 9 | Bolt GB5782-M24*140-flZnyc-12.9-480 | 4011010760 | 12 |
| 10 | Lock washer NL24-G | 4190707582 | 8 |
| 11 | Self-locking nut with the shoulder | 27120103611 | 16 |
| 12 | BOLT GB5782-M24*215FLZNYC-12.9-480 | 4110001231 | 4 |
| 13 | Washer gb1230-24flznyc-45-480 | 4015010630 | 4 |
| 14 | Seat assembly | 27120174591 | 1 |
| 15 | Bolt M27*3*330-12.9 | 27120103721 | 4 |
